Palm Oil Expeller/Small Palm Oil Screw Press/palm Oil Mill/palm Kernel Oil Mill
- Qingdao
You May Like
-
Palm Oil Expeller Machine | Palm Oil Mill From Pam Fruit to Refined Palm Oil
-
Palm Kernel Oil Expeller/Small Palm Oil Screw Press/palm Oil Mill/palm Kernel Oil Mill
-
Palm Oil Milling Machine | Small Palm Oil Screw Press Hot in Africa
-
Palm Oil Sterilizer/Small Palm Oil Screw Press/palm Oil Mill/palm Kernel Oil Mill
-
Palm Kernel Oil Mill Machine to Make Refined Palm Kernel Oil
-
Palm Kernel Expeller Machine/Small Palm Oil Screw Press/palm Oil Mill/palm Kernel Oil Mill
Product Details
| Condition | New | Usage | Palm Oil | |
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 100% | Brand Name | Doing Brand | |
| Model Number | whole or parts of palm oil processing machine | Voltage | 380V | |
| Power(W) | according to capacity | Dimension(L*W*H) | various with capacity | |
| Weight | various with capacity | Certification | CE and ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Palm Oil Screw Press Machine

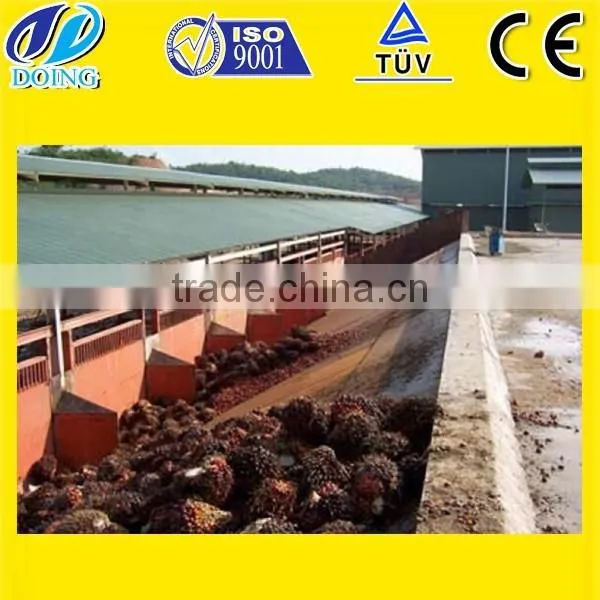

1. Raw materials storage section: Fresh palm fruit bunch must be first measurement recorded by the pound into the plant, then unloaded to loaded fruit slopes and stored.

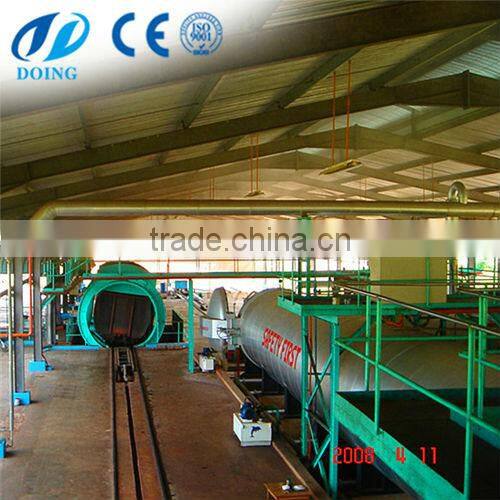

2. Sterilizing section: fresh palm fruit bunch are airtight sterilized in sterilizer. The purpose to prevent enzymes broken down.
3. Threshing section: The purpose of threshing is the oil palm fruit be separated from the fruit bunch.

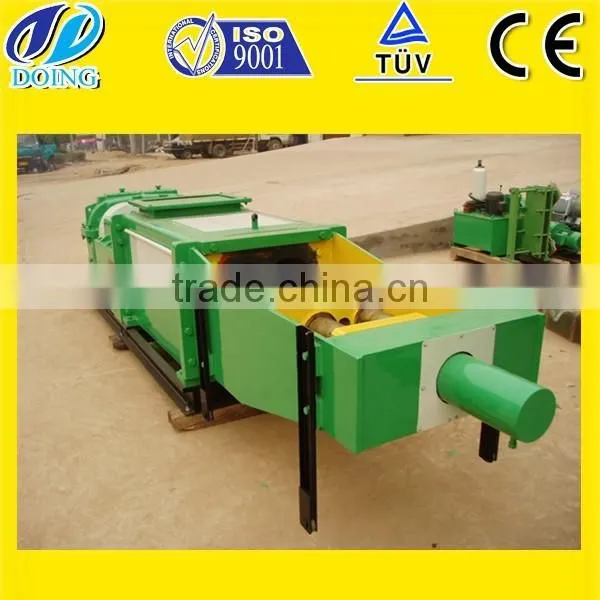

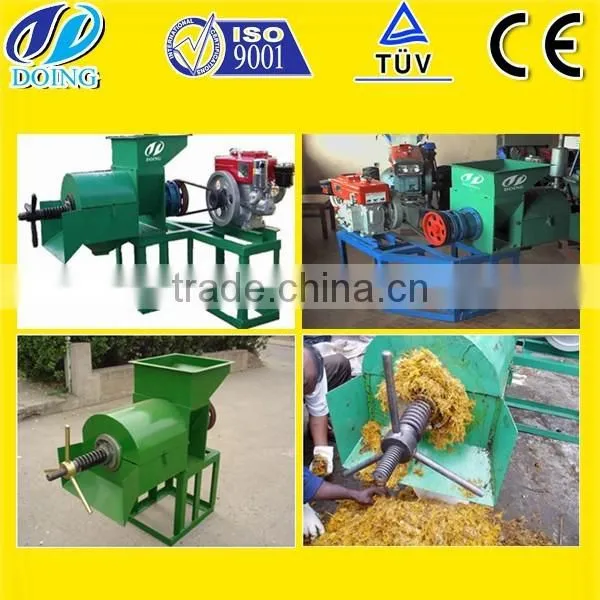

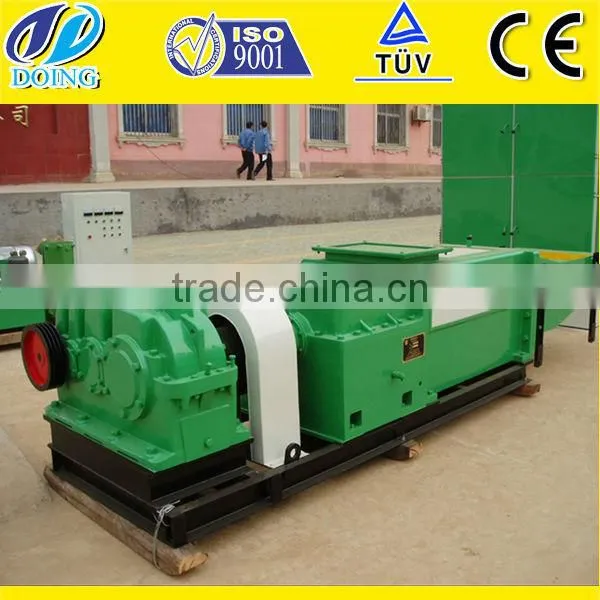

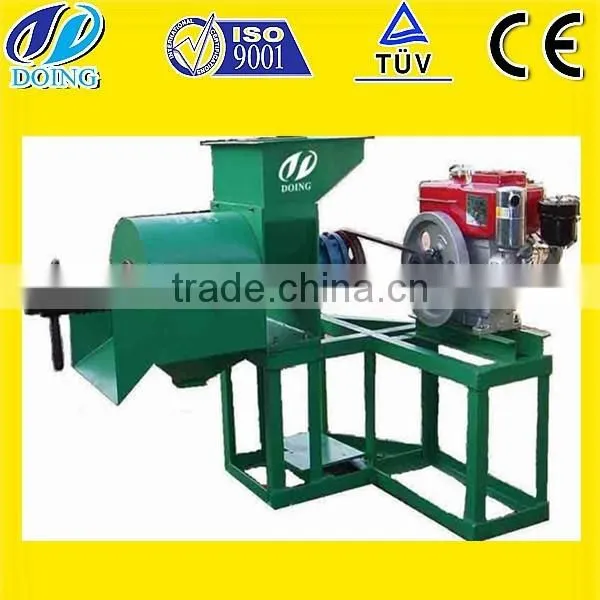

4. Pressing section: To get the crude palm oil from the palm fruit.
5. Clarification section: Machine-pressed crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts: oil and sediment.
6. Finished oil storage and transportation section: To store the finished oil.
7. Fiber separation section: Press cake broken by breaking screw conveyor and then transported into the fiber separation air net for fiber separating.
8. Kernel recovery section: Separating the kernel from the palm meal.
9. Sewage treatment section: If there is high requirement of the waste water, we need this section to treat the waste water.
the specification of crude palm oil
Item | Standard |
Smell and taste | The original smell and taste of palm oil |
Moisture and volatile matter (%) ≤ | 0.20 |
Insoluble impurities (%) ≤ | 0.20 |
Acid value (mgKOH/g) ≤ | 4.0 |
Peroxide value (mmol/kg) ≤ | 7.5 |
the specification of refined palm oil
Item | Standard |
Color (Lovibond Cell 133.4mm) ≤ | R3.5 Y35 |
Smell and taste ≤ | No smell and good taste |
Transparence ≤ | Clear and transparent |
Moisture and volatile matter (%) ≤ | 0.05 |
Insoluble impurities (%) ≤ | 0.05 |
Acid value (mgKOH/g) ≤ | 0.20 |
Peroxide value (mmol/kg) ≤ | 5.0 |
Smoke point (°C) ≥ | 215 |
