Palm Kernel Nut Oil Expeller, Edible Oil Manufacturing Plant,palm Kernel Oil Plant

1. Craft flow for palm kernel nut oil expeller

palm kernel →Magnitic seperating( Metal impurities)→cleaning →husking→ flaking roll→Cooking →pressing-Workshop

Main Equipments:

1. palm kernel : It’s one of main oil seeds from human. It’s used to make palm kernel around the world.

  The oil content in palm kernel is about 50%.

2. Magnetic box: Clearing the iron impurity which might be in the palm kernel . The iron impurity will be harmful to the following machines, so we need take the iron impurities out.

3. Cleaning: This parts have different size cleaning sieves to clean the different impurities. After going through this part, most of the impurities are moved from palm kernel .

4. husking:this can help improve the oil yield from palm kernel,and reduce wear to the machine.

5. flaking:  It is the process of making use of the mechanical action to flake the palm kernel  into flakiness. After flaking, the materials is becoming thiner thank before, it is good for absorb moisture and heat in cooking process , and it is much easier for getting palm kernel oil in the oil press process.

6. Cooker: This machine can adjust the water content of the palm kernel . It’s also good for the press and oil extraction section.

2.Craft flow for pressing of  palm kernel nut oil expeller

Press: The press machine is used to take oil out of the  palm kernel .

After pressing,we can get crude palm kernel oil,and the oil residual in the cake is about 5-7%.

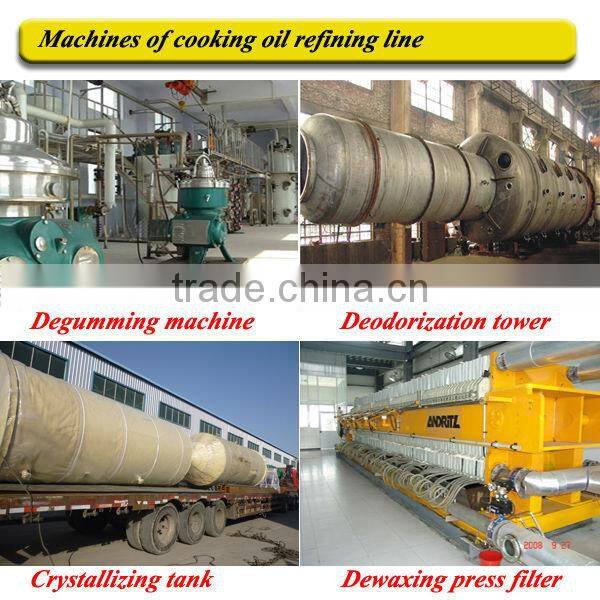

3. Craft flow for refinery of palm kernel nut oil expeller

Crude palm kernel oil → degumming and deacidification→ decolorization →deodorization → refined  palm kernel oil.

Main Process: 1. Degumming and deacidification: The gumming is moved by phosphoric acid and hot water. There are two ways to move the acid in the palm kernel oil.

One is chemical way, the other one is physical way. The chemical way is using NaOH to react with acid. This way is suitable for the capacity of 5-30T per day. The physical way is using steam and centrifugal to move the acid. This way is used for capacity from 30-2000T per day.

2. Decolorization: This step is used to adjust the color of the oil. You can control the color of the palm kernel oil according to the requirement of your market.

3. Deodorization: The function of this step is to move the special smell in the oil. This is an important standard for refined palm kernel oil.

the specification of crude palm kernel oil

the specification of refined  palm kernel oil
