Linear Vibrating Screen Used in Separating Stone

Linear Vibrating Screen Used in Separating Stone thumbnail-1
Linear Vibrating Screen Used in Separating Stone thumbnail-2
Linear Vibrating Screen Used in Separating Stone thumbnail-3
Linear Vibrating Screen Used in Separating Stone thumbnail-4
Linear Vibrating Screen Used in Separating Stone thumbnail-5
Linear Vibrating Screen Used in Separating Stone thumbnail-6
Linear Vibrating Screen Used in Separating Stone photo-1
Linear Vibrating Screen Used in Separating Stone photo-2
Linear Vibrating Screen Used in Separating Stone photo-3
Linear Vibrating Screen Used in Separating Stone photo-4
Linear Vibrating Screen Used in Separating Stone photo-5

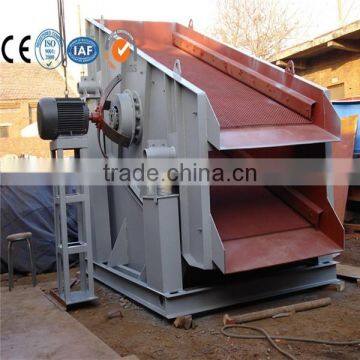

Linear Vibrating Screen Used in Separating Stone photo-6
US$ 3,000 - 62,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Circular, vibrating screen
Application:
Other, classification in mining
Contact Supplier Request Quote Chat Now
Henan Dafu Mechanical Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
lianyungang qingdao tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Circular, vibrating screen
Application Other, classification in mining
Place of Origin Henan, China
Brand Name Dafu
Model Number 2YZSserizes
Voltage 220V/380V
Power(W) 11kw-30kw
Dimension(L*W*H) 1660*1200*1060
Weight 3600kg- 17000kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Linear vibrating screen used in separating stone

Product Description

 Introduction

 vibrating screen plant is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.

    Features and Benefits of Vibrating Screen plant:
It features long flowing line, many screening specifications, strong violent vibration force, high screening efficiency, small vibrating noises, firm and durable construction, convenient maintenance and safe operation.
Operating Principle of Vibrating Screen plant:
It adjusts the amplitude by tube-shaped violent vibration screen of eccentricshaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.

Specifications of Vibrating Screen
Model Screen size (mm) No. of Layer Screen mesh (mm) Max. feed size(mm) Handling capacity (t/h) Motor power (Kw) Vibrating frequency (r/min) Double swing(mm)
2YZS1237 3700×1200 2 3-100 400 10-80 11 750-950 5-9
3YZS1237 3700×1200 3 3-100 400 10-80 11 750-950 5-9
2YZS1548 4800×1500 2 3-100 400 30-200 15 750-950 5-9
3YZS1548 4800×1500 3 3-100 400 30-200 15 750-950 5-9
2YZS1848 4800×1800 2 3-100 400 50-250 18.5 750-950 5-9
3YZS1848 4800×1800 3 3-100 400 50-250 18.5 750-950 5-9
4YZS1848 4800×1800 4 3-100 400 50-250 18.5 750-950 5-9
2YZS1860 6000×1800 2 3-100 400 65-586 22 750-950 5-9
3YZS1860 6000×1800 3 3-100 400 65-586 22 750-950 5-9
4YZS1860 6000×1800 4 3-100 400 65-586 22 750-950 5-9
2YZS2160 6000×2100 2 3-100 400 81-720 30 700-900 5-9
3YZS2160 6000×2100 3 3-100 400 81-720 30 700-900 5-9
4YZS2160 6000×2100 4 3-100 400 81-720 30 700-900 5-9
2YZS2460 6000×2400 2 3-150 400 100-500 30 700-900 5-9

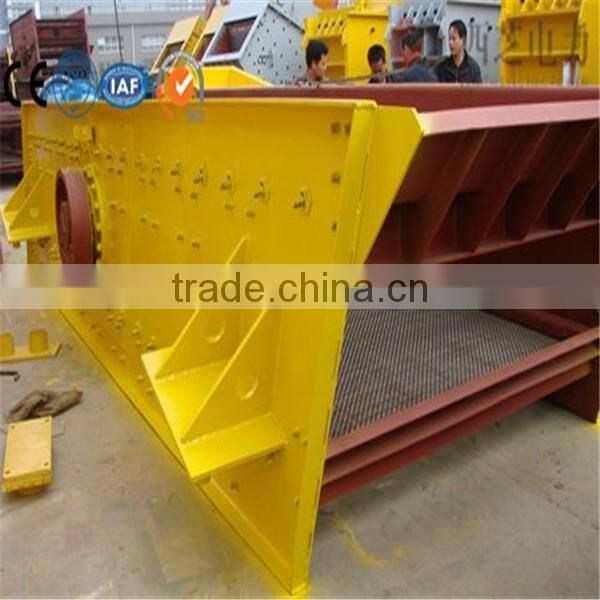

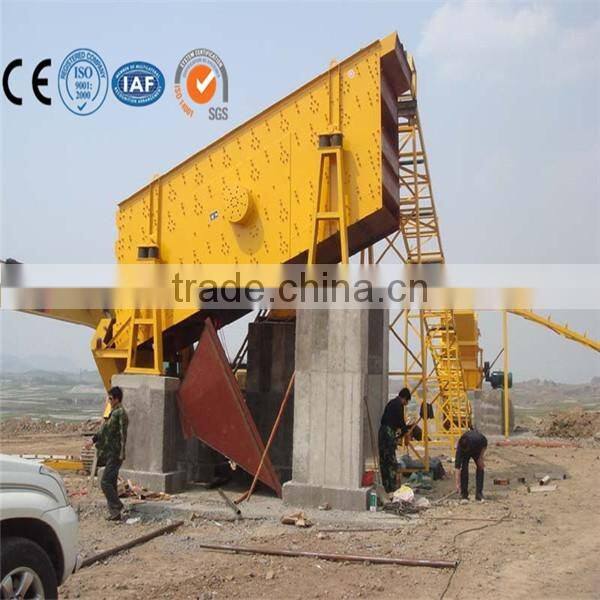

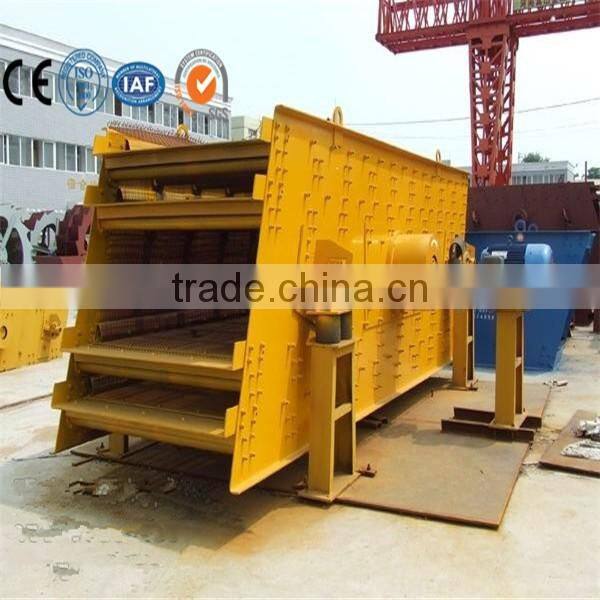

 Linear vibrating screen used in separating stoneLinear vibrating screen used in separating stoneLinear vibrating screen used in separating stone

contact us

If you are interested in themachineryby us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!
