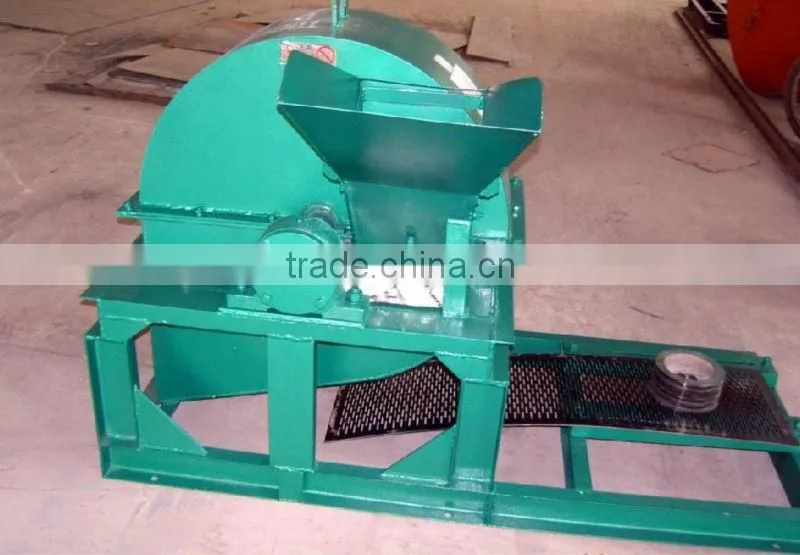

Help CenterSmall Tree Branch Crusher
Related Products
-
2013 Best Selling Wood Chips Producing MachineUS$ 1,800 - 6,600MOQ: 1 Set -
2013 Small Type Machine Sawdust Mill With Feed Opening 250mmUS$ 1,000 - 4,000MOQ: 1 Set
-
Professional Wood Chipping Machine ManufacturersUS$ 2,000 - 8,000MOQ: 1 Set
-
Branches and Trunks of Trees and Wood Waste CrusherUS$ 1,000 - 4,000MOQ: 1 Set
-
China Wood Crusher MachineUS$ 1,000 - 8,000MOQ: 1 Set
Specifications

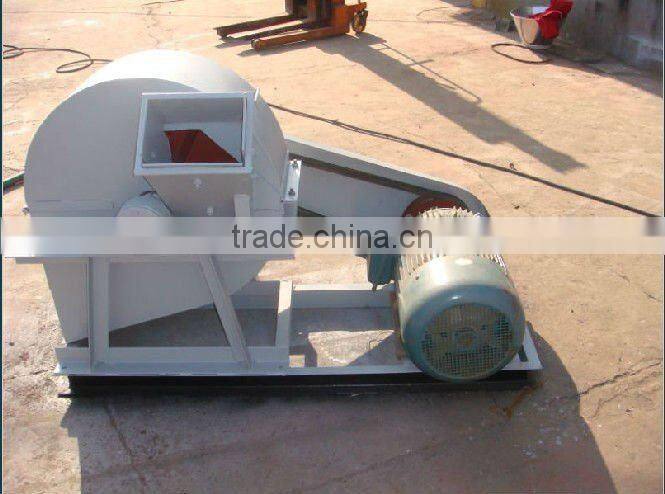

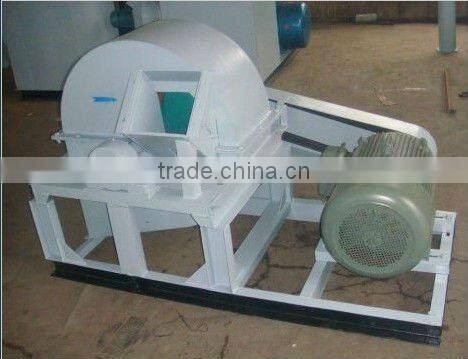

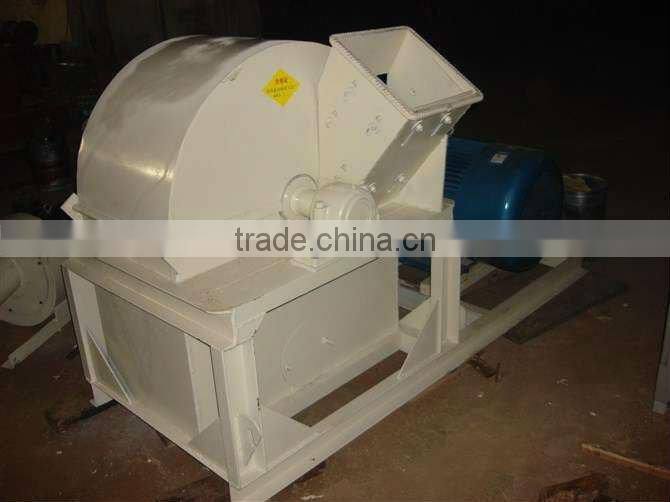

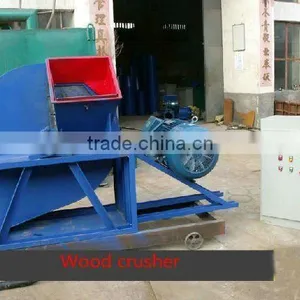

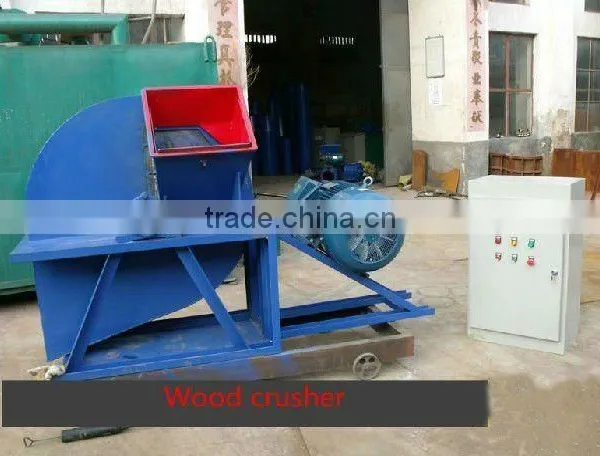

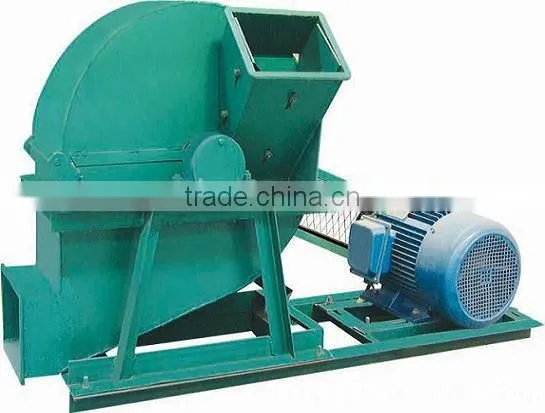

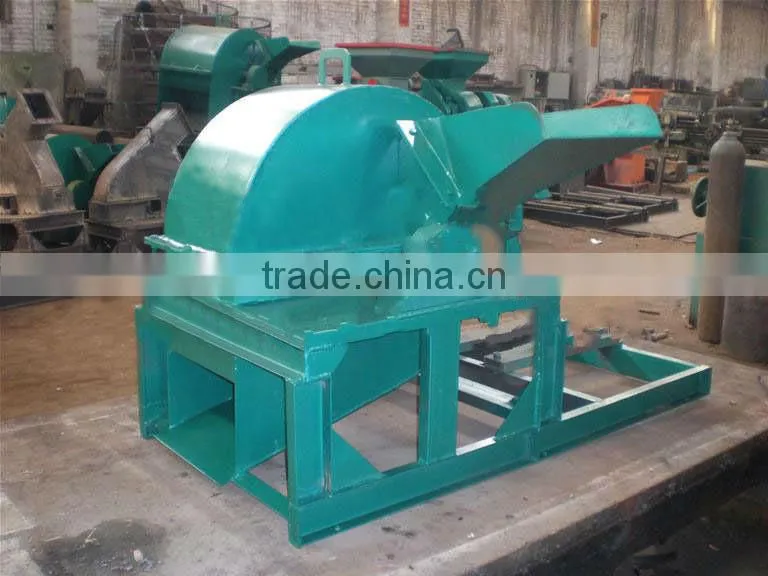

perfect combination of mobile hammer crusher &disc sawdust machine,output size can reach to 3-5mm diametermobile wood crusher
Multi-function sawdust Crusher machine/wood sawdust crusher machine
The technology of this Wood sawdust machine internally first, which is the perfect combination of mobile hammer crusher and disc sawdust machine,had merged the features of two kinds of equipment ,which making the machine more powerful and effective ,were widely used different lines at home and abroad.
Raw material

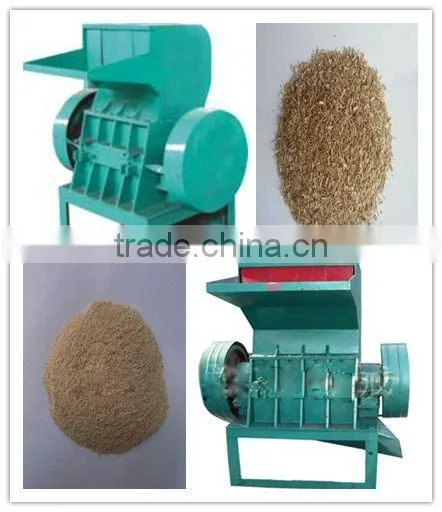

Wood branches wood chips rice straw,wheat straw ,corn straw, grass river reeds,palm husk
,soybeans husk coffee husk, paddy straw, sunflowers stalk ,bamboo and many other agro-waste ect .
Structure
It is composed of machine body ,knife chipping part ,chips re-crushing part and sieving part , ect .It combines both chipping and crush in one machine ,can make sawdust in one passage ,no need to use wood chipper for preprocessing of wood logs
Model of machine |
BX800 |
BX600 |
BX400 |
BX200 |
Diameter of cutter head(mm) |
800 |
600 |
400 |
400 |
Quantity/block of blade |
4-6 |
4 |
4 |
3 |
Length of blade(mm) |
230 |
200 |
125 |
125 |
Dimension of feeding opening(mm) |
250×230 |
250×200 |
144×150 |
144×150 |
Rotary speed of main shaft(r/min) |
2100 |
2600 |
2600 |
2600 |
Equipped force (kw) |
30 |
22-30 |
15-22 |
7.5-11 |
Output(kg/h) |
1000-1500 |
800-900 |
600-700 |
500-600 |
