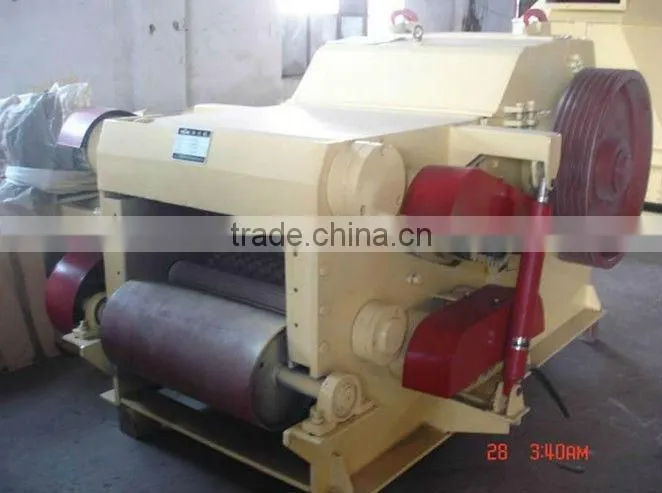

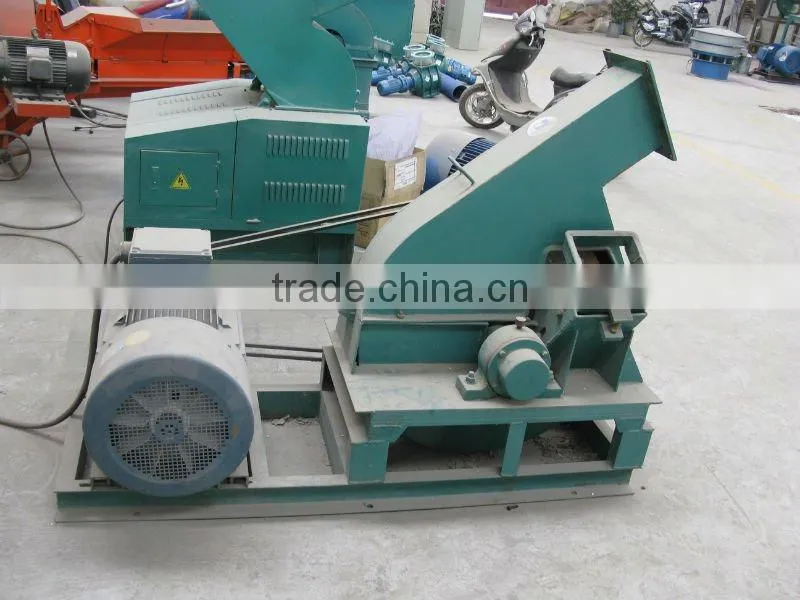

Forceful Wood Crusher Machine

Name: Forceful Wood Crusher Machine
Brand: China Dafu
SKU: 138008345

US$ 1 - 6 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

China Dafu

Model Number:

new type

Henan Dafu Mechanical Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name China Dafu

Model Number new type

Voltage 380V

Power(W) energy-saving

Certification CE ISO

Warranty 1 year

Specifications

It is applicable to all large-scale enterprisesplaces such as large-scale waste fields of agriculture,animal husbandry

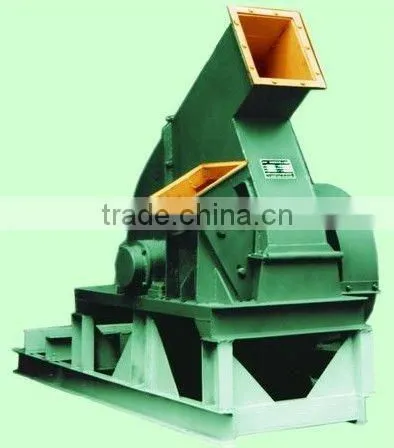

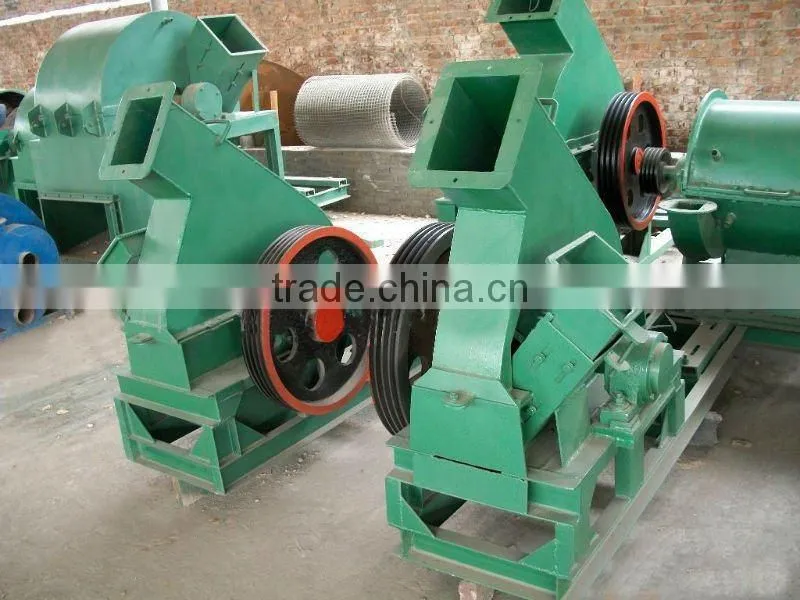

Disk Timber Chipping Machine

Timber Chiping Machine

Specifications of Disk Timber Chipping Machine

Mobel of machine	2L×640	2L×1000
Diameter of cutter head(mm)	640	1000
Rotary speed of cutter head(r/min)	970	740
Quantity(sheet) of fly cutter	6	6
Length of wood chip,thickness(mm)	15-35 2-3	15-35 3-7
Mode of feeding	Declination	Declination
Dimension of feeding opening(mm)	150×140	250×250
Productive Capacity (t/h)	3-5	5-8
Power of electric motor(kw)	37	75
Maximum diameter of cutting wood(mm)	100	200
Mode of discharging	Up	Up
Weight of complete machine (kg)	1192	3375
External dimension (length×width×height)	2002×1175×1360	2820×1838×1892

Notice: Any change of Timber Chipping Machine technical data shall not be advised additionally.

The final product from this two machine (Disk Timber Chipping Machine or Drum Chipping Machine) .

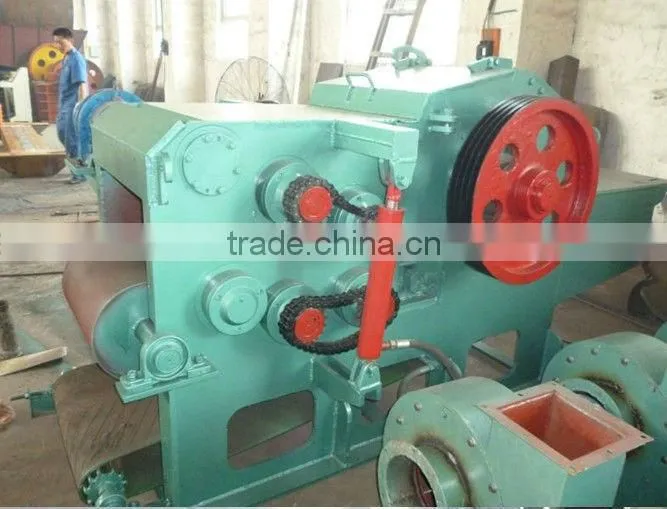

Drum Chipping Machine

Installation example for MINGLEI Drum Chipper - complete system from one supplier

Specifications of Drum Chipping Machine

Mobel of machine	BX213	BX215	BX216	BX218	BX2113
Diameter of cutter roller(mm)	300	500	650	800	1300
Quantity(sheet) of fly cutter (p)	2	2	2	2	3
Dimension of feeding opening (mm)	120×300	180×400	240×540	310×680	450×700
Rotary speed of cutter roller(r/min)	730	592	590	650	500
Feeding Speed (m/min)	38	38	38	35/37.38	38
Maximum diameter of cutting wood(mm)	90	160	200	300	450
Length of wood chip(mm)	26	35	35	35	38
Capacity (m3/h)	3-5	4-5	12	15-35	36-45
Power of main motor(kw)	30	45	55	110	220
Power of feeding roller moter (kw)	1.1×2	2.2×2	3×4 4×1	2×4	7.5×2
Weight(T)	1.2	2.9	4.07	7	11.2
External dimension (length×width×height) (mm)	3680×870 ×900	1540×1240 ×1020	1980×1950 ×1250	4670×2150 ×1500	3670×2448 ×2050
