Wood Chipper Machines With Diesel /electricity Motor

Wood Chipper Machines With Diesel /electricity Motor thumbnail-1
Wood Chipper Machines With Diesel /electricity Motor photo-1
US$ 1,800 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
China Dafu
Model Number:
Dafu
Contact Supplier Request Quote Chat Now
Henan Dafu Mechanical Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name China Dafu
Model Number Dafu

Specifications

Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc

Easy operation wood chipper machines

Disk Timber Chipping Machine
If you need Drum Chipping Machine, please click here.
Introduction of Disk Timber Chipping Machine :
Screw plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Timber Chiping Machine

Specifications of Disk Timber Chipping Machine
Mobel of machine 2L×640 2L×1000
Diameter of cutter head(mm) 640 1000
Rotary speed of cutter head(r/min) 970 740
Quantity(sheet) of fly cutter 6 6
Length of wood chip,thickness(mm) 15-35 2-3 15-35 3-7
Mode of feeding Declination Declination
Dimension of feeding opening(mm) 150×140 250×250
Productive Capacity (t/h) 3-5 5-8
Power of electric motor(kw) 37 75
Maximum diameter of cutting wood(mm) 100 200
Mode of discharging Up Up
Weight of complete machine (kg) 1192 3375
External dimension (length×width×height) 2002×1175×1360 2820×1838×1892
Notice: Any change of Timber Chipping Machine technical data shall not be advised additionally.

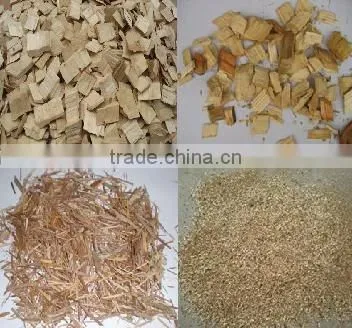

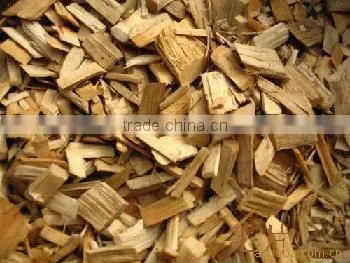

The final product from this two machine (Disk Timber Chipping Machine or Drum Chipping Machine) .


Drum Chipping Machine


Installation example for MINGLEI Drum Chipper - complete system from one supplier
Specifications of Drum Chipping Machine
Mobel of machine
BX213
BX215
BX216
BX218
BX2113
Diameter of cutter roller(mm)
300
500
650
800
1300
Quantity(sheet) of fly cutter (p)
2
2
2
2
3
Dimension of feeding opening (mm)
120×300
180×400
240×540
310×680
450×700
Rotary speed of cutter roller(r/min)
730
592
590
650
500
Feeding Speed (m/min)
38
38
38
35/37.38
38
Maximum diameter of cutting wood(mm)
90
160
200
300
450
Length of wood chip(mm)
26
35
35
35
38
Capacity (m3/h)
3-5
4-5
12
15-35
36-45
Power of main motor(kw)
30
45
55
110
220
Power of feeding roller moter (kw)
1.1×2
2.2×2
3×4 4×1
2×4
7.5×2
Weight(T)
1.2
2.9
4.07
7
11.2
External dimension (length×width×height) (mm)

3680×870
×900
1540×1240
×1020
1980×1950
×1250
4670×2150
×1500
3670×2448
×2050

Notice: Any change of Drum Chipping Machine(Drum Chipper) technical data shall not be advised additionally.
