Specifications
Food grade stainless steel materialHigh welding technical workmanship
CE and ISO9001 approved
Long lifetime
Can be customiz

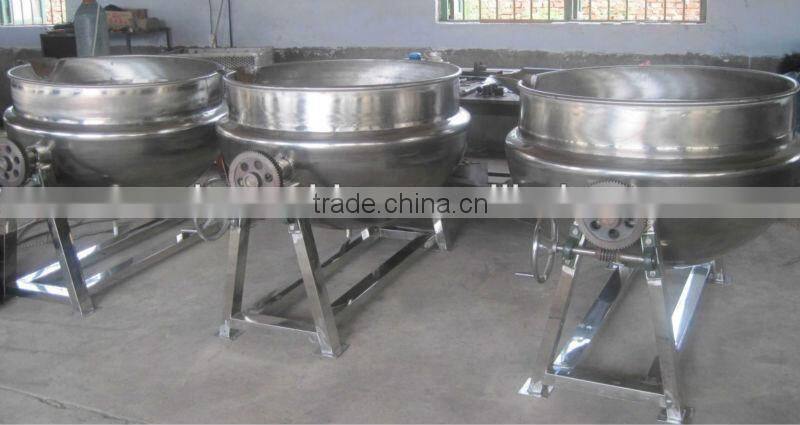

High quality jacket kettle
Specifications:

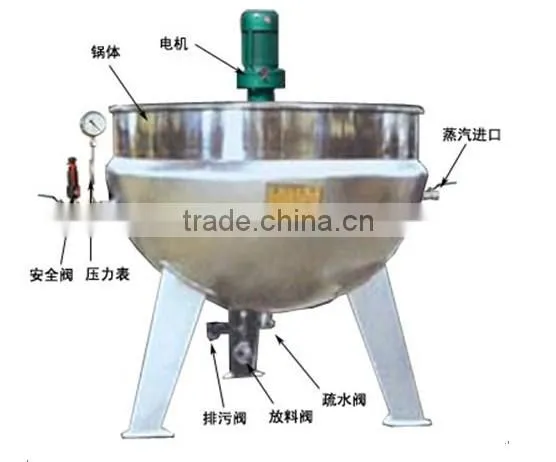

1) Consist of pan-body,jacket,frame, agitator etc.
2) Can be heated by gas, steam, electricity
3) Food grade stainless steel 304
4) Capacities: 50-1000L
Jacketed kettle & jacketed boiler:
This equipment is widely used in pharmacy, food and chemical industry for cooking, boiling or
concentrating according to your requirements. It has the hot steam and electrical heating sources.

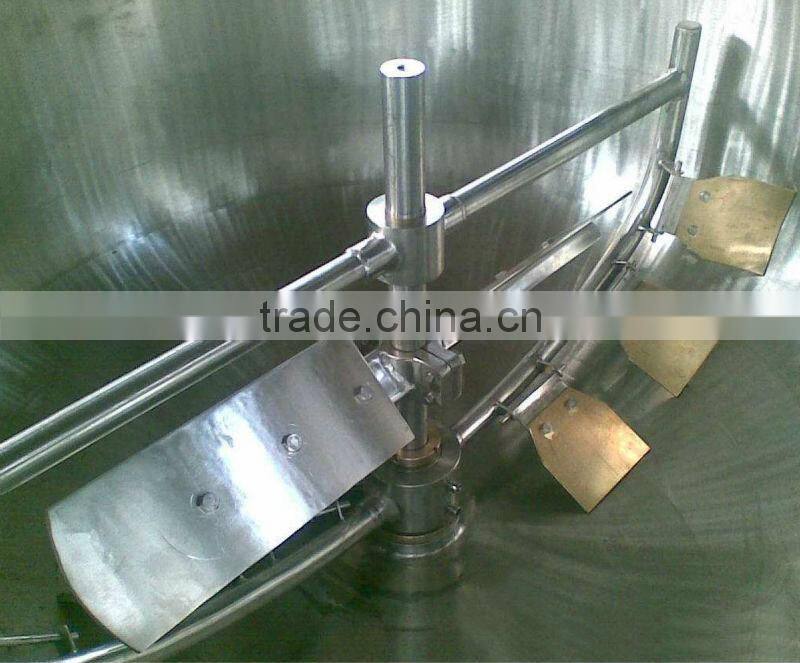

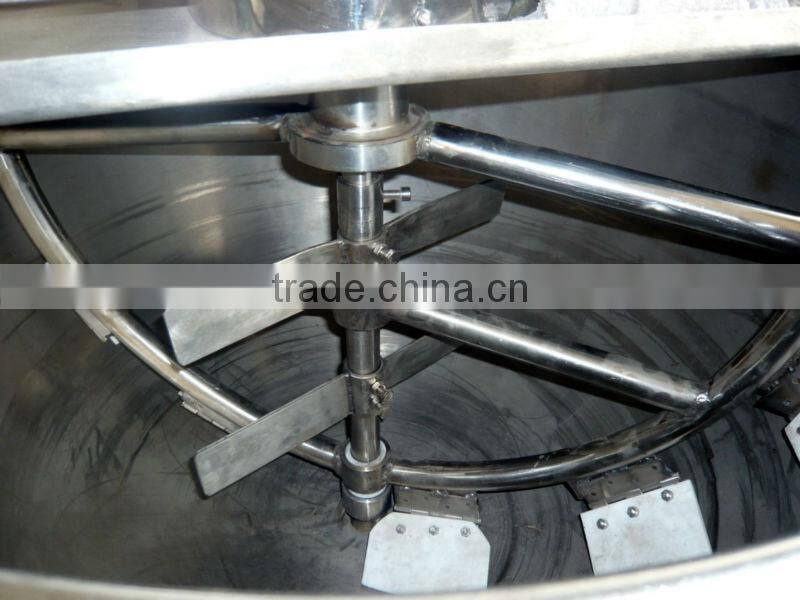

Besides it can be added with agitator and cover. All depends on clients. This equipment consist of

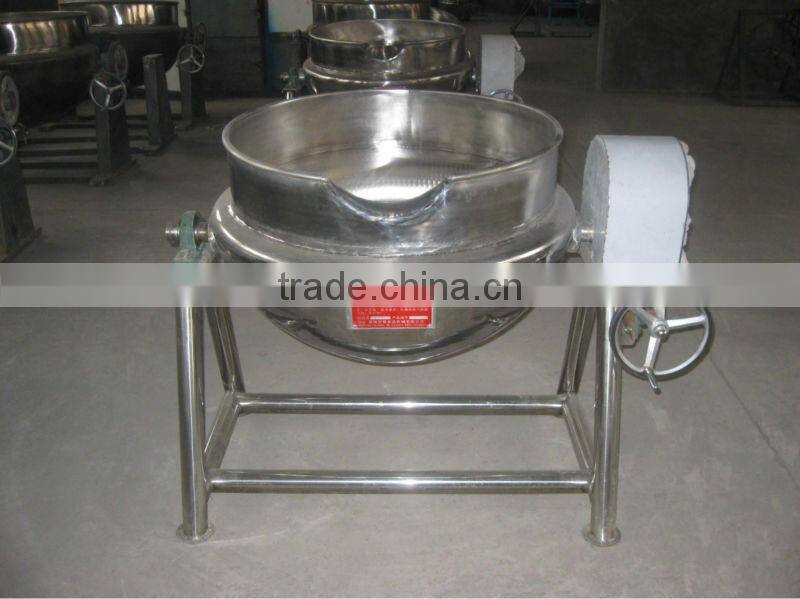

boiler body, stirring device, tilting system, worm wheel and worm rod. The boiler body can be rotated
within 180 degree. The material of the main part is food grade stainless steel 304 which is in accordance
with GMP standard. We can also make the jacketed kettle or jacketed boiler according to
your special demands.
Technology data:
|
WD50 |
WD100 |
WD150 |
WD200 |
WD300 |
WD400 |
WD500 |
|||||
Capacity(L) |
50 |
100 |
150 |
200 |
300 |
400 |
500 |
|||||
|
Jacketed pressure (Mpa) |
< 0.2 |
|||||||||||
|
Evaporation capacity (kg/h) |
30 |
40 |
50 |
65 |
75 |
100 |
150 |
|||||
|
Heat area (m 2) |
0.4 |
0.45 |
0.76 |
1.0 |
1.15 |
1.44 |
1.90 |
|||||
|
Energy consumption (kg/h) |
33 |
44 |
55 |
72 |
90 |
110 |
165 |
|||||
|
N.W. (kg) |
170 |
190 |
210 |
230 |
320 |
360 |
485 |
|||||
|
L×W×H (mm) |
720X600X830 |
800X650X830 |
1350X650X1100 |
1400X700X1100 |
1450X800X1110 |
1500X850X1140 |
1600X900X1150 |
|||||
