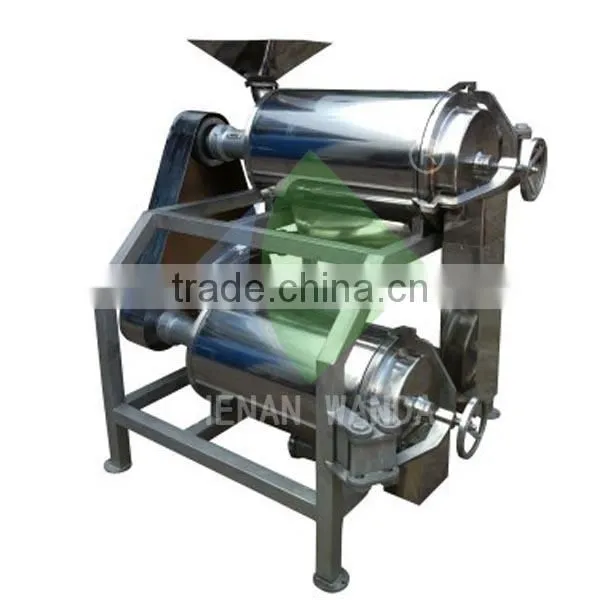

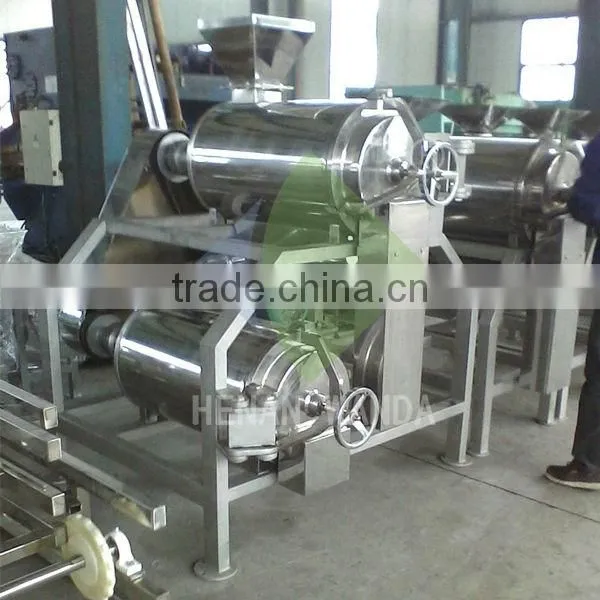

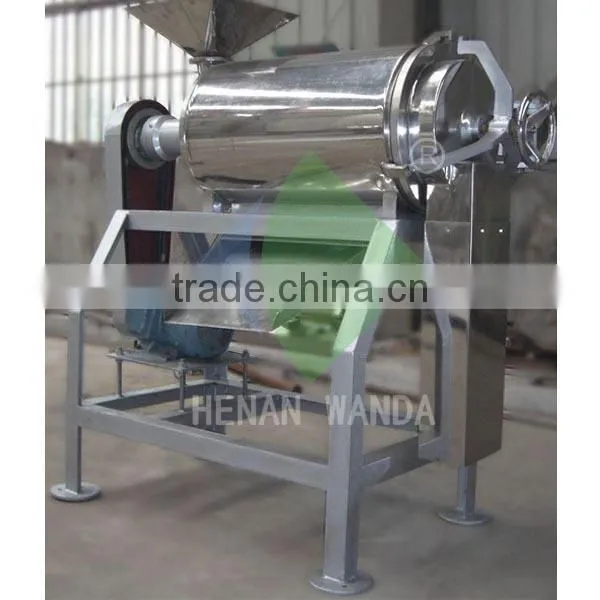

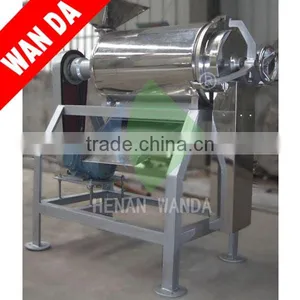

Fruit pulp processing machine / pulp making machine
1.Application of the tomato pulp machinery :
This machine is widely used in fruit and vegetable pulping.For the fruit, such as: orange, grapes, kiwi fruit, meat, red bayberry, peach (to core), a result, the sauce, stone fruit seed, skin can be separated, for the vegetables (tomato, pepper, cut off), celery (cut), a vegetable juice, vegetable bar isolated, it is an ideal machine for making jam, fruit juice, vegetable juice.
2.Working principle of the tomato pulp machinery:
The working principle of the machine is :Fruits and vegetables are in the cylinder with the beating plate rotation, squeezing, scraping the edge grinding stone,The foods are being crushing, the seeds , the thin skin are being separate.
3.Specifications of the tomato pulp machinery:
1.diameter of the Screen mesh:400mm
2.length of the Screen mesh:660mm
3.The NO of Scraper : 3 rows
4.the speed of the rotation :410r/min
5.the the spiral angle of the scraper :0°-5°
6.the hole diameter of the Screen mesh :0.8mm
7.power :3kw (1420r/min)
8.capacity :50kg/h-2500kg/h
9.weight :200kg
10.size :1236mm×750mm×1250mm
4.Preparation before using vegetable pulp machinery:
1, the machine is installed on the basis of sound, then tighten the foot screw.2, open the cylinder, cleaning it, pls note that do not let the water leak to the motor.3, adjust the scraper and the screen wall space for 7.5mm~2mm;4, adjust the angle of the blade spiral .5, hand rotating spindle to confirm if it is flexible, cover the cylinder and tighten it .6, before feeding, thick skinned fruits should be peeled. 7, the processing fruits and vegetables should be cleaned.8, Connect the power supply. Open the power, to check if the machine operate normally and the sounds is normal .
5.Operation of the tomato pulp machinery :
1,switched the power, then the motor started.
2, feeding appropriately, uniform, do not feed too much, affect the juice rate;
3, when feeding , do not throw the hard, dirty things into the cylinder;
4, always observe the local stone export slag, peel, peeled, seeds and vegetables are fresh, such as juice is not the net, the beating plate spiral angle adjustment. This may be extended for fruits
and vegetables in the barrel scraping and grinding time;
5,when finishing the use, cut off the power , open the cover, remove the funnel, wash the machine clean.
6.Maintenance of tomato pulp machinery :
1,pls pay attention to the temperature rise of the motor, should not exceed 65 °C;
2,if you found the abnormal sounds when the machine in operating, pls stop the machine as soon
as possible.Checked and maintenance, only after everything is ok, it can be working .
3,when you decide to operate the machine after a long time no use. Pls check it totally and have a try operate. Also pls add some Lubricating oil.
4,the machine can not insolation, drench;
5,must repair and maintenance it yearly.
Model |
Capacity Kg/h |
Power kw |
Speed (r/min) |
Size (mm) |
DJ-1 |
50-120 |
1.1 |
860 |
800×800×900 |
DJ-2.5 |
1000-2500 |
4.0 |
860 |
1450×770×1523 |
DJ-4 |
3000-5000 |
7.5 |
860 |
1600×850×1700 |
1. What is the price list?
We quote according to details from your requirement capacity, power, raw material and so on.
2.What certifications do we have & what guarantee do we have ?
We are certificated by ISO and CE. Our equipment has one year of gurantee.
3.What is the dimension?
Dimension depends on what kind of equipment involved in a certain complete system or plant . Dimension will be decided once the configuration and design of the system are figured out.
4. How to pay?
TT is most appreciated. Our practical is TT. 50% deposit before producing, 50% balance before loading by TT.
5. What is the time of delivery?
It depends on order size. Usually the delivery will be 7~15 days.
6. How to do onsite installation?/how to start up /operate / shut down /maintain?
We offer manual /illustration/ drawing for installation and operation and maintenance. Special technician can be sent do do guide and train work if necessary to the customer, but a reasonable fee will be paid by customers.
If you want to get more information, plesae do not hesitate to contact us!
Henan Wanda Chemaical Equipment Co.,Ltd.
Contact person:Emma
WhatsApp:+86 18236913754
