2013 professional wooden sawdust dryer for sale

Specifications

pipe dryer
1.simple structure and easy operate
petitive price,low cost
3.low power consumption
4.can be customized

2013 professional wooden sawdust dryer for sale





Structure and work principle:

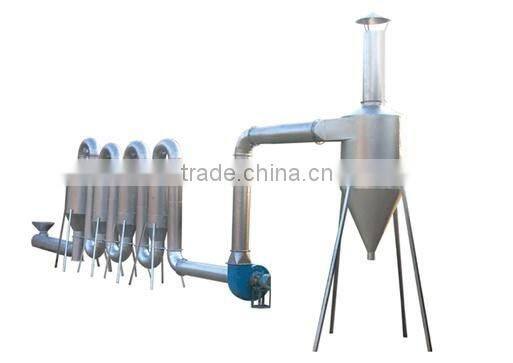

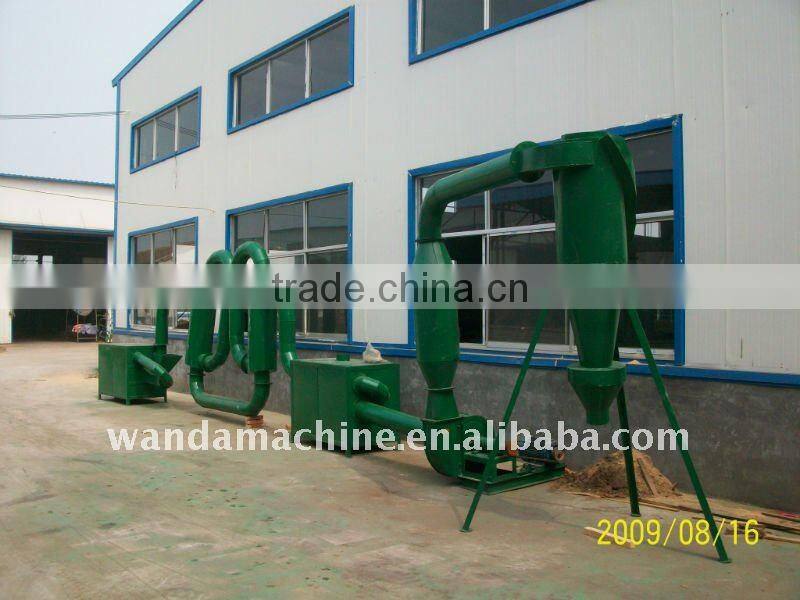

1) Air Flow Pipe Dryer is equipped one fuel boiler,inlet,steel pipe,exhaust blower(fan),cyclone.

2) First, the wet materials are put into the hopper.Then the fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan).

3) Air Flow Pipe Dryer reduces the moisture to 8- 12% with the advantages of lower cost consumption and high efficiency.



Raw materials:

maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse, wood chips, rice husk, coffee husk,coir pith, jute sticks, groundnut shells, Bamboo , wood , strawdust, Mustard stalk and cotton stalks .etc.



Main Technical Data:

Model	HGJ-I	HGJ-II	HGJ-III
Productivity (kg/hour)	600-800	800-1000	1500-2000
The diameter of the materials	< 3mm & < 5mm	< 3mm & < 5mm	< 3mm & < 5mm
The temperature of the heating air	260°C~360°C	260°C~360°C	260°C~360°C
Motor power	3-4 KW	4-5.5 KW	5.5-7.5 KW
Weight	1200 KG	1600 KG	2000 KG
Size of the machine	10*1.0*2.0 m	15*1.0*2.0 m	2.1*1.2*2.5 m

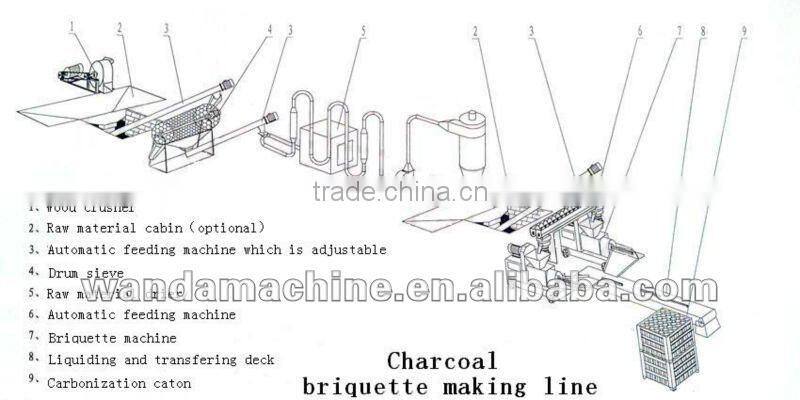

The  Flowchart of wood charcoal briquette:



raw materials Crushing ------ raw materials Drying------ wood powder Briquetting ---- semi-



finished charcoal------- semi-finished charcoal Carbonizing ------  finished charcoal
