Types of Hammer Mill

Types of Hammer Mill photo-1
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Henan, China
Brand Name:
WANDA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name WANDA
Model Number 9FQ series
Voltage 220v
Power(W) 5.5kw
Dimension(L*W*H) 700*750*740mm
Weight 180kg
Certification ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

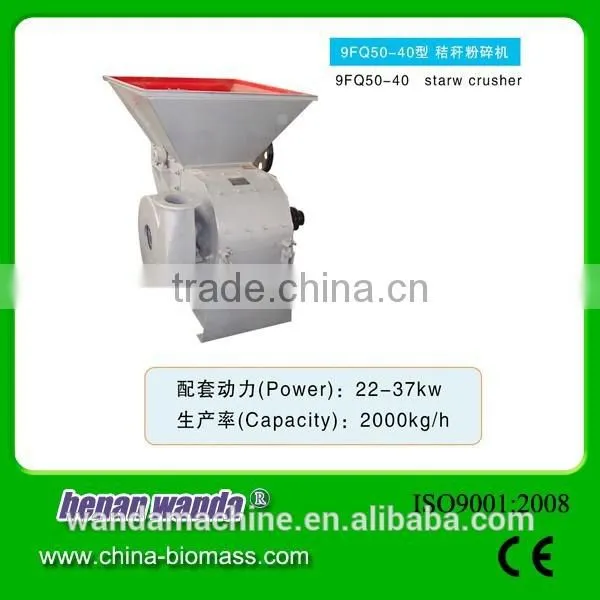

9FQ Series grain hammer mill with high quality



9FQ Series Hammer Mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on, which can crush the raw material into small particles with size 3~5mm.



The machine includes airlock, blower, cyclone. It is equipped with high carbon steel blade and works with high efficiency and gains more good reputation from European users.



The machine could be driven by the diesel engine, motor, tractor, etc.



 Main Technical Parameter:

Model

9FQ-32

9FQ-36

9FQ-40

9FQ-45

9FQ-50

Capacity(kg/h)

80-300

300-400

500-700

600-900

800-1200

Dimension (mm)

600*300*700

650*350*760

700*750*740

960*800*800

1100*850*900

Shaft speed (r/min)

4000

3880

3880

3880

3300

Quantity of  hammer(piece)

12

14

12

16

24

Weight (kg)

80

120

180

200

220

Power (KW)

3-5

5.5-7.5

7.5-11

11-15

Remark:Different raw materials,finished materials fineness is different,the output is also different,finished materials can be adjusted by changing the screen size.





Product show:











Raw material:





types of hammer mill



types of hammer mill



types of hammer mill
