Wood Pellet Crusher Machine

Wood Pellet Crusher Machine photo-1

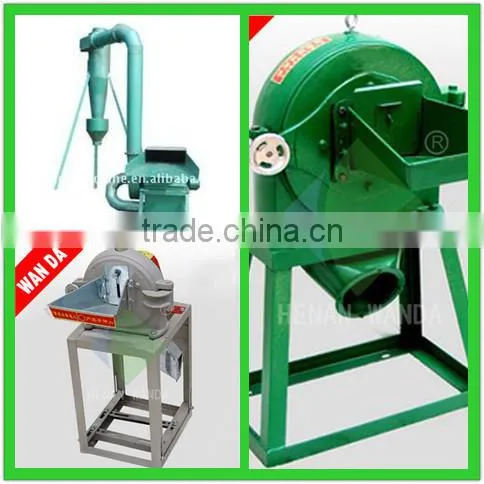

Wood Pellet Crusher Machine photo-2

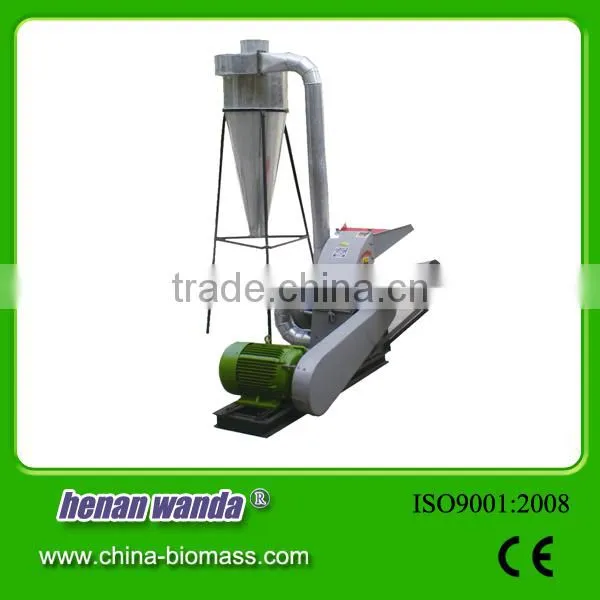

Wood Pellet Crusher Machine photo-3
Wood Pellet Crusher Machine photo-4
US$ 500 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
HENAN WANDA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Qingdao / Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name HENAN WANDA
Model Number 9FH-1200
Voltage 380v
Power(W) 75kw
Weight 2500
Certification CE , ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description



    Biomass wood crusher



Introduction:

wood crusher is a mew type machine of producing sawdust,which could make  the wood logs and branches into sawdust with low investment and power,high productivity,good econmic benefit,easy operate and maintenance.



Characteristic:

The machine is driven by only one motor,the structure is simple, compact arrangement,stable operation,low energy consumption,high yield,low noise,low processing.



Application:

Such wood crusher is composed of cutting device, crushing device.

It is widely used in wooden meal processing of bamboo, couch grass, cornstalk, grain stalk, flakeboard, wood partical board and high density board etc. and so on.It can process diameter<40mm wood logs and branches.It is used for crushing smaller diameter of the raw materials ,corn stalk ,branches which diameter is less than 50mm , the diameter of final product can be 3-5mm .



It can meet to a good worker  because its very cooperation and small size.



The machine could be driven by the diesel engine, motor, tractor, etc.



Main data:

Model

9FH-400

9FH-500

9FH-600

9FH-700

9FH-800

9FH-1000

Power(kw)

7.5

11

18.5

22

30

45

Capacity(kg/h)

400

600

800

1000

1500

2000-4000

Size of feed inlet  (mm)

150×200

200×200

200×230

200×250

250×300

350×400

Diameter of knife disk(mm)

400

500

600

700

800

1000

Quantity of blades (pic)

4

4

4

4

6

6

Length of blades(mm)

150

150

200

230

230

300

Speed of mainshaft(r/min)

2500

2500

2200

2200

1500

1500















Packaging & Shipping



Packing Detail: Wood case, plywood or as customer's require.

Delivery Detail: 7-21 working days after receiving the advanced payment.





Our Services





Professional manufacture in China.

Engineers available  to service machinery overesas.

warranty period : one year
