2015 WANDA High yield wood branch crusher for sale
Wood branch crusher Introduction:
Wood sawdust crusher is a new type machine of producing sawdust which could make the wood, argo waste and tree branches into sawdust. It’s necessary to use a wood crusher if your raw material is raw wood (tree branch, tree root and etc.) 9FH SERIES wood crusher can process raw wood with size less than 200mm (diameter) and moisture below 30%. After crushed, the output size can reach diameter 3-5mm. It also can cut bamboo, couch grass, corn stalks and broomcorn stalk and so on.
The machine is made of cutting device, crushing device and air blower. The woods are cut into small pieces through the cutting device and sent into the second device to crush without drying them. The final sawdust will be sent to the gathering palce by the air blow. The whole machine only need one electric motor, with simple structure, working stable, low energy consumption, high output and low cost.
Wood branch crusher Features:
1,It is used for grinding of small wood blocks, chips before pelleting;
2,Multi grinding chamber to increase efficiency by 15%;
3,Multi grinding chamber to prolong service life of screen and beater;
4,Modified rotor to increase stability and avoid overheating from the bearing;
5,Modified screen locking device t make assembling &disassembling easily;
6,Unique structure design of door to absorb shake and reduce noise;
7,Modified design for grinding chamber to reduce airflow resistance and increase efficiency;
8,Depress barycenter of rotor to make more balanced and coarse and fine grinding can be completed easily.
Wood branch crusher Main Technical Parameter:
Model |
9FH-400 |
9FH-500 |
9FH-600 |
9FH-700 |
9FH-800 |
9FH-900 |
9FH-1000 |
Power(kw) |
7.5 |
11 |
18.5 |
22 |
30 |
37 |
45 |
Capacity(kg) |
400 |
600 |
800 |
1000 |
1500 |
3000 |
4000 |
Dimension of feed inlet(mm) |
150×200 |
200×200 |
200×230 |
200×250 |
250×300 |
300×350 |
350×400 |
Dimension of knife disk(mm) |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
Quantity of blades(piece) |
4 |
4 |
4 |
4 |
6 |
6 |
6 |
Length of blades(mm) |
150 |
150 |
200 |
230 |
230 |
260 |
300 |
Speed of mainshaft(r/min) |
2500 |
2500 |
2200 |
2200 |
1500 |
1500 |
1500 |

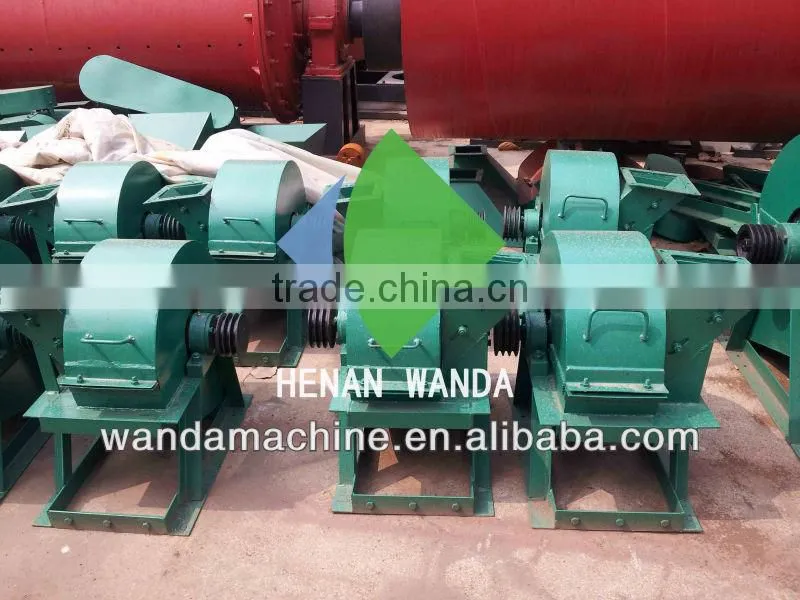

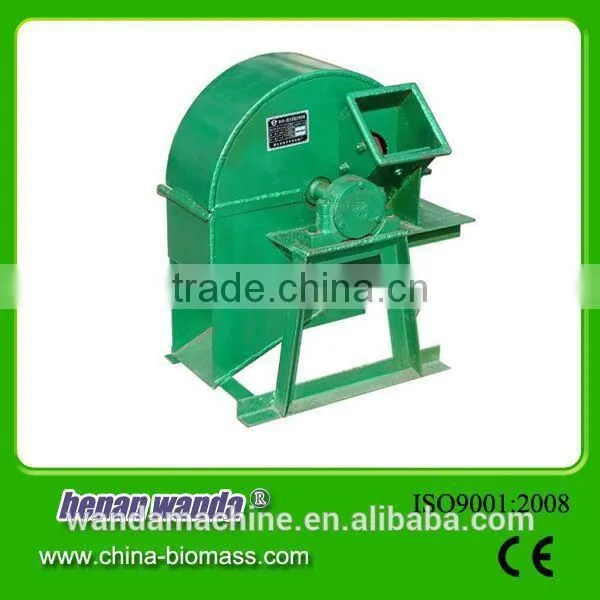

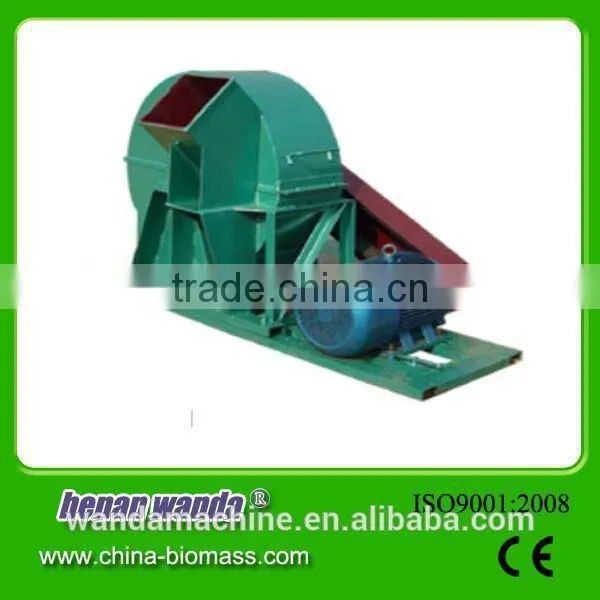

Wood branch crusher Product Show:
Certificate:
Packaging Details: wooden case
Delivery Detail: 15 days after getting your deposit
1.12 months warranty policy
2.we have many agency in different country.
3.we provide technical solutions for clients at any time.
Founded in 1996, Henan Wanda Chemical Equipment Co., Ltd. is a nation appointed professional manufacturer of machines for agriculture, forest, pasturage and fishery. The products of our company include some high quality single machines, such as pellet machines, briquette machines, ball press, sawdust dryer, hammer mill, crushers, etc. Besides, we also provide complete sets of feed, forest, organic fertilizer, and energy machinery, totally more than ten kinds. Our products are all of high quality and verified by the state, and have passed the national technological evaluation for professional machinery and being recognized by the state.
Relying on advanced technology, reliable quality and professional service, we enjoy a great reputation and customersatisfaction both at home and abroad. Our destination is creating Chinese famous brand and manufacturing high products that won't disappoint customers.
a. Are you the manufacturer with the independent research and development capacity?
Yes, exactly!
Henan Wanda Chemical Equipment Co.,Ltd. has always been dedicated to creating own brand and industrial properties, and has applied several patents for our products.
b. Are you a reliable supplier with good faith?
Yes, exactly!
We have various quality authentications: CE ISO9001 Alibaba third party certificationand so on
c.Are you able to deliever the products with factory price?
Yes, exactly!
We are welcome OEM (original equipment manufacturer), so our manufacturers prices are much lower than market prices.
d. Are you able to deliever it oversea if we need it in urgent ?
Yes, exactly
we can manage it successfully in a week We have the high quality service: only 20 work days delivery time and free maintenance.
