Specifications

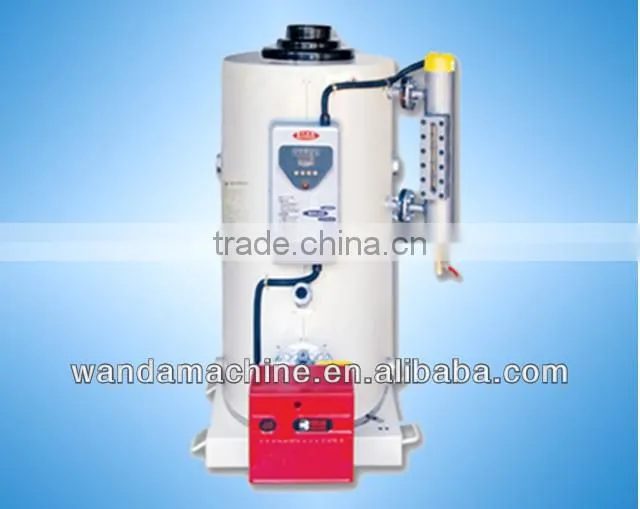

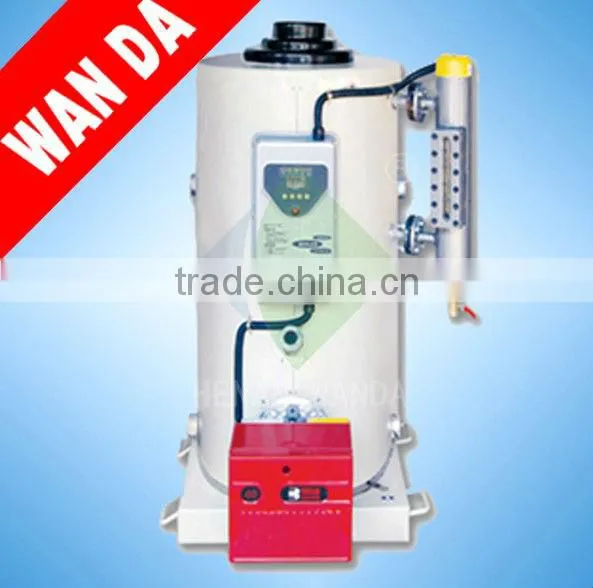

heating fast, high heat absorption and high heat efficiency, large water volume, low energy consumption, no pollution,smokelessHot selling New design drinking hot water boiler
introductin:
efficient drinking water boiler using new high-tech research and development, heating fast, high heat absorption and high heat efficiency, large water volume, low energy consumption, no pollution,smokeless, environment-friendly , economic benefits, is a ideal environmental protection and energy saving products.
Multifunctional
adoptfull automatic microcomputer system, automatic control the boiler operation, complete functions. water inlet control adoptreliable solenoid valve , show the real temperaturein the furnace , automatic heat preservation, high / low
Product characteristic
1.with the high-tech research and development
2.High heat absorption rate and high thermal efficiency
3.economical and practical
4.high capacity of yielding water, low consumption.
5.New type high efficient drinking water boiler, heating us fast.
6.smokeless, no pollution
7.Environmental protection and energy saving products
Specification:
|
Item Model |
Unit |
DHZ-500K |
DHZ-700K |
DHZ-1000K |
DHZ-1500K |
DHZ-2000K |
DHZ-3000K |
|
Hot water supply power |
MW |
0.068 |
0.08 |
0.116 |
0.174 |
0.232 |
0.347 |
|
Kcal/h |
50.000 |
70.000 |
100.000 |
150.000 |
200.000 |
300.000 |
||
Continuous hot water outlet |
Kg/h |
526 |
7.9 |
1.041 |
1.562 |
2.082 |
3.123 |
|
Pressure |
Mpa |
0 |
||||||
Temperature |
°C |
50~100 |
||||||
Water input temp |
°C |
≥4 |
||||||
Heat transfer area |
M2 |
2.80 |
3.60 |
4.30 |
5.41 |
6.88 |
10.80 |
|
fuel |
Diesel oil |
Kg/h |
5.60 |
7.60 |
11.17 |
16.70 |
22.34 |
10.80 |
LPG |
N sq.m/h |
2.30 |
3.60 |
4.60 |
7.00 |
9.34 |
14.01 |
|
NG |
N sq.m/h |
6.61 |
9.30 |
13.22 |
19.83 |
26.44 |
39.66 |
|
Pondage |
kg |
108 |
175 |
243 |
275 |
342 |
550 |
|
Voltage |
V/HZ |
220/50 |
||||||
Heat efficiency |
% |
90 |
||||||
Eject smoke pipe |
mm |
145 |
145 |
202 |
202 |
202 |
202 |
|
Diameter of water inlet pipe |
A |
25 |
25 |
40 |
40 |
50 |
65 |
|
Diameter of water output pipe |
A |
25 |
25 |
40 |
40 |
50 |
65 |
|
Diameter of air hole |
A |
25 |
25 |
32 |
40 |
40 |
50 |
|
Diameter of blow-off pipe |
A |
50 |
||||||
Weight |
kg |
277 |
320 |
380 |
425 |
510 |
776 |
|
Dimension |
W×L×H(mm) |
500×1250 |
600×1450 |
720×1650 |
720×1750 |
800×1800 |
1050×2100 |
|
