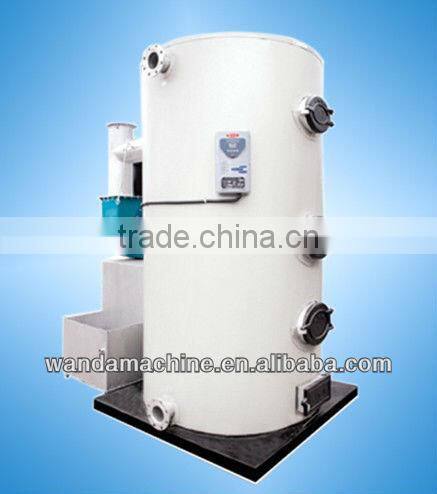

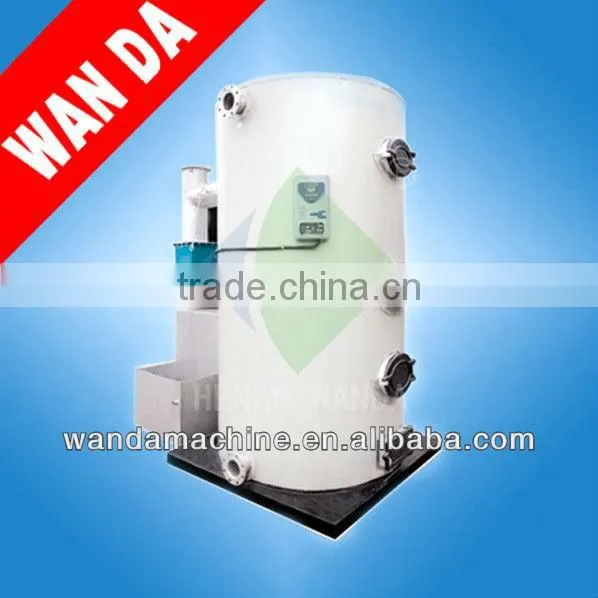

Hot selling gas boiler with low consumption
- 100 Set / Sets per Month
- Qingdao or Shanghai
- T/T
-
Mini animal feed grinding machine , corn powder hammer mill
-
Mini type corn hammer mill , feed grinding machine for sell
-
Factory direct sell small feed hammer mill , corn grinding machine
-
Large capacity gum arabic hammer mill with cyclone
-
Double Win agricultural hammer mill for sale,grain hammer mills for sale
-
Ce approval Rice husk hammer mill machine/corn hammer mill/maize grinding hammer mill
Product Details
Condition: | New | Type: | Natural Circulation | Usage: | Other, heating, hot water |
Structure: | Fire Tube | Pressure: | Other, normal pressure | Style: | Vertical |
Fuel: | Gas-fired | Place of Origin: | Henan, China | Brand Name: | WANDA |
Model Number: | CLSG0.2-95/70-WM | Output: | Other, how water, hot air | Dimension(L*W*H): | 1000*1000*2300mm |
Weight: | 496kg | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Unique design2. reasonable structure
3. attractive and handsome appearance
Hot selling gas boiler with low consumption
Product features and characteristics:
1.Unique design , reasonable structure , attractive and handsome appearance.
2.The furnace heated area is large, thermal efficiency significant, two-way vaporization combustion, fast ignition speed (1-8 min)
3. Equipment with a large capacity coal storage room, feeding can burn for hours at a time.
4. The latest smoke-free, dust removal and coal saving technology, discharge smoke temperature blow 100 . Don’t need to set up high
chimney, environmental friendly, achieve coal emissions standards.
5. The long process of fuel gas, super heat absorption area, coal-saving more.
6. The boiler body by the hot dip galvanized processing, water clean and pure, durable in use.
·Scope of application:
Outdoor bathing place, swimming pool, sauna center, leisure club, factory, school etc large place heat supply.
CLSG series coal gasification boiler technical parameter:
Model | unit | CLSG0.2-95/70-WM | CLSG025-95/70-WM | CLSG0.35-95/70-WM | CLSG0.48-95/70-WM | CLSG0.60-95/70-WM |
Heating power | MW | 0.2 | 0.25 | 0.35 | 0.48 | 0.60 |
Capacity of hot water | 4.4 | 5.4 | 7.3 | 9.05 | 12.05 | |
Working pressure | Mpa | ordinary pressure
| ||||
Heating efficiency | ≥89 | ≥89 | ≥90 | ≥90 | ≥90 | |
coal consumption
| Kg/h | 30-36 | 39-45 | 40-56 | 50-60 | 60-80 |
Boiler weight | 496 | 606 | 733 | 802 | 920 | |
Heating area | sq.m | 1000-1500 | 1500-2000 | 2000-2500 | 2500-3000 | 3000-4000 |
Fuel | Two class bituminous coal, three class bituminous coal, smokeless bituminous coal
| |||||
Dimension | mm | 1000×1000×2300 | 1150×1150×2400 | 1250×1350×2450 | 1280×1450×2600 | 1350×1550×2600 |
The inlet and outlet of water diameter | mm | 50 | 65 | 65 | 80 | 80 |
Chimney height | mm | 12000 | 12000 | 12000 | 16000 | 16000 |
Diameter of chimney | 190 | 219 | 219 | 219 | 219 |
Contact person: Martin Wanda
TEL: 86-371-60101636
FAX: 86-371-60101636
Mobile: 86 15890616421
Skype: A-z5628893
Web: http://www. .
Contact Us
- Henan Wanda Chemical Equipment Co., Ltd.
- Contact nameTiger Wu
- Phone86-371-60101636
- Address100 Meters East To The Intersection Of Xinzheng Road And South 4th Ring Road, Guancheng Distract Zhengzhou,Henan
-
