Food-grade Flexitank Packing for Oil

US$ 176 - 327 MOQ: 10 Sets

Key Specifications

Grade:

Food

Suitable for:

20" Container

Place of Origin:

Shandong, China

Qingdao LET Flexitank Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Grade Food

Place of Origin Shandong, China

Brand Name LET

Model Number Flexitank-1

Specifications

oil transport flexitank
1,5layer flexitank:4PE+1PP
2,14-24KL,3''valve
3,flexitank liability insurance
4,Kosher,FDA,EC,ISO

Qingdao LET Flexitank Co.,Ltd is a professional manufacturer of Flexitanks.

Flexitank Advantages

1, Low costs--saving storage, freight, cleaning and labor cost;

2, High loading--contain 24,000 liters liquid at most, 35%more than drums or bottles;

3, Convenient--Easy to operate and transport;

4, Environment friendly---food-grade and degradable.

Flexitank Specifications

WE LET FLexitank has 5 layers, 1 outer layer with High strength PP material, 4 inner layer with PE material,

3 inch Valve, and other accessories include: cardboard, bulkhead and steel bars.

Product Name	Main material	Material description	Picture
Flexitank 14KL ¦ 24KL	PE	4 inner layers food grade PE film (125mic)
	PP	1 outer layer Strong PP woven fabric (225g per square meter)
	Valve	Top loading &Top discharge(TB), Bottom load & Bottom discharge(BB), Top load & Bottom discharge(TB)
	Valve	3-inch Butterfly valve/Ball valve
	Accessories	Steel bar--245027765mm 5PCS/set; Bulkhead--2330168020mm 1PC/set; Corrugated paper--1400300mm(diameter) 1roll/set Foam strip*
	Special component	Heating pad--avoid solidifying and keep flowing Air vent--Release air
Paper IBC	liners	Single valve/Double valve
	Octagon carton	Compared with singe octagon carton,we combine inner octagon with outside square, it has better compression resistance and stability without using pallet.
	Pallet	Hard paper pallet(5 tons load-bearing)/wooden pallet

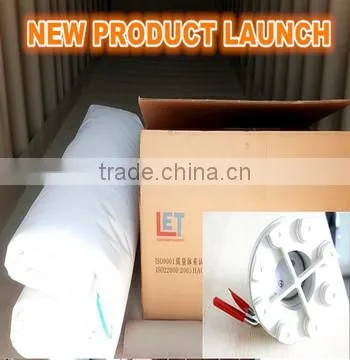

Flexitanks pics for your reference

Flexibag with and without liquid

Flexitank Installation Procedure

Installation procedure	Pictures
1, Choose a better container, check strictly and clean the inner flints.
2, Lay the corrugated paper in three sides and the bottom of the container to avoid bareness.
3, Take out of the flexitank and paper pipes from the packaging box.
4, Fix the steel bar using the paper pipes.
5, Install and tie the bulkhead& steel bar together with a fixed rope.
6, Pave the flexitank and secure it by suspending the four corners while opening the valve cap.
7, Fix the valve cap properly.
8, Close the left door and make sure the foam strip doesn’t exceed.
9, Connect the valve with the pipe and set them, open the valve to charge the liquid.
10, When the loading is finished, close the valve first and then disconnect the pipe and screw the valve cap on.
