Refractory Lower Thermal Ceramic Fiber Board

Refractory Lower Thermal Ceramic Fiber Board thumbnail-1
Refractory Lower Thermal Ceramic Fiber Board thumbnail-2
Refractory Lower Thermal Ceramic Fiber Board thumbnail-3
Refractory Lower Thermal Ceramic Fiber Board thumbnail-4
Refractory Lower Thermal Ceramic Fiber Board thumbnail-5
Refractory Lower Thermal Ceramic Fiber Board photo-1
Refractory Lower Thermal Ceramic Fiber Board photo-2
Refractory Lower Thermal Ceramic Fiber Board photo-3
Refractory Lower Thermal Ceramic Fiber Board photo-4
Refractory Lower Thermal Ceramic Fiber Board photo-5
US$ 1,200 - 2,700 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Application:
Liners Of Industrial Furnace
Thickness:
6-80mm
Width:
1200/1000/900/600mm
Contact Supplier Request Quote Chat Now
Hebei Color Season Metals And Minerals Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Liners Of Industrial Furnace
Thickness 6-80mm
Width 1200/1000/900/600mm
Length 1200/1000mm
Grade ST (Standard)
Chemical Composition AL2O3+SIO3
Working Temperature 1050℃-1350℃
Fiber Diameter 3-5um
Thermal Conductivity 0.055-0.135
Shrinkage (1800℉, 3h) -3
Place of Origin Hebei, China
Model Number CFB-1260
Brand Name VMC

Specifications

Low thermal conductivity and shrinkage
Low heat storage
Excellent resistance against chemical attack
Easy to machine ,

Lower Thermal Conductivity Ceramic Fiber Board

 Ceramic Fiber Board Main Characteristic:

1.low thermal conductivity , low thermal capacity

 2.High compression strength

3..High thermal stability ,resistance to thermal shock,flame and airflow attack

4.Resistance to corrosion,high compressive strength.

5.High toughness,easy to cut and install quickly

6. Accurate dimension and good palneness;

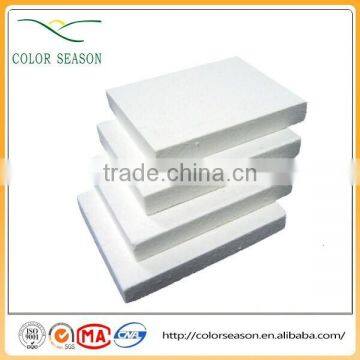

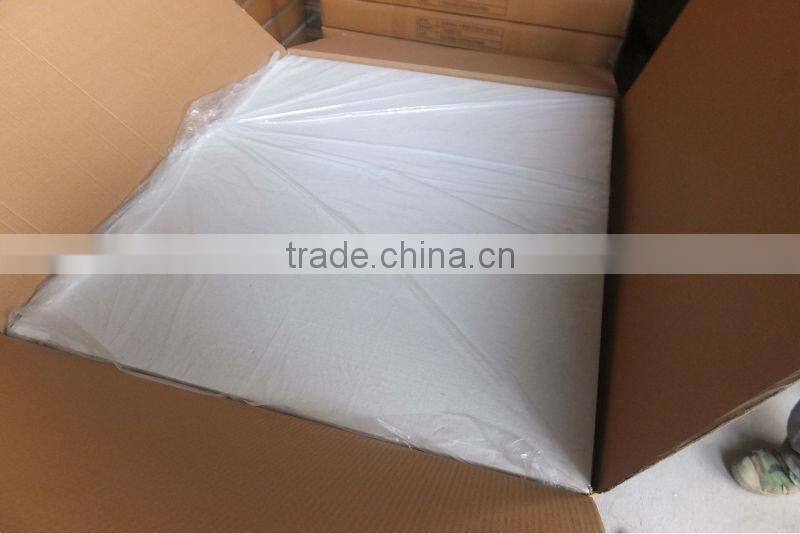

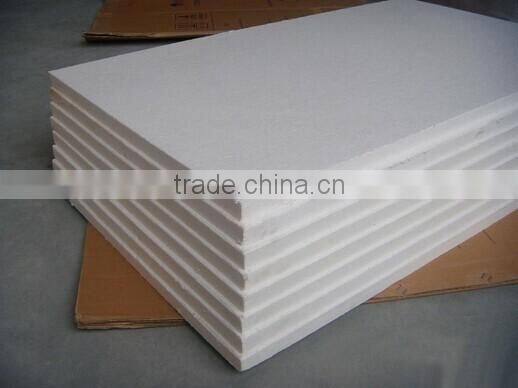

 Refractory Lower thermal Ceramic Fiber Board

 Refractory Lower thermal Ceramic Fiber Board

 Refractory Lower thermal Ceramic Fiber Board



Refractory Lower thermal Ceramic Fiber Board

 Ceramic Fiber Board Typical Application

1.Refractory lining for industrial furnaces

2.Combustion chamber liner, boilers and heaters

3.Back-up insulation for monolithic refractories

4.Transfer of non-ferrous metals

5.Expansion joiot boards

6.Barrier against flame



 Ceramic Fiber Board Technical index

Item

COM

ST

HP

HA

HZ

Specification(°c)

 1100

 1260

 1260

 1360

 1430

working tem(°c)

 ≤1000

1050

1100

1200

1350

color

 white

density(kg/m3)

 280-600

rate of liner(%)

(24h density320kg/m3)

 -4

-3

-3

-3

-3

rate of thermal conductivity

(w/m.k)(density128kg/m3)

0.085(400°c)

0.132(800°c)

0.18(1000°c)

 tensile strength(mpa)

0.08-0.12



 Ceramic Fiber Board Chemical Composition

Chemical(%)

COM

ST

HP

HA

HZ

Al2O3

44

46

 47-49

 52-55

 39-40

Al2O3+SiO2

96

97

 99

 99

 --

Al2O3+SiO2+ZrO2

--

--

--

--

99

ZrO2

-

-

 -

 -

 15-17

Fe2O3

<1.0

0.2

 0.2

 0.2

 0.2

Na2O+K2O

≤0.5

0.2

 0.2

 0.2

0.2

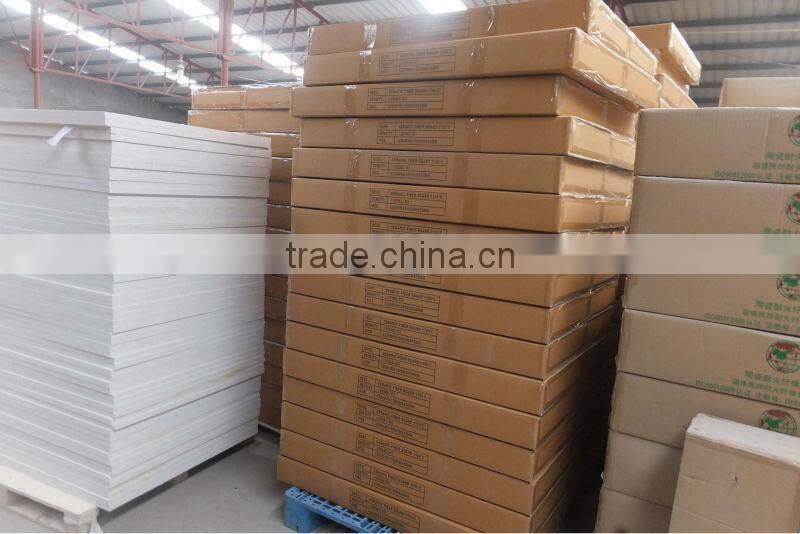

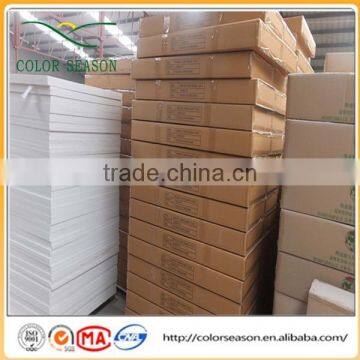

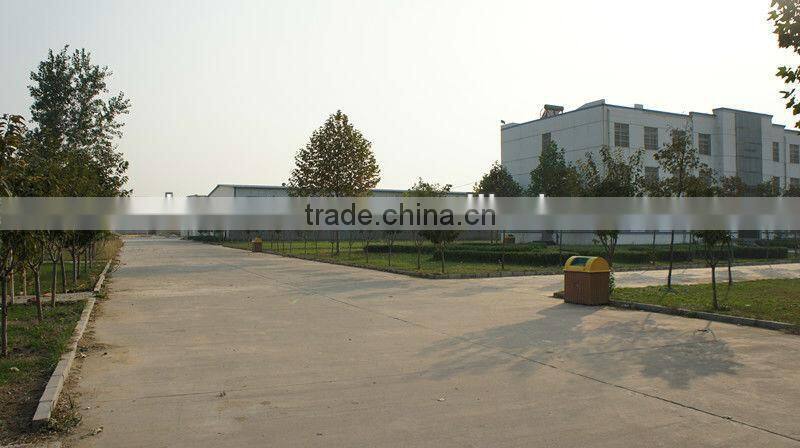

Ceramic Fiber Board Factory picture

Refractory Lower thermal Ceramic Fiber Board
