Specifications
Ceramic Fiber BlanketLow thermal conductivity, low thermal capacity
Excellent heat insulation, fire prevention

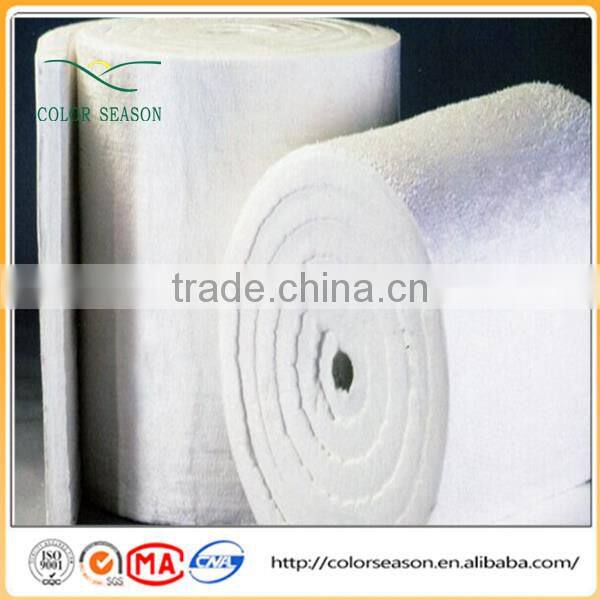

Heat Insulation Ceramic Fiber Blanket

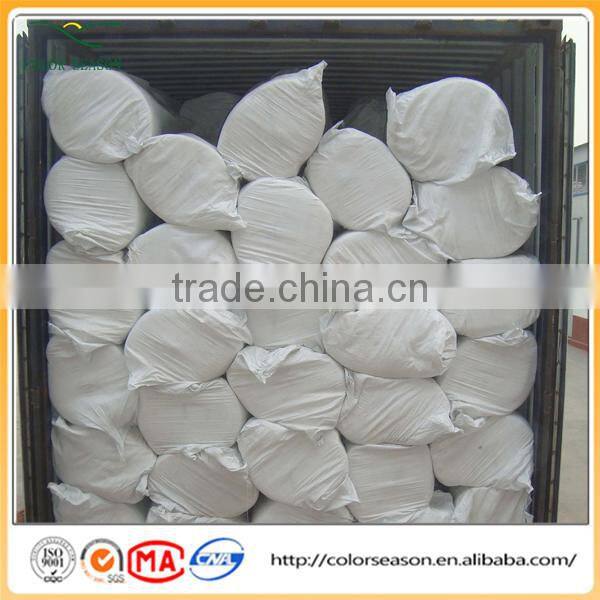

Ceramic Fiber Blanket package
The ceramic Fiber is made through intensive needlepunching processing . The product does not contain any bond or othercompositions,and also no slag inclusion content. The intensive needle-punching technics improved the fiber intertexture and theresistance performance against delamination as well as the tensile strength.It have a good high temperature shrinkage after the heat treatment of 750-950
during the producing. Beside the charicteriatics in common,it have better sound insulation performance and mechanism strength,is easy to machining and install.
Ceramic fiber blanket | |
Dimension(mm) |
7200/3600x610x(10mm-50mm) |
BulkDensity(kg/m3) |
96/128 |
Packaging Details |
plastic bag inside and cartons outside |
Applications |
Industrial furnace, Heat treatment, Fire protection |
Ceramic fiber blanket application
*Industrial furnace,Heat treatment,High temperature pipe
*Insulating materials of boiler, turbine and nuclear power
*Insulating material for face and top of industrial furnaces and heating device
*Excellent sound insulation for Construction Fire protection
*High temperature filter material for nonferrous metal.
Ceramic Fiber Blanket Tech data
ITEM |
Standard |
Pure |
High Aluminum |
Zirconium |
|
Classification temperature(℃) |
1260 |
1260 |
1360 |
1430 |
|
Work temperature(℃) |
1050 |
1100 |
1200 |
1350 |
|
Color |
white |
white |
white |
white |
|
Density(kg/m3) |
96/128 |
96/128 |
96/128 |
96/128 |
|
Permanent.linear shrinkage(%) |
-3 (1000℃) |
-3 (1100℃) |
-3 (1250℃) |
-3 (1350℃) |
|
|
Thermal conductivity (w/m.k) |
0.09(400℃) 0.176(800℃) |
0.09(400℃) 0.176(800℃) 0.22(1000℃) |
0.132(600℃) 0.22(1000℃) |
0.76(600℃) 0.22(1000℃) |
|
Tensile.strength(Mpa) |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
|
|
Chemical Composition(%) |
AL2O3 |
46 |
47-49 |
52-55 |
39-40 |
|
AL2O3+ SIO3 |
97 |
99 |
99 |
- |
|
AL2O3+SIO3+ ZrO2 |
- |
- |
- |
99 |
|
ZrO2 |
- |
- |
- |
15-17 |
|
Fe2O3 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
Na2O + K2O |
≤0.5 |
0.2 |
0.2 |
0.2 |
Size(mm) |
7200/3600x610x(10mm-50mm), other size due to your demand |
||||
Package |
Bag, Carton |
||||
Ceramic Fiber Blanket Features
*Low thermal conductivity ,heat storage and heat capacity
*Excellent heat insulation
*Excellent chemical stability
*Shock and chemical attack resistant
*Low thermal conductivity and shrinkage
*Resilience under working condition, Low shrinkage under high temperature
*Excellent sound insulation and resistance of folding
