Varied of Metal Rasching Rings KY26

Varied of Metal Rasching Rings KY26 thumbnail-1
Varied of Metal Rasching Rings KY26 photo-1
Negotiable MOQ: 1 Cubic Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
Kangyu
Model Number:
Metal Rasching Ring
Contact Supplier Request Quote Chat Now
Pingxiang Kangyu New Power Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/shanghai/shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name Kangyu
Model Number Metal Rasching Ring
Application Tower Packing, in petrochemical/chemical fertilizer industry/environmental protection
Shape Metal Rasching Ring
Material SS304 316 316L 410
Dimensions 16mm, 25mm, 38mm, 50mm,76mm, 90mm
Chemical Composition SS

Specifications

Metal Rasching Rings
high quality
Material: SS304 316 316L 410
Size: 16, 25, 38, 50,76,90mm
Certification: ISO9001:2008

Metal Rasching Rings



10 years experiences in producing for chemical random packing and structured packing, desiccant and ceramic ball



Introduction:

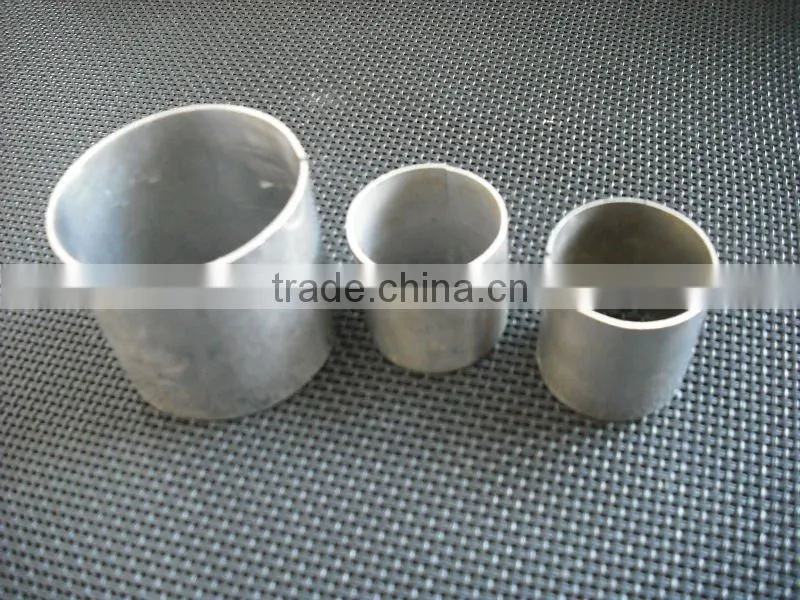

Metal rasching ring is made of materi als like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.



Technical data

Size
 mm

Bulk density
kg/m3

Number
per m3

Surface area
m2/m3

Free volume
%

15×15×0.3

379

230000

350

95

25×25×0.4

318

51000

216

96

25×25×0.5

400

51000

220

95

35×35×0.8

430

19000

150

93

50×50×0.5

203

6500

106

97.4

50×50×0.7

285

6500

108

96.4

50×50×0.8

325

7000

109

95

76×76×0.8

212

1830

69

97.3

80×80×1.2

300

1600

65

96

90×90×1.0

236

1160

62

97



The above data is reference to material stainless steel (AISI304) in the material thickness shown.



Material available:

carbon steel, stainless steel including 304, 304L, 410,316, 316L.
