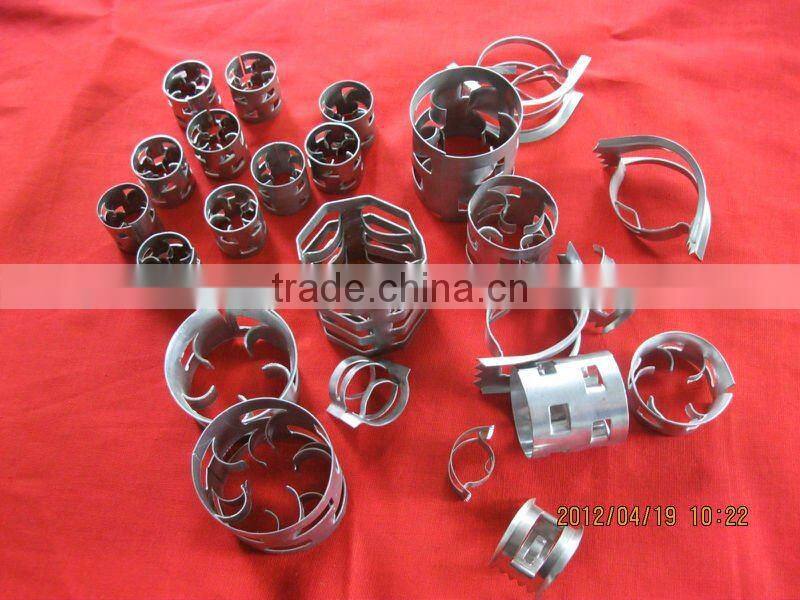

Plain Metallic1.Size:Dia25,38,50,76mm
2.Material:carbon steels,aluminium,copper,bronze,ss304L,316L
3. low pressure drop

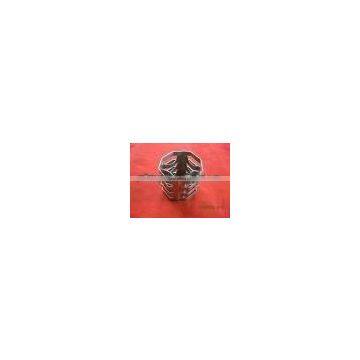

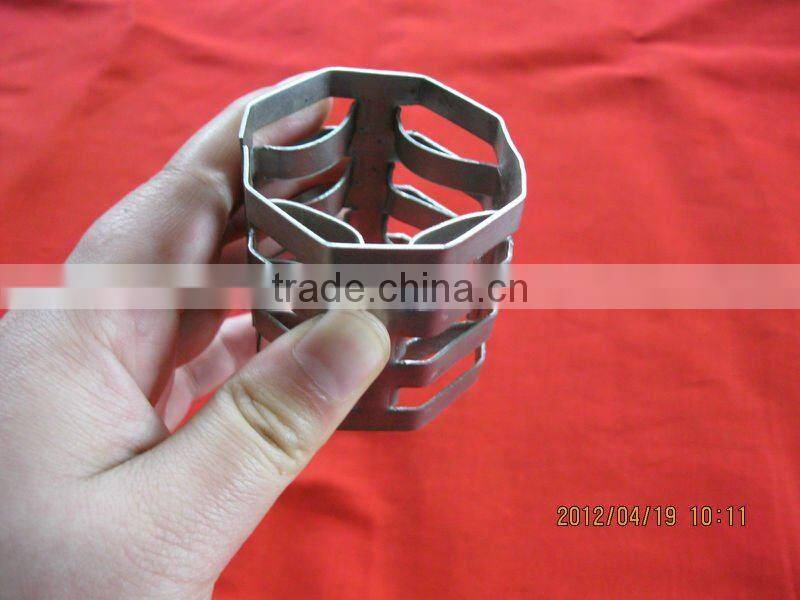

Metallic Vsp Ring
10 years experiences in producing for chemical random packing and structured packing, desiccant and ceramic ball
Metal VSP rings have reasonable Geometric symmetry, good structural uniformity and High porosity. The surface of the packing tower is continuous and not disconnecting ,evenly distributed in space .Compared with , its flux can increase 15-30 percent, and the pressure can reduce 20-30 percent.
The advantages of metal :
low resistance,low pressure drop,great separating,effect cold and heat resistonce,long lifetime.
Features:
the pall ring packing have characteristics of low pressure drop,high flux and high effciency.improved packing have lower pressure and higher mass transfer efficiency,than pall ring in the same size.In addition,improved backing has good distribution for liquids in the packing bed.
Materials:
stainless steels,carbon steels,aluminium,copper,bronze,304L,316L and aluminium permeated steels,improved polypropylene,improved Nylon6,Nylon66,reinforce PBT etc.
Applications:
various separation,absorption and desorption equipment,normal atmospheric pressure reduced and vacuum distillation plant,decarburateing and desulfuration systems,ethyl benzene separation,and Iso-octane/toluene systems.
Technical Parameter:
Name |
Normal |
Diameter*Height* |
Surface area |
Void space |
Bulk density |
No.elements |
Packing factor |
|
ø25 |
25*25*0.6 |
250 |
93 |
420 |
59200 |
310 |
ø38 |
38*38*0.6 |
138 |
94.7 |
396 |
14000 |
163 |
|
ø50 |
50*50*0.8 |
121 |
95 |
350 |
7000 |
144 |
|
ø76 |
76*76*1.0 |
75 |
95 |
280 |
1950 |
86 |
