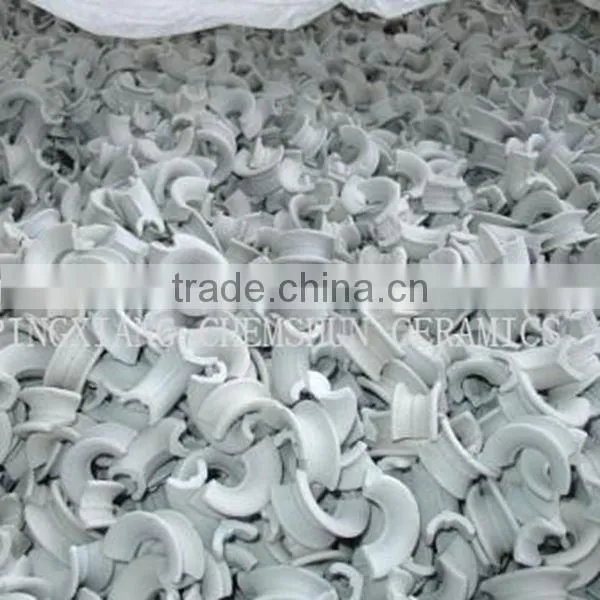

Help CenterTower Packing Ceramic Intalox Saddle Ring
Related Products
-
High Chemical Corrosion Ceramic Intalox Saddle RingUS$ 300 - 1,999MOQ: 1 Metric Ton -
Ceramic Intalox Saddle Ring as Column Random PackingNegotiableMOQ: 1 Metric Ton
-
Good Quality Ceramic Berl Saddle Tower Packing KY89US$ 300 - 1,200MOQ: 1 Cubic Meter
-
Ceramic Pall Ring For Ceramic Random Tower PackingNegotiableMOQ: 1 Metric Ton
-
Good Acid Resistance Ceramic Pall RingNegotiableMOQ: 1 Metric Ton
Specifications
1.fired at high temperatures2.excellent mechanical, abrasion
3.excellent heat endurance
Ceramic Saddles are characterized random packing used in various mass transfer extraction applications.
They are fired at high temperatures and have excellent mechanical, abrasion, high chemical stability, and excellent heat endurance. Ceramic Saddles are commonly used in heat transfer and corrosive acid application
Some of the applications that Ceramic Saddles are used include:
Ceramic Saddles for Acid Absorbers
Ceramic Saddles for Absorbing Towers
Ceramic Saddles for Scrubbers
Ceramic Saddles for Gas Dryers
Ceramic Saddles for Liquid Extractors
Ceramic Saddles for Rectifiers
Ceramic Saddles for Cooling Towers
Ceramic Saddles for Drying Towers
Ceramic Saddles for Washing Towers
Ceramic Saddles for Reclaiming Towers
Ceramic Saddles for Desulphurization Towers
|
Size & Specification
| |||||
Product: Ceramic Intalox Saddle Ring | |||||
Nominal Dimension |
Specific Surface Area(m2/m3) |
Void Rate |
Numbers(/m3) |
Bulk Density(kg/m3) |
Packing Factor
|
DN76 |
76.3 |
0.752 |
2400 |
537.7 |
179.4 |
DN50 |
105.4 |
0.791 |
8243 |
538 |
212.9 |
DN38 |
131 |
0.804 |
19680 |
554 |
252.0 |
DN25 |
200 |
0.772 |
58230 |
563 |
434.6 |
DN20 |
378 |
0.710 |
269900 |
620 |
1056 |
Remark |
We also can customize the products as your requirements. |
||||
Chemical Analysis (average values)
SiO2 |
% |
72-75 |
Al2O3 |
% |
22-25 |
Fe2O3 |
% |
≤0.9 |
MgO |
% |
≤0.5 |
CaO |
% |
≤0.5 |
Na2O+ K2O |
% |
3-4 |
Other |
% |
≤0.1 |
Physical Properties (average datas)
| Nominal size(inch) | 3/8'' | 1/2'' | 5/8'' | 3/4'' | 1'' | 1.5'' | 2'' | 3'' |
| Width(mm) | 8 | 10 | 12 | 14 | 21 | 30 | 40 | 57 |
| Height(mm) | 8 | 10 | 12 | 14 | 19 | 30 | 40 | 57 |
| Length(mm) | 16 | 20 | 24 | 28 | 38 | 60 | 80 | 114 |
| Thickness(mm) | 2 | 2.5 | 2.5 | 3 | 4 | 4.5 | 5.5 | 9 |
| Free volume (%) | 63 | 68 | 71 | 75 | 77 | 80 | 79 | 75 |
| Specific gravity (g/cm3) | 2.25~2.4 | |||||||
| Water absorption(%) | <0.3 | |||||||
| Acid resistance (%) | >99.6 | |||||||
| Max operating temp. | 1100°C | |||||||
| Porosity (%) | <1 | |||||||
| Moh’s hardness (scale) | >6.5 | |||||||
| Thermal conductivity(w/m.k) | 0.9-1.0 | |||||||
| Specific heat (j/kg°C) | 850-900 | |||||||
| Firing temperature(Degree C) | 1165-1320 | |||||||
also can produce as per clients' specifications
