Good Quality Ceramic Berl Saddle Tower Packing KY89
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Good Quality Ceramic Berl Saddle packing KY89 | Brand Name | KANGYU |
Product Description

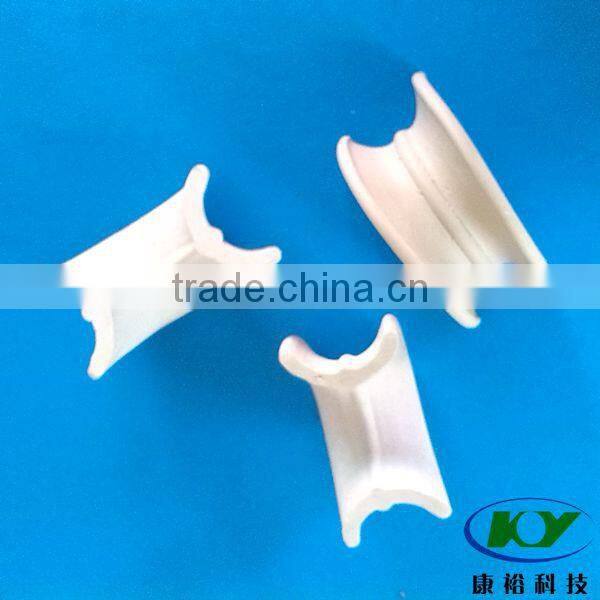

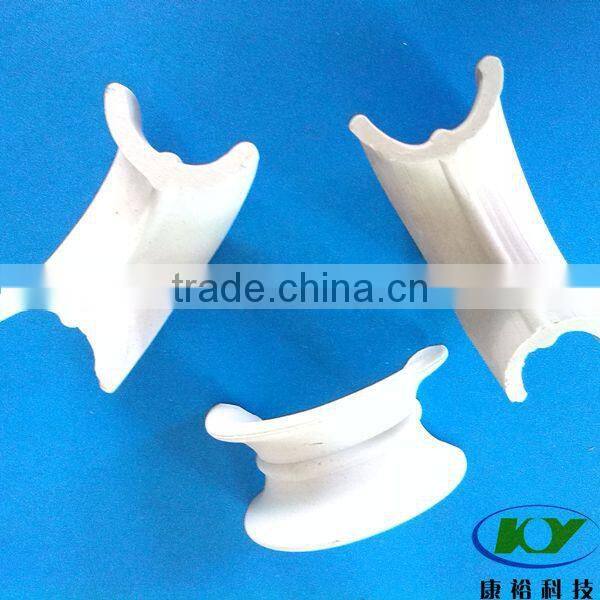

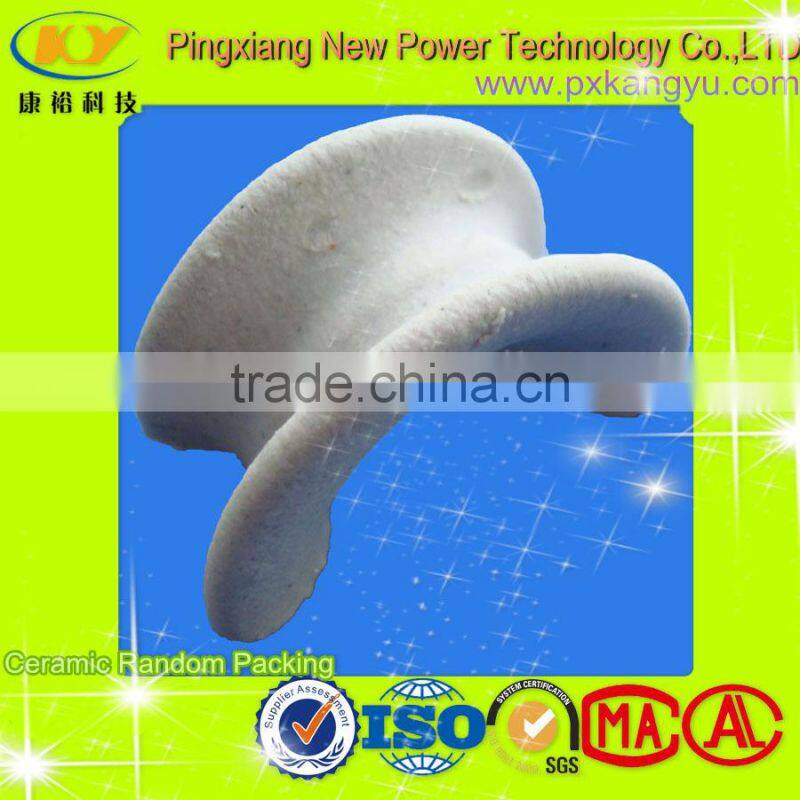

Good Quality Ceramic Berl Saddle KY89
KANGYU Ceramic Berl Saddle
Introduction:
Ceramic berl saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions.
Technical Data for Berl Saddles
Size | Specific Surface | Void Volume | Number per m3 | Bulk Density | |
(mm) | (inch) | ||||
19 | 3/4 | 225 | 58 | 83950 | 725 |
25 | 1 | 206 | 61 | 43250 | 640 |
38 | 1-1/2 | 110 | 72 | 12775 | 617 |
50 | 2 | 95 | 72 | 7900 | 650 |
Chemical composition
SiO2 | Al2O3 | Fe2O3 | CaO | K2O+Na2O |
>70% | 23-30% | <1% | <1-2% | <2-4% |
Physical properties
Index | Value |
Specific gravity(g/cm3) | 2.25-2.35 |
Water absorption(%) | <0.5 |
Acid-resisting strength, %Wt. Loss (ASTMc279) | <4 |
Firing temperature() | 1280-1320 |
Softening point() | >1400 |
Density(kg/m3) | 2350 |
We promise to reply you in 24hours, OEM & ODM service for your unique idea with absolute convenience. We value our business credit, promise to keep your company information confidential.If any inquiry or problem.Please feel free to contact with me.
Grace Zhang
TEL:+86-13767885030
QQ: 84781705
Skype: yakegrace
Wechat: xz9426
TM: cn1000900349
We Specialized in Manufacturing molecular sieve, random and structured chemical packing in ceramic, plastic & metal, honeycomb ceramics, inert ceramic balls, activated alumina, alumina grinding balls, etc.
We has an annual manufacturing capacity of 5000 ton molecular sieves, 20000 m3 of varieties types of chemical packings, 3000 m3 of honeycomb ceramics and 5000 m3 of inert ceramic balls, 2000 ton activated alumina etc.
Welcome to our factory and negotiate business. We trust we will be your best supplier in China.
