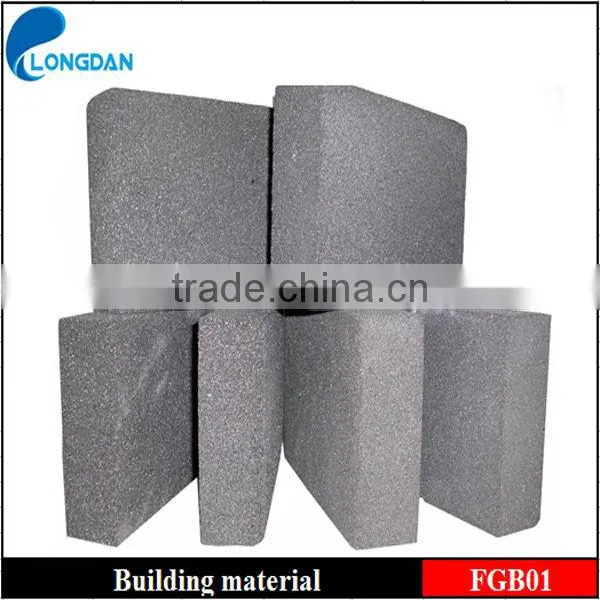

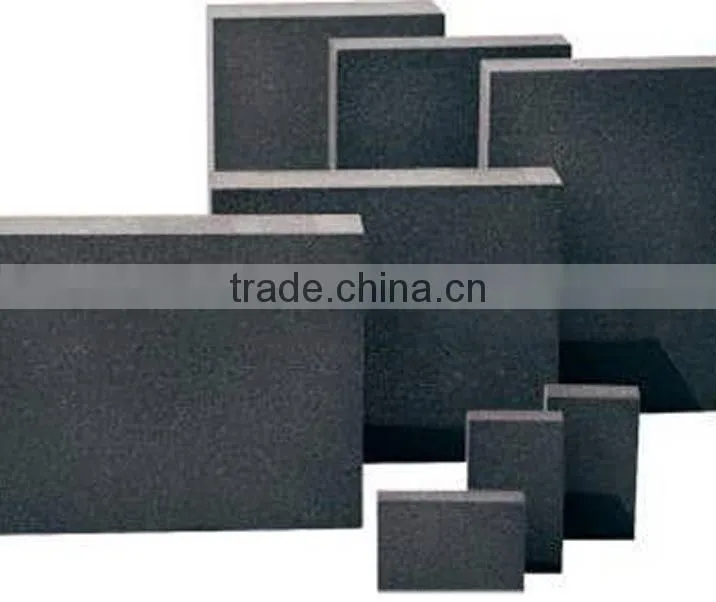

Moisture Resistance foam glass Insulation board
Item name: foam glass Insulation
Product Description
Foam glass is A kind of the superior performance of adiabatic (for cold), sound absorption,
moistureproof, fire prevention of high-strength lightweight construction materials and decoration
materials, using temperature range is below zero 196 degrees to 600 degrees, A level not burning
buildings and with life, coefficient of thermal conductivity is 0.060W/m.k(38°C) , moisture permeability coefficientis almost zero.
Although other new thermal insulation material emerge in endlessly, but with its
permanent foam glass, safety, high reliability and low thermal insulation, moistureproof engineering,
sound absorption, etc play a more and more important role. Its production is a solid material waste
recycling, is to protect the environment and to obtain the rich examples of economic interests.
Property
Item |
Unit |
Item 1 |
Item 2 |
Item 3 |
Density |
Kg/m3 |
125+5% |
150+5% |
170+5% |
Thermal conductivity |
(38°C) w/m.k |
0.044~0.049 |
0.049~0.054 |
0.054~0.059 |
compressive strength |
MPa |
≥0.5 |
≥0.7 |
≥1.0 |
linear expansivity |
Cm/cmc |
≤8.5x10-6 |
≤8.5x10-6 |
≤8.5x10-6 |
volatile water absorption |
% |
≤0.2 |
≤0.2 |
≤0.2 |
Product Character
1.Moistureproof
2.Fire prevention
4.Non-combustibility No feint smell
5.Noise absorption
6.Non-toxic no radiation
1. Tank base bearing and insulation for big volume tank
2. Low Temperature and cryogenic piping,vessel,tank and equipment
3. Undergtound or aboveground steam piping and chilled water piping
4. Chilled or hot water suppling piping
5. Offering oil platform
6. Circulation piping and equipemt
7.Hot oil or asphalt tank
8. liquid heat exchanger system
9. Insulation&acid-resistant lining system for chimney in power plant
10.Insulation&engergy-saving for building
