Aluminium Silicate Module

Aluminium Silicate Module thumbnail-1
Aluminium Silicate Module thumbnail-2
Aluminium Silicate Module thumbnail-3
Aluminium Silicate Module thumbnail-4
Aluminium Silicate Module photo-1
Aluminium Silicate Module photo-2
Aluminium Silicate Module photo-3
Aluminium Silicate Module photo-4
US$ 0.6 - 10 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHIM
Model Number:
aluminium silicate module
Contact Supplier Request Quote Chat Now
Longdan International Trading (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SHIM
Model Number aluminium silicate module
Application Refractory,liner of furnace
Grade HP (High Pure)
Dimensions 300x300x300mm,300*300*200, 300*300*150mm
Working Temperature 1100
Fiber Diameter 3-5um
Thermal Conductivity 0.055-0.180
Shrinkage (1800℉, 3h) 1.0

Aluminium silicate  module

Product Description

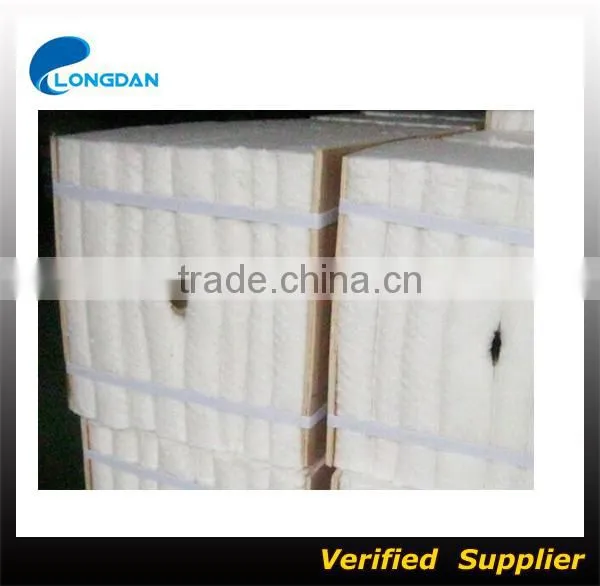

Aluminium silicate folded Module are designed and engineered to apply on many types of kilns and heat process equipment. Each modules is a continues folded inorganic spun blanket under compression.
It’s prevent heat loss,increasing the furnace productivity and reducing maintenance costs. Installation is quickly and easily completed by contractors or plant personnel who have received basic training.

Size

 Standard Dimension &Package

Size(MM)

Package

Thickness

Width

Length

Carton

PCS/Carton

Carton Size(MM)

150

300

300

96

1020*1220*1220

200

80

300

48

Special size are available for specific needs




Main properties



Model

1260 MODULE

Temperature(℃)

1260

Color

White

Density(kg/m3)

160/192/210

Fiber Diameter (um)

2.6

Fiber Density ( kg/m3)

2600

Shot (  212um <) (%)

10

Thermal Conductive ( W/mk)



400℃

0.09

600℃

0.15

800℃

0.22

1000℃

~

Chemical Composition :



Al2O3(%)

42--44

SiO2(%)

56

ZrO2(%)

~

CrO3(%)

~

Fe2O3(%)

0-2

Shrinkage(Less than 200℃*8H)

2%







Characteristics

  • Fast installations
  • Efficient attachment design
  • Gap-free lining
  • Low heat storage and fuel costs
  • Requires less maintenance
  • Several anchor system
  • Thermal shock resistance
  • Excellent thermal stability
  • Fast thermal cycling (heat up and cool down)

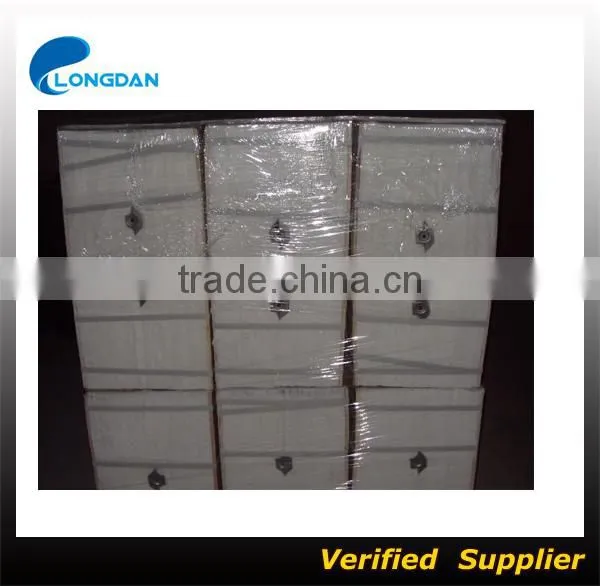

Packaging & Shipping

Aluminium silicate module

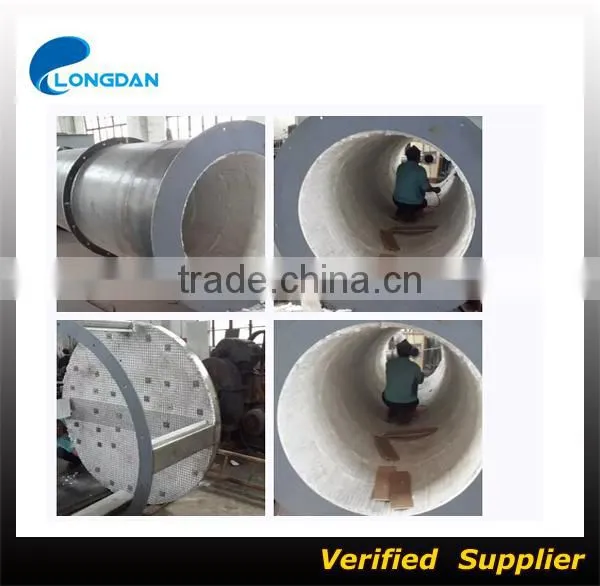

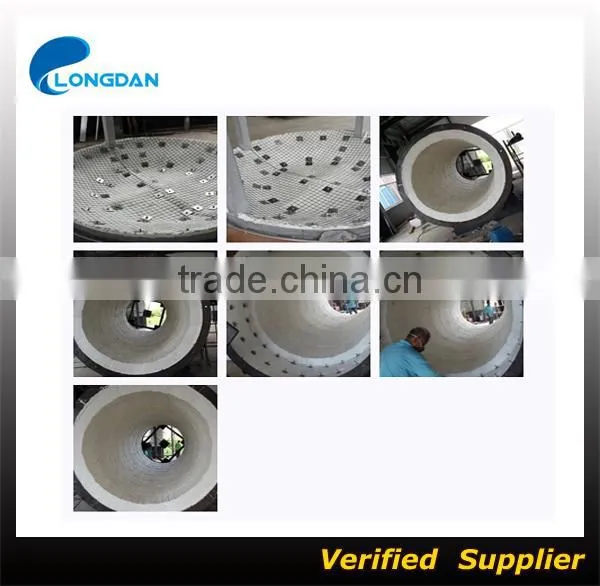

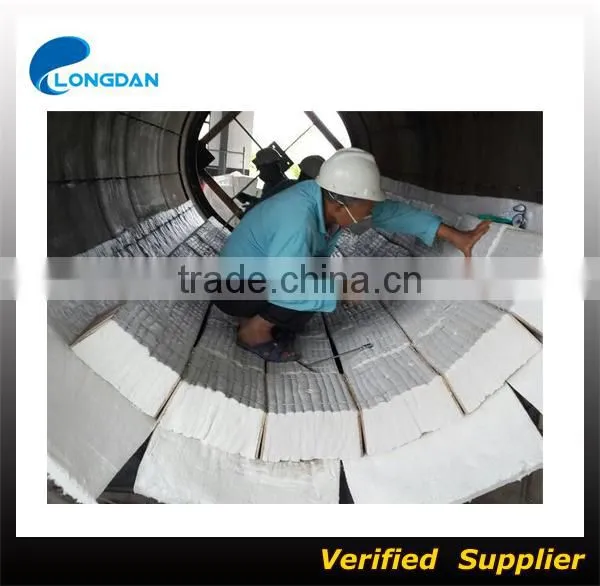

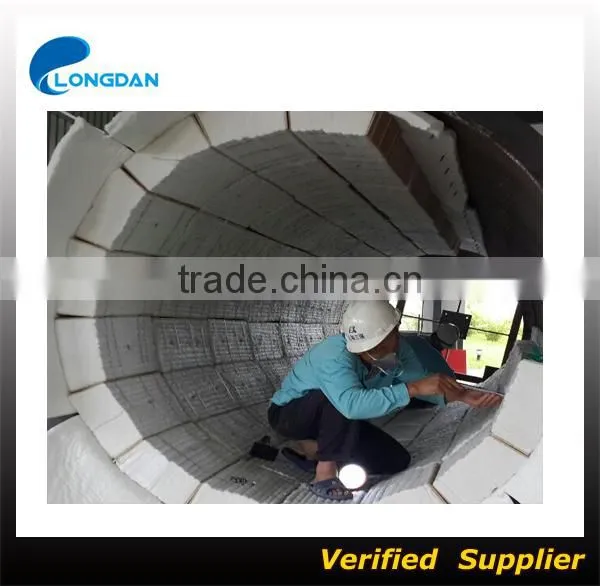

Product Application

Applications of aluminium silicate folded module



  • Shuttle kilns
  • Ethylene Furnaces
  • Convection Boxes
  • Reformers
  • Reheat Furnaces
  • Steel soaking Pit covers
  • Ladle Preheat covers
  • Forge Furnaces
  • Incinerators
Aluminium silicate moduleAluminium silicate moduleAluminium silicate moduleAluminium silicate module
