High efficiency 50L-28000L spice mixer machine/blender
OFFICIAL WEBSITE: WWW.ASIAMIXER.COM
Company brief introduction
Zhengzhou Jin Tai Metal Materials Co., Ltd. is a professional manufacturer for mixing machine. We are an ambitious company with personality and strong ability in R&D. The double movement mixing principle that we proposed has greatly improved efficiency and save more energy. At present 3 series mixer machines that we have created all have independent intellectual property rights and national patent rights. Our innovative mixing principle is considered at the forefront of mixing technology.
Product introduction
JINHE®JHX series cross revolving shaft double movement mixing machine, its mainly acting part is made up of revolving double cones container which is placed declining, plus external revolving axis and internal helical blades components. Components with different revolving speed are driven by one power system. Between the helical blade's revolving axis and container it is sealed by special sealing components. When discharge material, customer can operate positive shake or reverse shake button on the panel to make container local shake and the revolving blade will speed up the discharging. All contact parts of this machine are made of high quality stainless steel.
1st .The two functions of container revolving around slant axis are completely eliminate dead angle on the bottom of container and make mixtures convected left and right, up and down to participate mixing directly.
2nd .Relatively fast speed helical blades play major role in mixing. Moreover, the helical blades including inside and outside blades. When inside blades revolving, the mixtures can be stirred in vertical direction meanwhile stirred from middle position to two sides. So our machine can mix materials more uniformly. Furthermore, the functions of helical blades' cutting, striking and so on. After strict test, in the field of mixing metal alloy powder which has very strict requirement, if customer use traditional V shape mixer, it will take 24 hours to meet mixing criterion, but customer who use our mixer will only take 4 hours before meeting standard. If the powders are ordinary type, 10 minutes will be okay.
3rd .This series machine has better mixing effect for powders which has big difference in specific gravity. Because the revolving helical blades inside this machine have down force to powder, floating light powder can be pressed down into the heavy powder and mixed completely.

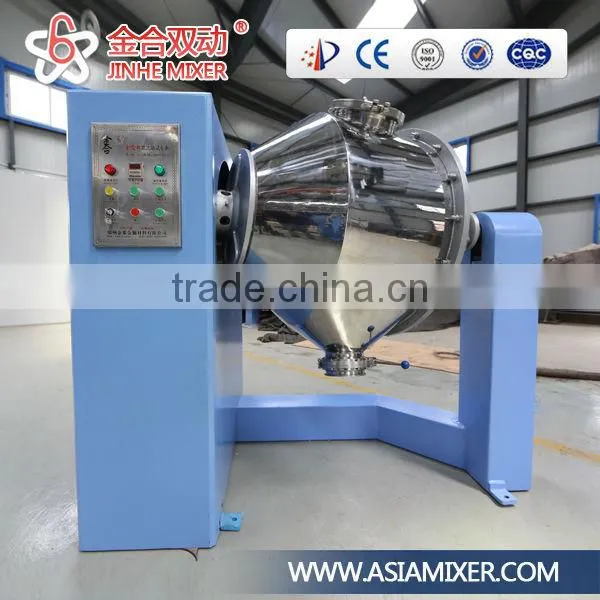

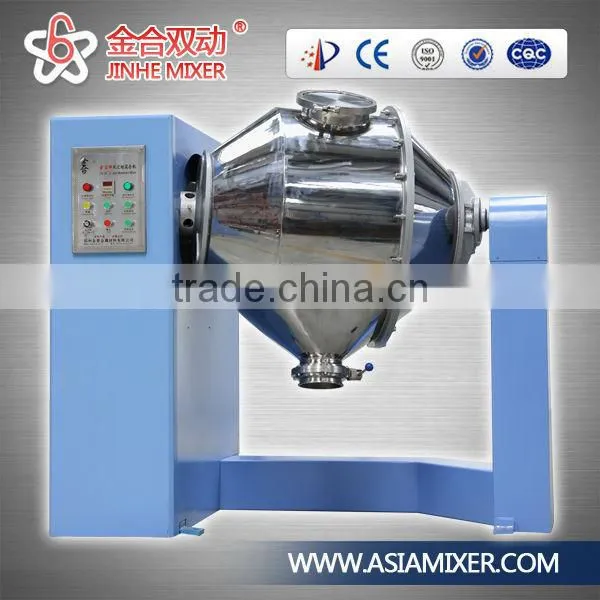

JINHE®JHX series picture

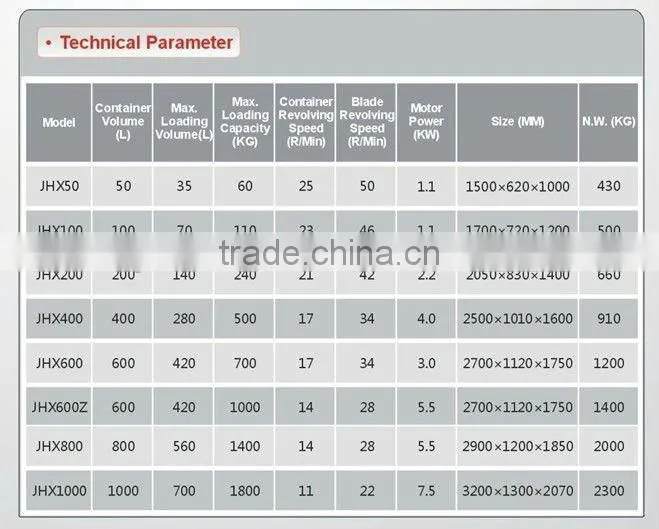

Model |
Barrel Capacity (L) |
Max Barrel Capacity (L) |
Max Barrel Weight Capacity(kg) |
Barrel Revolution Speed |
Blade Revolution Speed |
Motor Power |
Size (mm) |
Weight |
JHX50 |
50 |
35 |
60 |
25 |
50 |
1.1 |
1500×620×1000 |
430 |
JHX100 |
100 |
75 |
110 |
23 |
46 |
1.1 |
1700×720×1200 |
500 |
JHX200 |
200 |
140 |
240 |
21 |
42 |
2.2 |
2050×830×1400 |
660 |
JHX400 |
400 |
280 |
500 |
17 |
34 |
3.0 |
2500×1010×1600 |
910 |
JHX600 |
600 |
420 |
700 |
17 |
34 |
4.0 |
2700×1120×1750 |
1200 |
JHX600Z |
600 |
420 |
1000 |
14 |
28 |
5.5 |
2700×1120×1750 |
1400 |
JHX800 |
800 |
560 |
800 |
14 |
18 |
5.5 |
2900×1200×1850 |
2000 |
JHX1000 |
1000 |
700 |
1000 |
11 |
22 |
7.5 |
3200×1300×2070 |
2300 |
This is a new Created powder mixer in the word.
Zhengzhou Jintai Metal Material Co.,Ltd is an innovative manufacturer for Mixing machine.JIN HE® JHX series double movement mixer is a national patent product and has proprietary intellectual property rights.it is used for the homogeneous mixing of powders or different components with differing specific weights and particle sizes.
Compared with tridimensional mixer,double cones mixer and V type mixer,our mixer has double movement systems(barrel rolls in horizon axis while the blades inside the barrel blends in oblique axis) which means it can mix materials more efficiently and 100% no dead angle. As customers test the innovative mixing machine we created has amazing performance, the advantages of our double movement mixer are
High quality in mixing effect,100% no dead angle
High capacity(the charging rate can reach to 75% for its unique operating system)
Time saving(save 50% time to meet mixing criteria)
Money saving(saving time 50%,electricity 70% and 30% space)
Digital timer for convenience usage
Office website:
Official website
For machine's video and animation please kindly paste this website address to your browser /english/news/vedio.aspx?no=55
....
