Agricultural Tractor Mounted Power Sprayer Machine for Agricutlural, Farm, Garden, Disinfection,etc.,High Quality,agriculture power spray machine
MAIN FETURES
1.Strong power, long range, wide coverage, high efficiency.
2.Ejected fine mist particles when spray the dust in the yard. As touching the float dust, it can form a wet mist quickly and drop down.
3.Flexible matched power, supporting both three-phase 380-volt and electrical generator power.

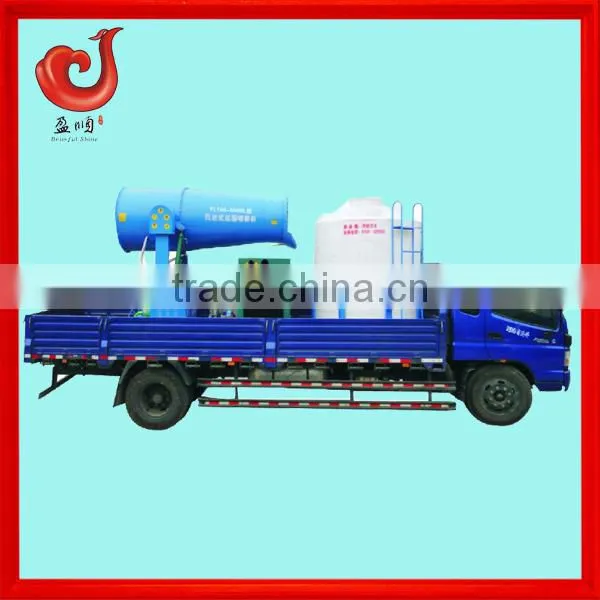

4.Flexible installation, not only can be permanently installed on elevated platforms, but also can be equipped with generator power installed in the transport vehicle.
5.Flexible operation, safety and reliability, combine remote control and manual control operations, can adjust the horizontal rotary spray angle freely.
6.Less water consumption compared to other dust suppression spraying equipment such as spray gun and watering cart, and water mist covering dust is much larger than the other dust suppression spraying equipment.
APPLICATION
The area of environmental protection industry, mining, coal yard, docks, steelworks and other dust relatively large construction site. High Quality,agriculture power spray machine for Agricutlural, Farm, Garden, Disinfection,etc
TECHNICAL PARAMETERS
| Model | WF150 |
| Dimension | 2.0*1.75*3.0m |
| Matched power | 110kw diesel engine(optional) |
| Flow rate | 60-240L/min |
| Horizontal range | 130-150m |
| Vertial range | 65-75m |
| Fan power | 55kw |
| Working pressure | 1.0-2.0MPa |
| Pitch angle(fan) | -10 degree to 40 degree |
| Rotation angle(fan) | 350 degree(adjustable) |
| Items | Dimension (m) |
Matched power (kw) |
Rated flow (L/min) |
Horizontal range (m) |
Vertial range (m) |
Fan power (kw) |
Working pressure (MPa) |
Pitch angle (degree) |
Rotation angle (degree) |
| WF60 | 1.25*1.00*2.00 | 20 | 20-80 | 50-60 | 30-38 | 7.5 | 1.0-2.0 | -10-40 | 350 |
| WF80 | 1.55*1.20*2.20 | 24 | 20-120 | 60-70 | 36-45 | 11 | 1.0-2.0 | -10-40 | 350 |
| WF100 | 1.60*1.40*2.50 | 50-60 | 40-160 | 80-100 | 45-55 | 30 | 1.0-2.0 | -10-40 | 350 |
| WF150 | 2.00*1.75*3.00 | 110 | 60-240 | 130-150 | 65-75 | 55 | 1.0-2.0 | -10-40 | 350 |
| WF200 | 2.00*1.72*3.10 | 250 | 80-320 | 175-200 | 75-85 | 110 | 1.0-2.0 | -10-40 | 350 |
CERTIFICATION

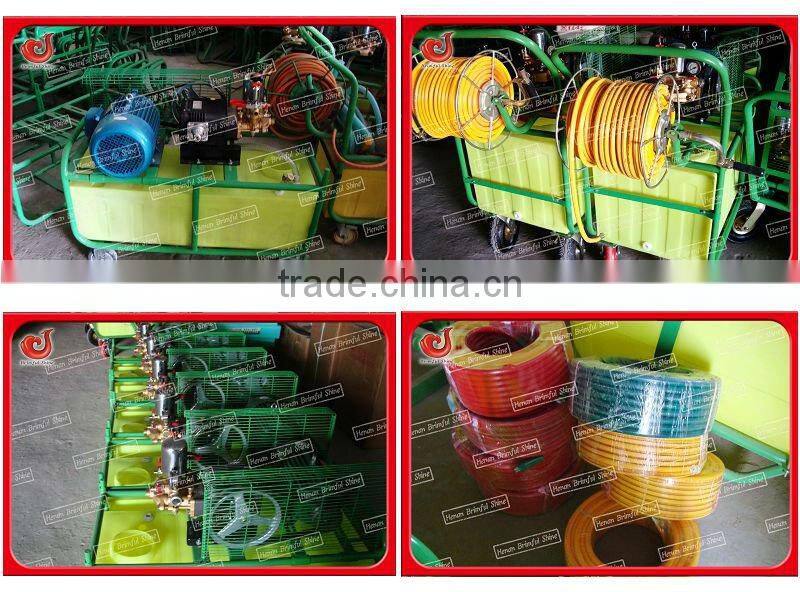

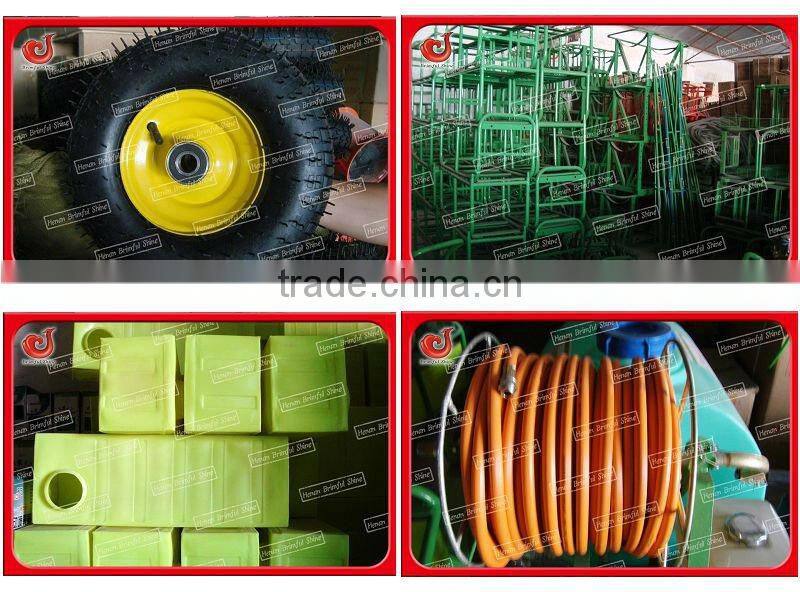

PHOTOS
OTHER SPRAYERS
Contact Information
More details please don't hesitated to contact wih me, I'm just here waiting for you!
