Specifications
Tractor mounted middle duty agri disc harrow1.Working width:1.9~3.4m
2.Working depth:12~15cm
3.Matched power:35~120hp

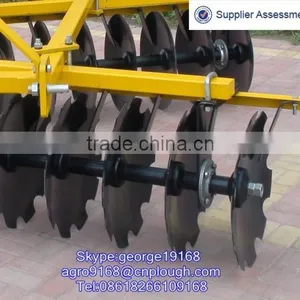

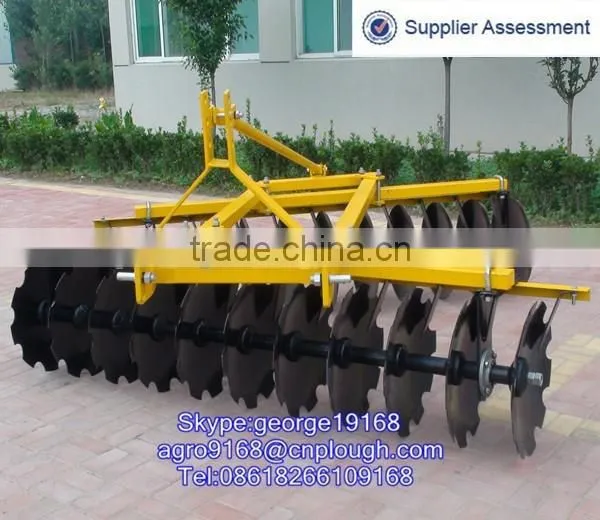

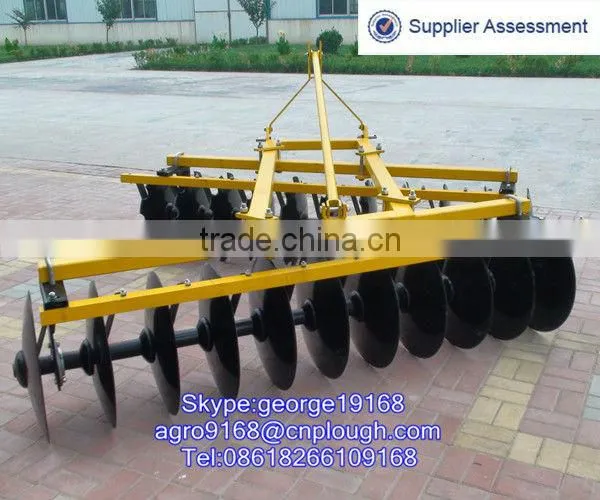

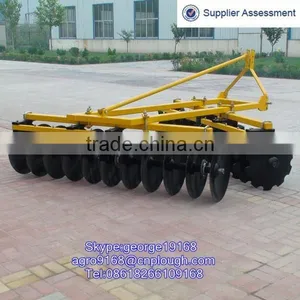

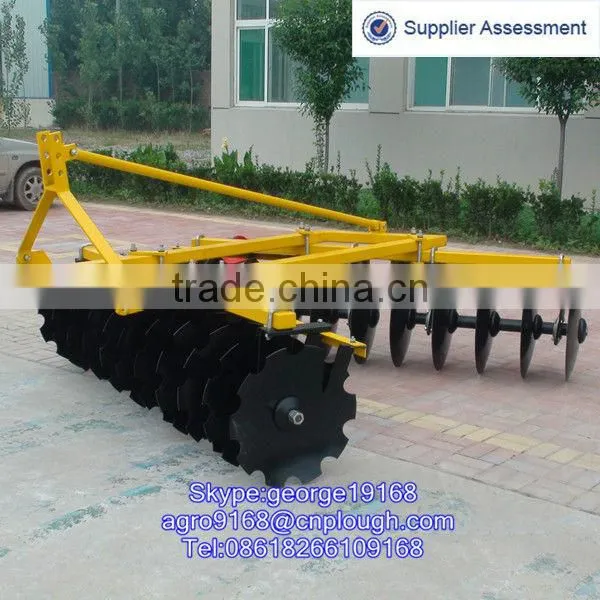

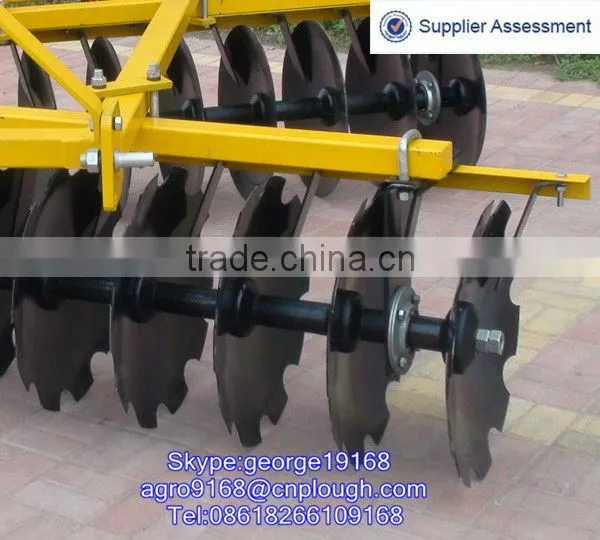

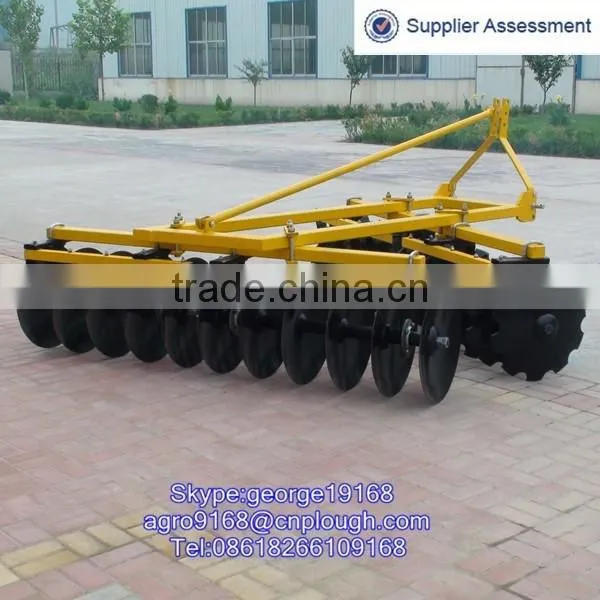

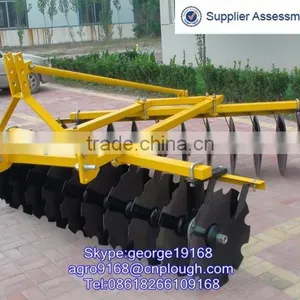

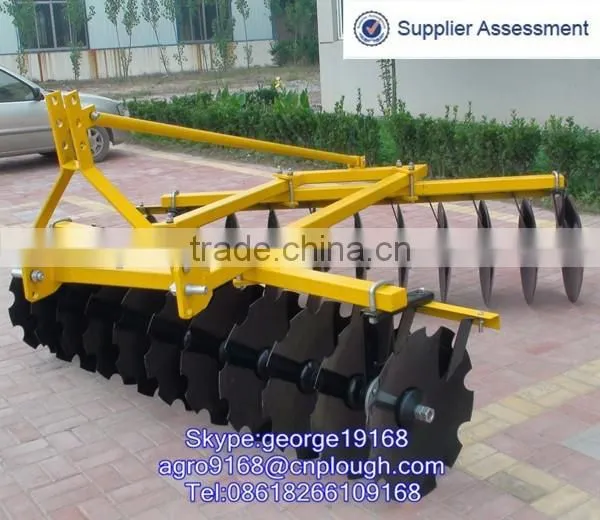

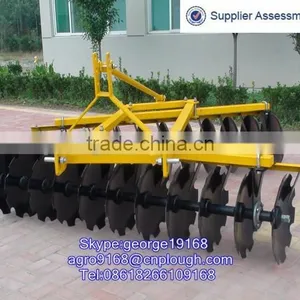

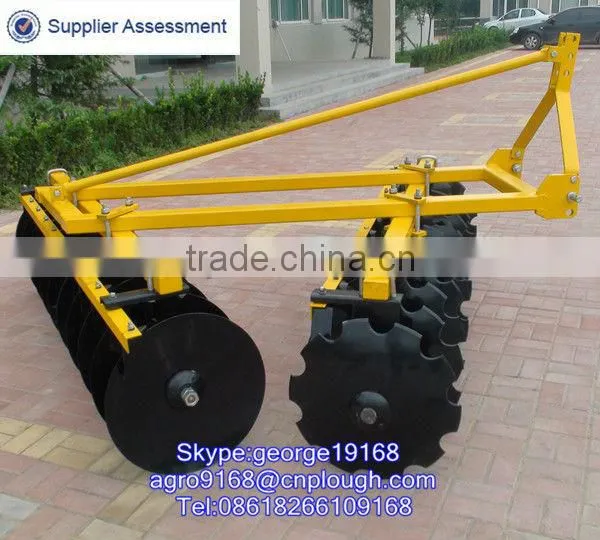

Tractor mounted middle duty agri disc harrow
1) With 18/20 /22 /24 blades is suitable for pulverizing and loosening clods after plough
and for planning the land before sowing. On cultivated land it can make soil and fertilizer mix up and clear away the stump of plants.
2) The harrow is simple in construction, durable in service, ready to operate, easy to maintain and
efficient in pulverizing and penetrating into the soil and leaves the land with a smooth. All these satisfy the agricultural requirements of intensive cultivation.
3) It may be used for cleaning away stubble of plants before tillage, or crushing clods after tillage. It may also be used as plough for primary tillage in cultivated fields.
4) Maximum harrowing depth on uncultivated land can reach 14cm.
5) The surface of the field after harrowing is level and the crushing and clearing ability of the harrow
is satisfactory.
specifications:
| Type | 1BQX-1.9 | 1BQX-2.3 | 1BQX-2.8 | 1BQX-3.4 |
| Weight (kg) | 310 | 360 | 450 | 660 |
| No. Of disc | 20 | 24 | 28 | 42 |
| Diameter of disc (mm) | 460 | 460 | 460 | 460 |
| Working width (m) | 1.9 | 2.3 | 2.8 | 3.4 |
| Working depth (cm) | 12~15 | |||
| Ground clearance(cm) | ≥230 | |||
| linkage | Standard three point mounted | |||
| Working angle | 14, 17, 20, 24 | |||
| Matched power (hp) | 35~50 | 55~65 | 75~95 | 85~120 |
