Specifications
Painting line1. high quality production line
2. widely used in social factory
Painting Line

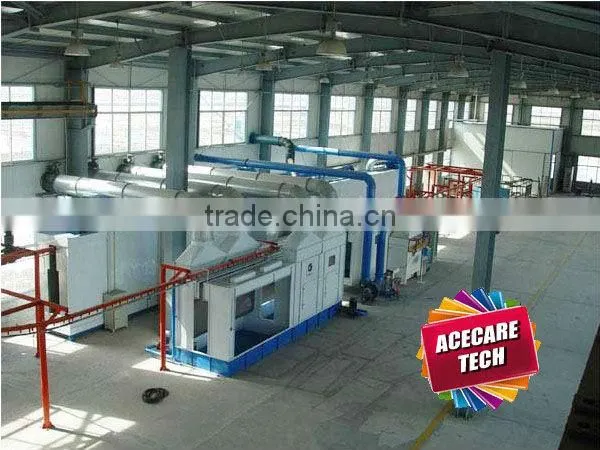

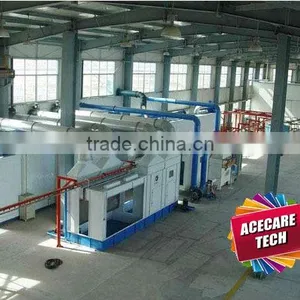

Powder coating line is a continuals working line and use to powder the steel and non-stop baking and coveying.
High efficiency.

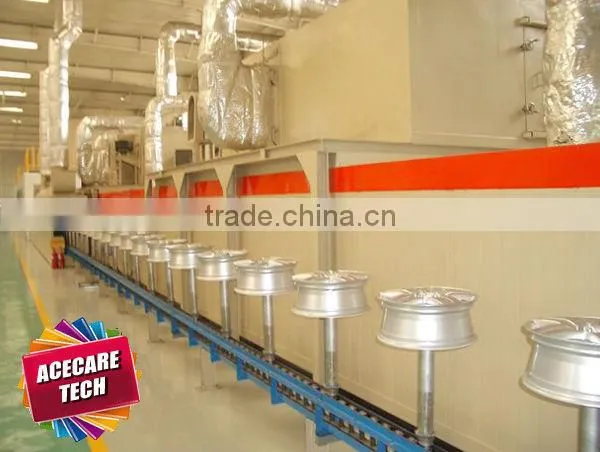

Powder curing oven
Equipment structure: chamber, hot air circulation system, temperature control system
Supporting equipment: hot air circulation fan, heating mode, temperature controller .
Electric control device

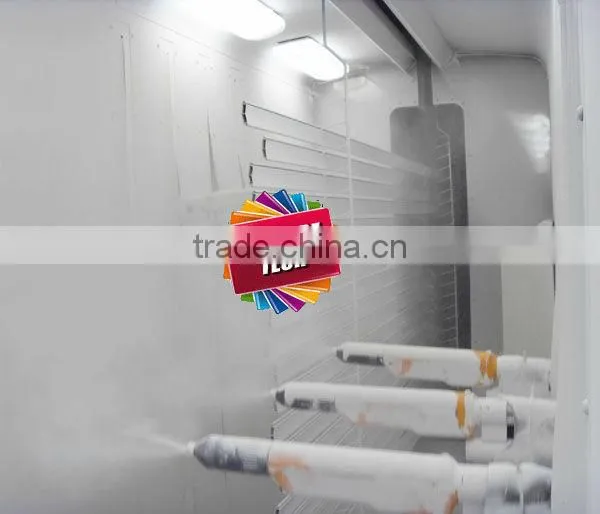

Component: spray powder control system, curing furnace, control system, hanging chain, conveying control system, the control system consumption
Basic design conditions
Serial number |
Name |
Parameters |
|
1 |
Workpiece name |
cylinders |
|
2 |
Material |
Steel parts |
|
3 |
The biggest size through |
Φ406*H1500mm(max) |
|
4 |
(max)Workpiece weigh |
170kg(max) |
|
5 |
Coating way |
Automatic spray powder + artificial fill spray |
|
6 |
Annual production
|
150000-250000 |
|
7 |
Work system
|
8 hours/class Single class system |
|
8 |
Workpiece transportation mode |
Suspension conveyor chain |
|
9 |
Conveying chain model |
XT-100 single point hanging heavy: 250 Kg |
|
10 |
Production line speed |
1.2m/min (0.5--5.0m/min adjustable) |
|
11 |
Equipment comprehensive utilization |
90% |
|
12 |
Energy |
Electricity |
220VAC; 380VAC;50Hz; Voltage fluctuation range:±10% |
Electrical heating heat source |
Drying stove: electric heating |
||
13 |
Design overview |
Includes automatic spray powder room 1, powder curing furnace 1, suspension and conveying equipment, electrical control device 1 set 1 set |
|
More information, please contact us freely
