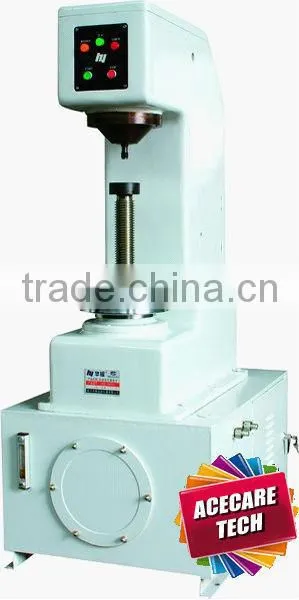

MODEL HB-3000C ELECTRONIC BRINELL HARDNESS TESTER
Feature & Use
Automatic test process, no human operating error
Large LCD screen, menu displaying, easy operation
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range: 4-650HBW
Test force: 612.9, 980.7, 1225.9, 1838.8, 2451.8, 4903.5, 7355.3, 9807, 14710.5, 29421N
(62.5,100,125,187.5,250,500,750,1000,1500,3000kgf)
Max. height of test piece: 240mm
Depth of throat: 150mm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 630 x 250 x 1000mm
Weight: Approx. 250kg
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each
Brinell standardized block: 2 pcs.
20X Readout microscope: 1 pc.
