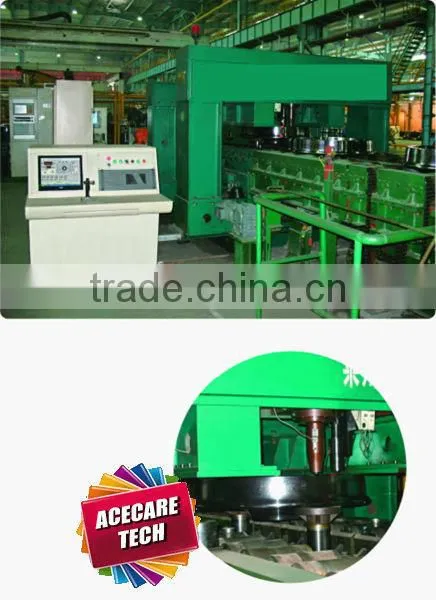

MODEL HBMT-3000 GATE TYPE
ON-LINE AUTOMATIC BRINELL HARDNESS TESTER
Feature & Use
Precise positioning device for workpiece which can realize the accurate positioning of test point.
The workpiece can be clamped automaticall, this can help eliminate the influence to hardness testing caused by the shake on the working spot.
Full automatic test force closed loop control system, test force is stable and reliable.
CCD automatic indentation capturing and automatic measuring, no need for human operation.
The upper and lower limits of hardness are preset in software. It can differentiate whether the test point is eligible or not. It also has the function of alarm in sound and light.
The testing conditions can be preset(including testing material type, workpiece name, date, operator name, etc.) .
Test data can be saved in database for query at anytime.
There are many sensors built in whole on-line testing process which can finish the movement of workpiece and hardness testing automatically, no need for human operation.
This equipment is mainly used to determine the Brinell hardness of large workpieces (such as large wheel) in batches.
Specifications
Test force: 29420N( 3000kgf) [optional 7355N(750kg) or 9807N(1000kgf)]
Max. height of test piece: 240mm(adjustable according to actual condition)
Measuring range: 96-650HBW
Test force loading and unloading type: Hydraulic loading and unloading automatic
Hardness indicating type: Four digits shown on PC
Record type: Communication protocol and database
Movable range of indenter in left-right direction: 50mm (extendable)
Online single point testing cycle: 60 seconds
Language: Chinese/English
Power supply: 380V AC, three phases/220V AC, single phase, 50Hz
Dimensions (for reference only): Main machine --- 1980 x 2630 x 2252mm
Weak current cabinet --- 1085 x 960 x 1135mm
Heavy current cabinet --- 700 x 350 x 1700mm
Hydraulic station --- 1200 x 1000 x 1560mm
Weight: Approx. 10000kg
