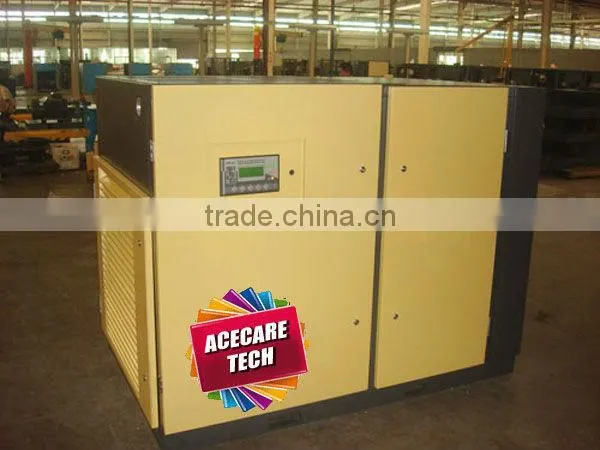

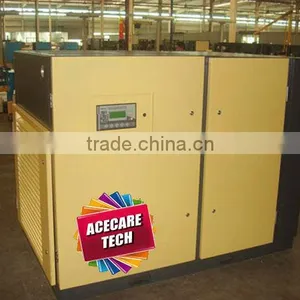

Electric Fixed Type Screw Air Compressor
1.The instrument panel is equipped with four pressure gauge, Compressor oil temperature gauge.
2.The compressor to the pressure automatic unloading.
3.Compressor overpressure automatic halting.
4.According to the needs of the user can adjust the exhaust pressure in the rated pressure
THE MAIN TECHNICAL PARAMETERS OF THE COMPRESSOR
1,Media:AIR
2,The Compressor:KSV-8/200DG Electric fixed type air compressor
3,Structure form:Forced air cooling
4,Compressed series:Four stage compression
5,The levels of bore mm:one-level 260*2,two-level140*2,three70*2,four 35*2
6,The Nominal Volume Flow m³/min: 8
7,The suction pressure :Mpa(G): Atmos
8,The exhaust pressure:Mpa(G): 20.0
9,The suction temperature°C:≤40
10,The gas temperature°C:≤180
11,The rotating speed of the compressor r/min: 980
12,Transmission mode:Direct coupling
13,Control mode:To pressure automatic unloading. Overpressure alarm shutdown. Automatic
Electronic emission.
14,Lubrication:Splash lubrication
15,Installation:Electric fixed (no hood)
16,Consumption of lubricating oil:120/h
17,Noise dB(A):≤90
18,Equipped with power : Y355L-6 160KW/980turn
19,Travel:120mm
20,Dimensions(length×width×height)mm: 3500 ×1500×1500
21,Weight kg: 3500
