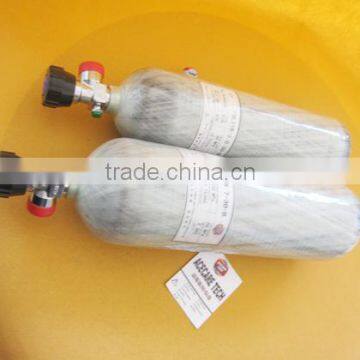

4.7L Composite Cylinder Fully Wrapped Carbon Fiber Gas Cylinder Breathing Cylinder
US$ 130 - 160
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Material:
Composite Material
Use:
Other, breathing
Pressure:
High
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure 4.7L-30MPa SCUBA Diving Tank With Wholesale PriceUS$ 100 - 390MOQ: 1 Piece -
4.7L-30mpa Carbon Fiber Fully Wrapped Composite Tank Gas Cylinder Air CylinderUS$ 130 - 160MOQ: 100 Pieces
-
4.7L, 6.8L Composite Cylinder, Hpa Scuba CylinderUS$ 100 - 300MOQ: 100 Pieces
-
High Pressure Carbon Fiber Gas Cylinder, 4.7L Composite Gas Cylinder,US$ 120 - 300MOQ: 100 Pieces
-
Carbon Fiber Composite Gas Cylinder, 4.7L Composite Tank,scuba Cylinder, Carbon Fiber CylinderUS$ 135 - 180MOQ: 100 Pieces
Material
Composite Material
Use
Other, breathing
Pressure
High
Place of Origin
Liaoning, China
Brand Name
ACECARE TECH
Model Number
CRPIII-125-4.7-30-T

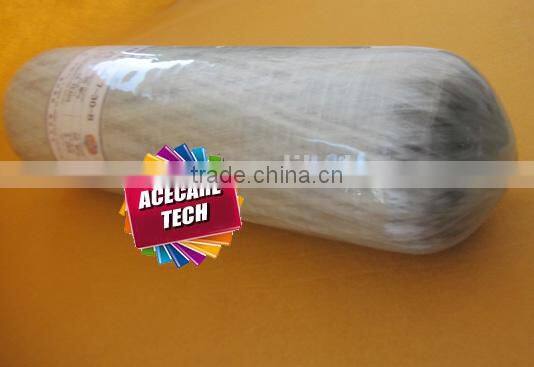

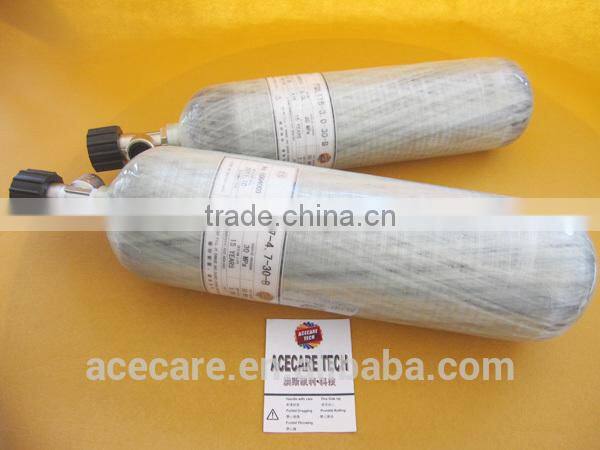

4.7L composite fully wrapped carbon fiber gas cylinder
Composite tank liners are made of high quality 6061 aluminum alloy materials. The manufacturing procedure includes punching, drawing, heat treatment, CNC flow forming spinning, inner surface treatment, etc. The wall thickness is uniform with little difference. The shape of shoulder and base are produced with high precision and consistency. Anodic oxidation treatment gives the inner surface better corrosion resistance performance. Cylinder winding layers are made of imported superior quality carbon fibers, epoxy and other materials and are manufactured through the procedures of CNC winding, high temperature curing, etc.
| Carbon Fiber Composite Cylinder lined with Aluminium Alloy | |||||
| Part No. | Water Capacity | Empty Weight | Diameter | Length | Working Pressure |
| (liters) | (kg) | ( mm) | (mm) | (MPa) | |
| CRPIII-54-0.35-30-T | 0.35 | 0.45 | 60 | 233 | 30 |
| CRPIII-54-0.5-30-T | 0.5 | 0.6 | 60 | 310 | |
| CRPIII-92-1.5-30-T | 1.5 | 1.3 | 101 | 324 | |
| CRPIII-106-2.0-30-T | 2 | 1.6 | 118 | 330 | |
| CRPIII-106-3.0-30-T | 3 | 2 | 115 | 454 | |
| CRPIII-125-3.0-30-T | 3 | 2 | 136 | 352 | |
| CRPIII-125-4.7-30-T | 4.7 | 3 | 137 | 492 | |
| CRPIII-145-6.8-30-T | 6.8 | 3.9 | 157 | 533 | |
| CRPIII-161-9.0-30-T | 9 | 5.1 | 174 | 570 | |
| CRPIII-182-12-30-T | 12 | 6.5 | 196 | 605 | |
| FQC222-20.0-30 | 20 | 12 | 222 | 770 | |
| CRPIII-93-1.2-20-T | 1.2 | 0.9 | 100 | 280 | 20 |
| CRPIII-101-1.5-20-T | 1.5 | 0.9 | 108 | 270 | |
| CRPIII-105-1.6-20-T | 1.6 | 0.9 | 113 | 268 | |
| CRPIII-106-2.0-20-T | 2 | 1.4 | 116 | 292 | |
