Specifications
1. high quality and efficiency2. mainly working for natural product extraction, separation and purification

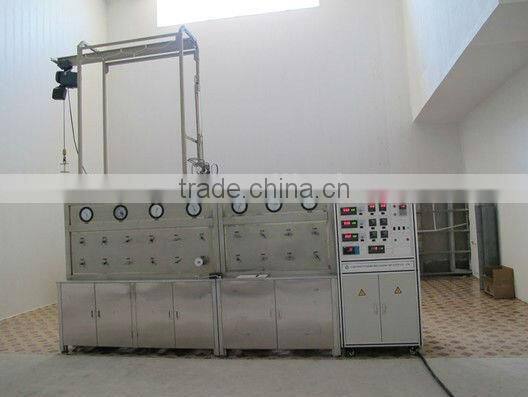

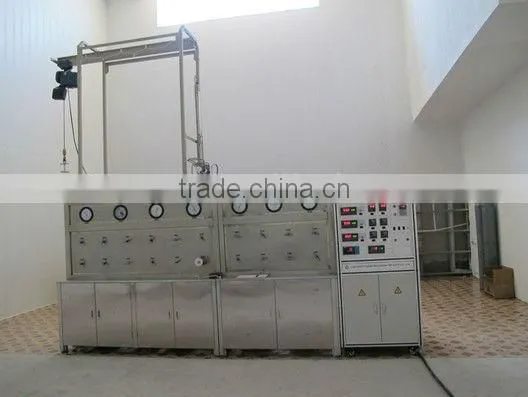

Supercritical CO2 Extraction Device
Main Introduction :

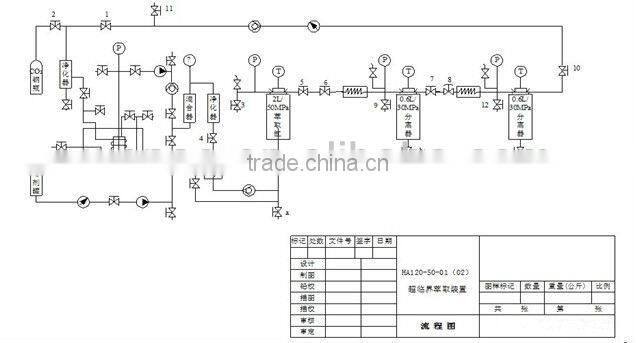

This device usually be used for material extraction under the high pressure and suitable temperature (solid or fluid), Changing conditions in the separator to parse out dissolved substances in order to achieve the purpose of separation. The device is mainly composed of : extractionkettle, Separate kettle, CO2 high-pressure pump, entrainer pump, cooling system, CO2 basin, exergy transfer system, purification system, flowmeter, temperature-controlled system, safety protection device and so on. Attached device and the system can meet the needs of the main system of supercritical extraction and flow chart of requirements
Extraction kettle:
A. Be equipped with Water jacketed circulation heating system, changeable temperature, and With solid liquid materials.
Material 1Cr18Ni9Ti
Volume 1L 1 set
Max. working pressure 50Mpa
Separate kettle.
Equipped with water jacketed circulation heating system, and changeable device
Material 1Cr18Ni9Ti
Volume 0.5L 2 sets
Max. working pressure 30Mpa
B. CO2 high pressure pump:
Flow (double plunger) Max. displacement 50L/H Adjustable frequency
Max. working pressure: 50Mpa
Pump head with cooling system
C.Entrainer pump:
Flow (double plunger) 1/4----4L/h mechanical adjustment
Max. working pressure 50MPa
D.Cooling system:
Cooling volume 3300Kca/h air cool
Temperature controlling range -5°C~+5°C
Meet the technical requirements
E.Heat transfer system
Material 1Cr18Ni9Ti
Specification Φ6×1
Max. working pressure 50MPa
Water jacketed circulation heating system, temperature is adjustable
F.Purification system:
Material 1Cr18Ni9Ti
Max. working pressure 50MPa
G.CO2 storage tank:
Material 1Cr18Ni9Ti
Volume 4L
Max. working pressure 16MPa
H . Flowmeter:
Specification: Metal tube flow meter far eastone display, display instantaneous flow and cumulative flow respectively
I.Temperature-controlled system:
Controlling range room temperature ~75°C (The adjustable (water bath)
J. Safety protection device
1. The high pressure pump discharge distribution contact pressure gauge set pressure pump overpressure automatic shutdown.
2. The extraction separation tank reactor according to the maximum working pressure, respectively with safety valve, overpressure automatic pressure release
K. Device features:
1. The extraction to axe fast open pressure ring, o-rings for the import, use cycle more than 4 months.
2. CO2 recycle
L. Other:
1. Power supply: three-phase four-wire system 380V/50HZ 10Kw
2. CO2: food-grade ≥99.5%,single bottle net weight ≥22Kg Equipped by user
3. Mounting size: 3700×2500×1600m/m, Plus operating space
The better features of equipment after comparing with similar products at home and abroad:
1.CO2 can be recycled, and be equipped with return circuit which saves gas, ensuring that the pressure of extraction kettle can be reduced under 4MPa after working, also making the Min. discharging amount. Adopt new methods of fluid distribution uniform fluid distribution, which makes CO2 fluid and solute uniform contact to speed up the dissolved, shorten extraction time, increase production
2.It adopts new method and new technology which can make CO2 residual gas in a cylinder under the net weight 1.5 Kg.
3.Each kettle has function of measuring and controlling temperature system, which can effectively control the temperature of the thermal inertia
4.Extraction cylinder adopts quick-opening structure which developed by our company. It opens very easily, sealing is reliable, and the repeatability is good when CO2 swelling. It can be use for a long time without having to replace the sealing ring, which effectively solved the difficult problem of o-rings event of CO2 expansion.
5.Pressure adjustment valve of each kettle is good at high precision, small volatility, well stability.
6.security system of double pressure protection
7.All the kettles are equipped with safe valve, implementing the overflow protection when overpressure ; In addition, the kettle is equipped with electric contact pressure table. It is good at protecting through artificially setting maximum pressure, carrying out overpressure stopping pump function.
8.The mixer is given priority to the auxiliary pump, mix them with electric contact pressure gauge, Pointers can use upper and lower limits of system pressure protection, overpressure activity pointer to pointer exposure limit, when the pump stop working
9.Extraction cylinder device has manual controlling system and automatic controlling system, making the manual and automatic dissolve into an organic whole. So that the controlling precision is greatly increased and it can reach 0.5%, the purity of the extracted components is higher
10.The extraction time is artificial for humanized design. When the equipment stops working, it can make a sound to warm the workers.
11.Function of device is complete, such as supercritical fluid extraction, supercritical fine particles preparation, determination of solubility of the solute
12.Device is running low noise, small vent noise, time is short
MODEL AND SIZE:
| Type | Specification | Pressure | Combined type |
| HA120-50-01 | 1L | 50MPa | one extracting pot-two separating pot |
| HA120-50-02 | 2L | 50MPa | one extracting pot-two separating pot |
| HA121-50-01 | 1L | 50MPa | one extracting pot-two separating pots-one column |
| HA121-50-02 | 2L | 50MPa | one extracting pot-two separating pots-one column |
| HA121-50-05 | 5L | 50MPa | one extracting pot-two separating pots-one column |
| HA121-40-24 | 24L | 40MPa | one extracting pot-two separating pots-one column |
| HA220-50-06 | 6L | 50MPa | two extracting pot-two separating pot |
| HA220-40-11 | 11L | 40MPa | two extracting pot-two separating pot |
| HA220-40-48 | 48L | 40MPa | two extracting pot-two separating pot |
| HA220-40-200 | 200L | 40MPa | two extracting pot-two separating pot |

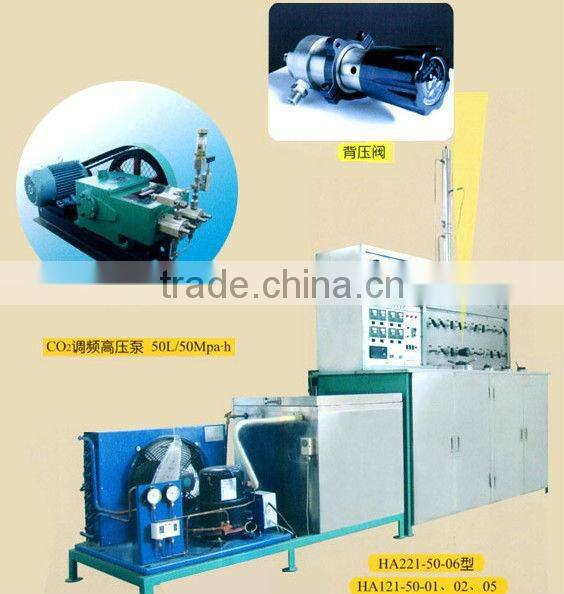

| HA221-50-06 | 6L | 50MPa | two extracting pot-two separating pots-one column |
| HA221-40-11 | 11L | 40MPa | two extracting pot-two separating pots-one column |
| HA221-40-20 | 20L | 40MPa | two extracting pot-two separating pots-one column |
| HA221-40-48 | 48L | 40MPa | two extracting pot-two separating pots-one column |
| HA221-40-100 | 100L | 40MPa | two extracting pot-two separating pots-one column |

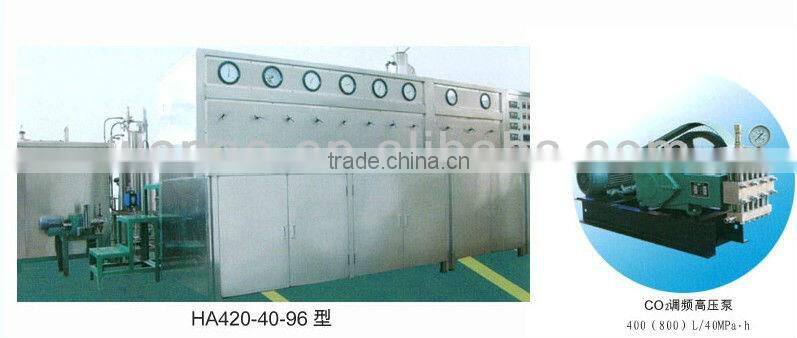

| HA420-40-96 | 96L | 40MPa | four extracting pot-two separating pot |

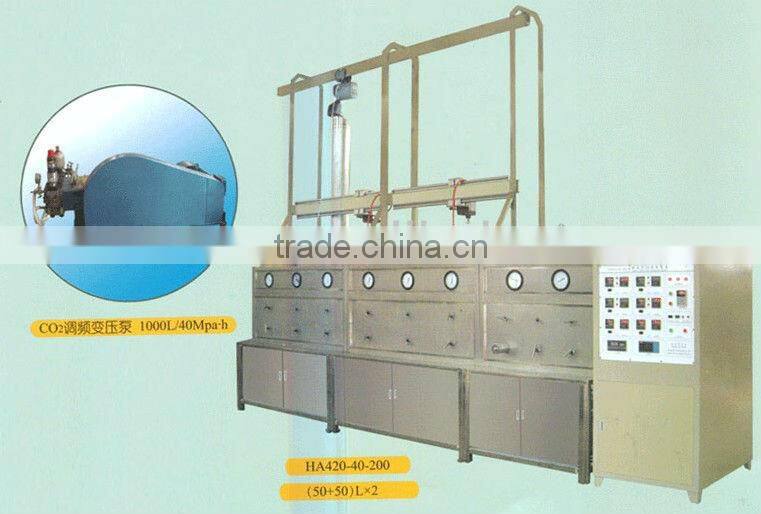

| HA420-40-200 | 200L | 40MPa | four extracting pot-two separating pot |
| HA421-40-96 | 96L | 40MPa | four extracting pot-two separating pots-one column |
