QC12Y Sheet Metal Shearing Process
US$ 2,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Wenao
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Shearing MachineUS$ 1 - 99,999MOQ: 1 Set -
Swing Beam Shearing MachineUS$ 1,000 - 80,000MOQ: 1 Set
-
QC12K-6x3200 Hydraulic Swing Beam Shearing Machine, Cnc Plate Cutting MachineUS$ 1,000 - 80,000MOQ: 1 Set
-
Q11 Series Mechanical Shearing MachineUS$ 230 - 4,500MOQ: 1 Set
-
QC12Y-6X3200 Hydraulic Shearing Machine, Flat Sheet Guillotine Shearing Machine, Flat Sheet Cutting MachineUS$ 1,250 - 3,800MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Wenao
Model Number
QC12Y-4X2500
Voltage
380V, 380V
Rated Power
5.5KW
Dimension(L*W*H)
3200X1600X1700mm
Weight
3800 kgs, 3800kgs
Certification
ISO9001:2000
Warranty
one year
After-sales Service Provided
Overseas third-party support available
Specifications
Sheet metal shearing process1 Digital display
2 1 year warranty
20 days delivey time
4 CE&ISO9001 2008 certific

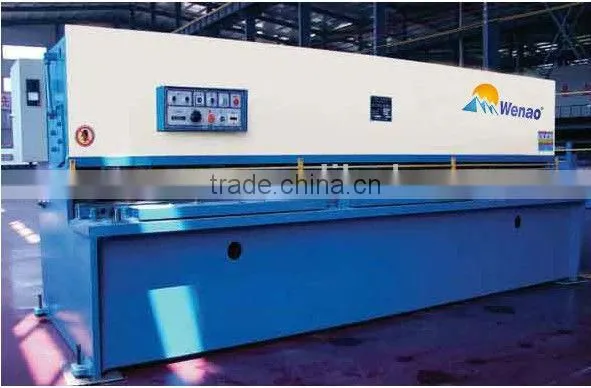

QC12Y Sheet metal shearing process
1.welded steel structure and vibratory stress relief to prevent the body deformation.
2.swing blade carrier, and the return is smooth and prompt by accumulator or nitrogen cylinder.
2.swing blade carrier, and the return is smooth and prompt by accumulator or nitrogen cylinder.
3.numerical display for blade gap, and its adjustment is fast and easy.
4.electric adjustment for back gauge, with numerical display.Also there is display for cutting number.
5.equipped with lighting device, easy for cutting.
6.reliable safety guards.
QC12Y Sheet metal shearing process
Main power (Siemens, Germany)
hydraulic elements OMEGA(U.S.A)/Bosch (Germany)
electrical elements Siemens (Germany)
The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.
to equip CNC system,you can choose the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany
.
| Type | Shearing Size | Shearing Width | Strokes | Backgauge Rang | Shearing Angle | Working Table Height | Main Power | N.Wt | Dimension |
| mm | mm | time/min | mm | (.) | mm | Kw | (kg) | (mm) | |
| QC12Y-4X2500 | 4 | 2500 | 18 | 20-550 | 1°30 | 800 | 5.5 | 3800 | 3200x1600x1700 |
| QC12Y-4X3200 | 4 | 3200 | 18 | 20-600 | 1°30 | 800 | 5.5 | 6500 | 3840x1675x1600 |
| QC12Y-4X4000 | 4 | 4000 | 18 | 20-600 | 1°30 | 800 | 5.5 | 6800 | 3840x1675x1620 |
| QC12Y-6X2500 | 6 | 2500 | 18 | 20-600 | 1°30 | 800 | 7.5 | 5100 | 3130x1530x1600 |
| QC12Y-6X3200 | 6 | 3200 | 12 | 20-600 | 1°30 | 800 | 7.5 | 7200 | 3840x1675x1620 |
| QC12Y-6X4000 | 6 | 4000 | 15 | 20-600 | 1°30 | 800 | 7.5 | 7800 | 4630x1850x1700 |
| QC12Y-6X5000 | 6 | 5000 | 10 | 20-800 | 1°30 | 800 | 9 | 13000 | 5660x2050x1950 |
| QC12Y-6X6000 | 6 | 6000 | 6 | 20-800 | 1°30 | 850 | 9 | 17000 | 6700x2200x1950 |
| QC12Y-8X2500 | 8 | 2500 | 14 | 20-600 | 1°30 | 800 | 11 | 6900 | 3240x1675x1620 |
| QC12Y-8X3200 | 8 | 3200 | 10 | 20-600 | 1°30 | 800 | 11 | 7600 | 3910x1675x1620 |
| QC12Y-8X4000 | 8 | 4000 | 8 | 20-600 | 1°30 | 800 | 11 | 9400 | 4680x1850x1700 |
| QC12Y-8X5000 | 8 | 5000 | 7 | 20-800 | 1°30 | 800 | 11 | 14500 | 5700x2050x1950 |
| QC12Y-8X6000 | 8 | 6000 | 6 | 20-800 | 1°30 | 850 | 15 | 22500 | 6850x2200x2230 |
