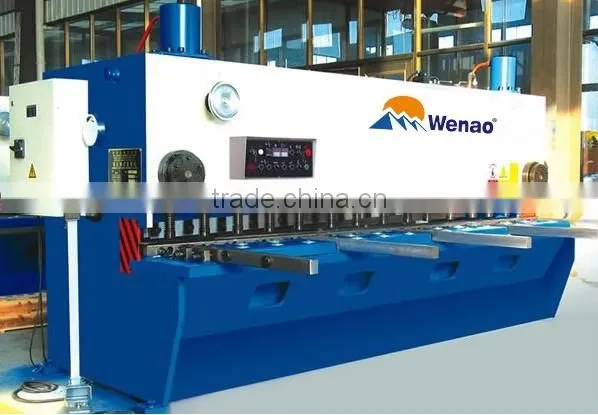

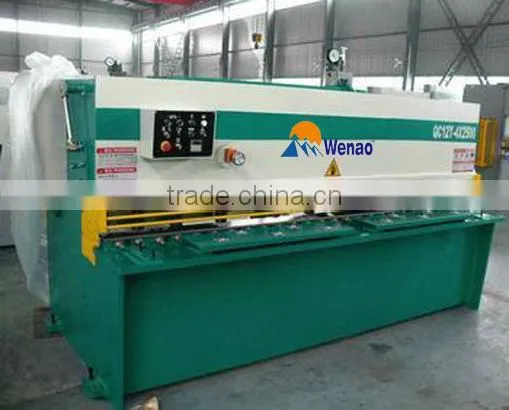

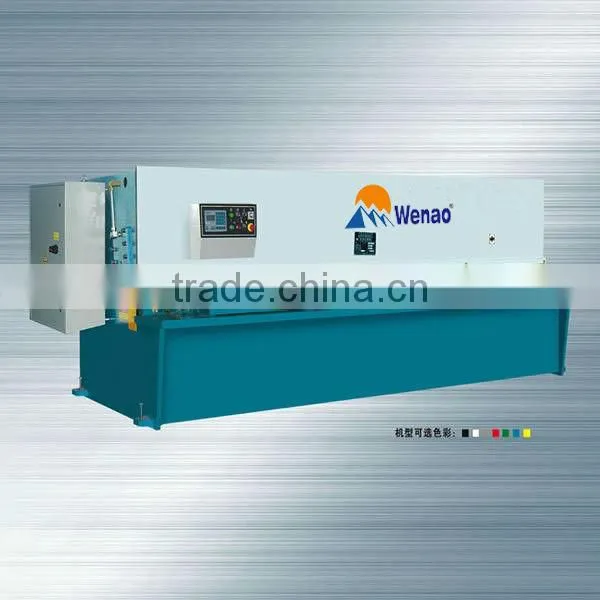

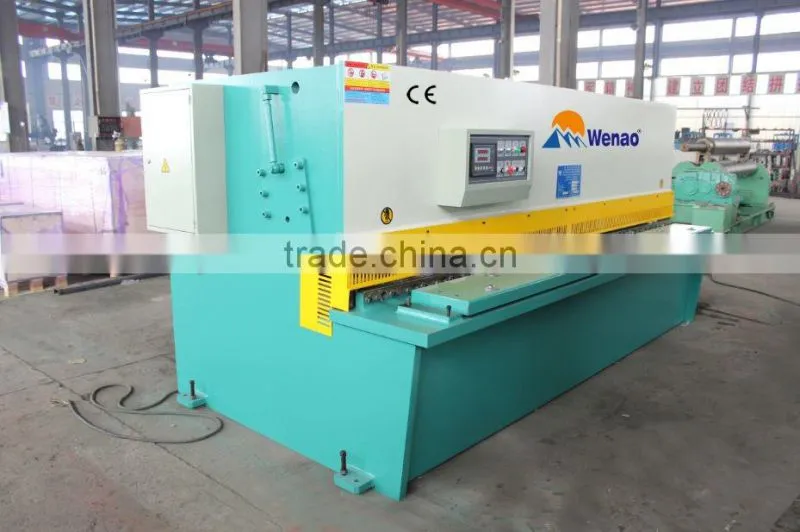

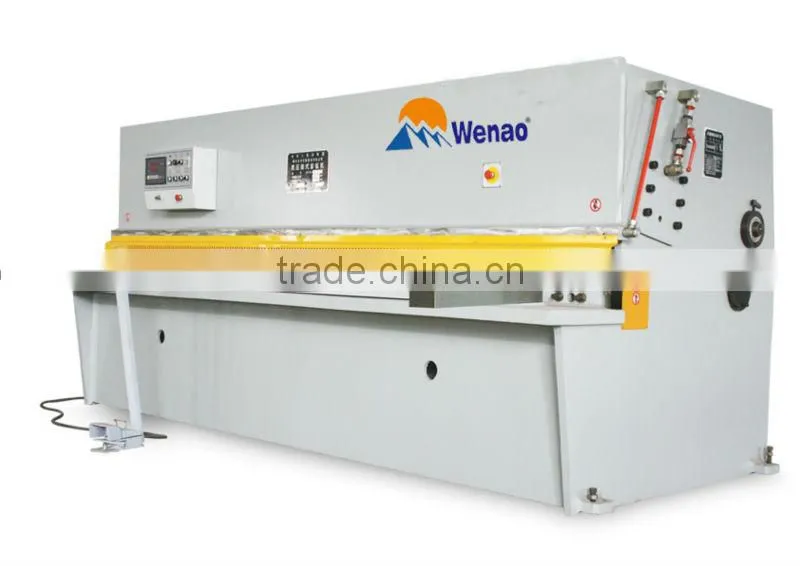

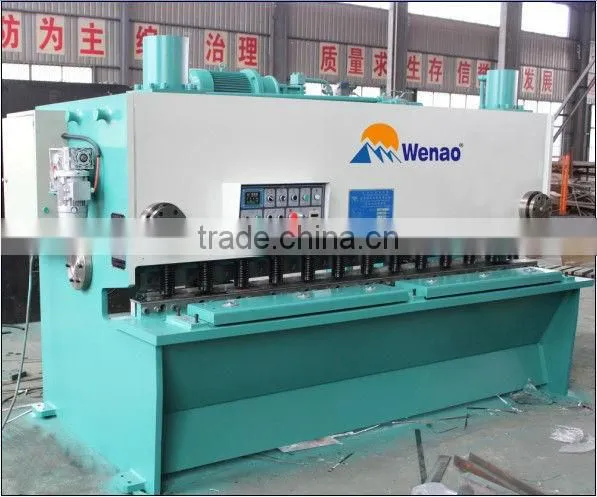

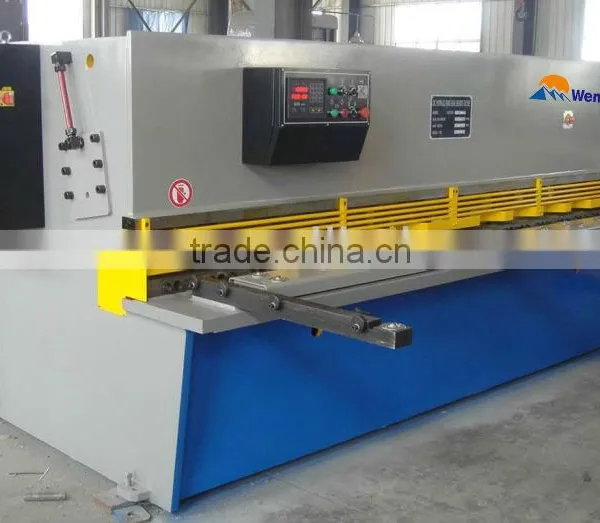

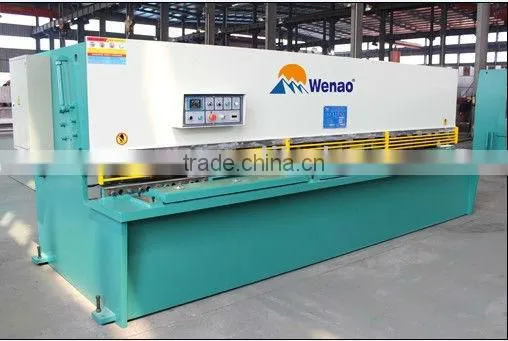

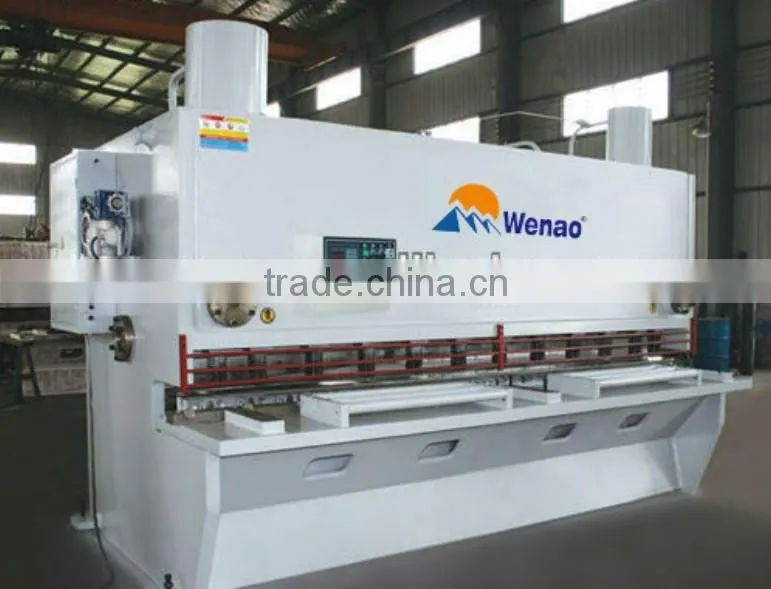

Hydraulic swing beam shearing machine, hydraulic iron cutting machine manufacturer, Hydraulic metal sheet cutter, Hydraulic metal sheet cutter, QC12y-6x3200 hydraulic shearing machine, Hydraulic swing beam
Specifications
1.Steel welded frame
2.Back gauge fast adjustable
3.Manual fine adjustment, counter display
4.ESTUN E200-S system optional
backgauge and the shearing time.
Main power (Siemens, Germany)
hydraulic elements OMEGA(U.S.A)/Bosch (Germany)
electrical elements Siemens (Germany)
Performance:
1. Steel-welded strucure, vibration to receive stress, good rigidity, sturdy and durable. The topblade swings beam under hydraulic drive and it returns with Nitrogen cylinder' shelp, steady & reliable performance.
2. The value of blade clearance is indicated by dial, the position of low blade can be adjusted portbly and promptly
3. The blade stroke can be adjusted steplessly
4. Adopt the motorized backgauge. The display devices are on the front of the machine which is used to indicate the value of
backgauge and the shearing time.
The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.
to equip CNC system,you can choose the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany.
| Type | Shearing Size | Shearing Width | Strokes | Backgauge Rang | Shearing Angle | Working Table Height | Main Power | N.Wt | Dimension |
| QC12Y-6X2500 | 6 | 2500 | 18 | 20-600 | 1°30 | 800 | 7.5 | 5100 | 3130x1530x1600 |
| QC12Y-6X3200 | 6 | 3200 | 12 | 20-600 | 1°30 | 800 | 7.5 | 7200 | 3840x1675x1620 |
| QC12Y-6X4000 | 6 | 4000 | 15 | 20-600 | 1°30 | 800 | 7.5 | 7800 | 4630x1850x1700 |
| QC12Y-6X5000 | 6 | 5000 | 10 | 20-800 | 1°30 | 800 | 9 | 13000 | 5660x2050x1950 |
| QC12Y-6X6000 | 6 | 6000 | 6 | 20-800 | 1°30 | 850 | 9 | 17000 | 6700x2200x1950 |
| QC12Y-8X2500 | 8 | 2500 | 14 | 20-600 | 1°30 | 800 | 11 | 6900 | 3240x1675x1620 |
| QC12Y-8X3200 | 8 | 3200 | 10 | 20-600 | 1°30 | 800 | 11 | 7600 | 3910x1675x1620 |
| QC12Y-8X4000 | 8 | 4000 | 8 | 20-600 | 1°30 | 800 | 11 | 9400 | 4680x1850x1700 |
| QC12Y-8X5000 | 8 | 5000 | 7 | 20-800 | 1°30 | 800 | 11 | 14500 | 5700x2050x1950 |
| QC12Y-8X6000 | 8 | 6000 | 6 | 20-800 | 1°30 | 850 | 15 | 22500 | 6850x2200x2230 |
| QC12Y-10X2500 | 10 | 2500 | 12 | 20-600 | 1°40 | 800 | 11 | 8000 | 3200x2050x1950 |
| QC12Y-10X3200 | 10 | 3200 | 10 | 20-600 | 1°40 | 800 | 15 | 9400 | 3950x1850x1950 |
| QC12Y-10X4000 | 10 | 4000 | 8 | 20-600 | 1°40 | 800 | 15 | 11500 | 4680x2050x2230 |
| QC12Y-10X5000 | 10 | 5000 | 7 | 20-800 | 1°40 | 800 | 18.5 | 17500 | 5750x2400x2350 |
| QC12Y-10X6000 | 10 | 6000 | 6 | 20-600 | 1°40 | 850 | 18.5 | 22000 | 6900x2400x2350 |
What is your machine quality ?
- Answer: We accept SGS to check our quality before shipping.
How to do if the machine is broken ?
- Answer: Free repair within one year.
What is your payment terms ?
- Answer: 30% advance payment,70% against copy of B/L(after shipping).
- How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
- How to check shipping cost from China to my country?
Very simple, tell us your city or port.
- How to check imported charges or tax ?
- Call your Customer. tell them machine HS code.
Press brake and rolling machine are 84622990. shearing machine is 84623990.
- How to see our machine in your local place?
We have sold lots of machines to the world, in most situation, you can see our machine in your country, however, we can not promise 100%,so,confirm with us by email.
- How to repair&maintain our machine ?
Generally, the hydraulic machine is not easy to break. even though the problem occur, It is small problem.we can solve it through email and video.
- do you offer commissioning service?
yes, we can offer commissioning service, but, the buyer need to afford plane tickets.
- Do you offer teaching&training ?
yes, we prefer that you arrange your worker to China. or our engineer go to your country.
- what policy for broken parts?
within one year, we offer free parts.
if beyond one year, you need to buy by factory cost.
Structure and Features:
The frame is entirely welded with steel plates, and treated to remove stress by tempering. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder. The portable and prompt adjustment of the blades gap and value of gap are indicated by digital, convenient and fast. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be operation safety. The display devices of the back gauge value and the shearing times are on the front of the machine.
Standard equipment and features:
1) CE standard with side fences and rear protection guard via means of 2 light beams
2) Hinged front finger guard with limit switch
3) Siko LED DRO for back gauge + mechanical counter

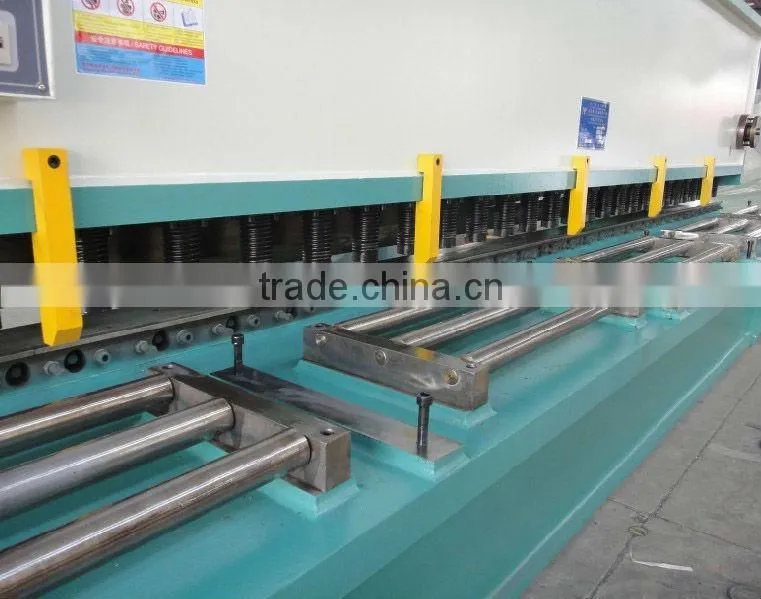

4) 2 off adjustable 1.0M squaring arm with rule and tilting stop + plate supports in between squaring arms
5) Shadow wire + shadow light, ball transfers on the table
6) Belt or shaft driven backstop stroke from 10mm to 600mm
7) Siemens electric components
8) American OMEGA valve
9) China famous motor
10) Rear roller supporting back
11) 380V/3ph/60HZ + earth, English/Spanish/Portuguese/Polish/Russian/Chinese instruction manual,maintenance manual(Incl. Hydraulic &Electrical diagrams)
Main components
-- Estun E10 Number display system-ASTUN
--Integrated hydraulic system-OMEGA-USA
--Gear pump-SHANGHAI
--NANTONG main motor-Hengli
--VALQUA seals-JAPAN
-- SIEMENS main electric parts-GERMANY
Accessory
--Front extensive arm, 5 pieces
--Anchor bolt, 4 pieces
--Nut, some pieces
--Washer, some pieces
--Oil gun, 1 piece
--Foot pedal
