Series W11Y Hydraulic 3-roller Symmetrical Plate Rolling Machine, W11Y-40x3000

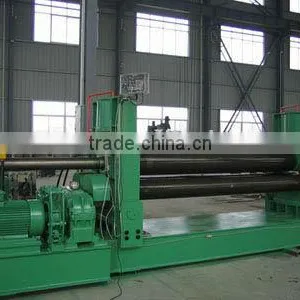

Series W11Y Hydraulic 3-roller Symmetrical Plate Rolling Machine, W11Y-40x3000 thumbnail-1
Series W11Y Hydraulic 3-roller Symmetrical Plate Rolling Machine, W11Y-40x3000 photo-1
US$ 10,000 - 82,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
wenao
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name wenao
Model Number W11Y-40X3000
Machine Type Roller-Bending Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Other, mechnical
Automation Manual
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Specifications

3-Roller hydraulic symmetrical rolling machine
1.High precision,Wide application
2.ISO9001:2008
3.High performance

3-roller symmetrical plate rolling machine, W11Y-40x3000, 3-Roller hydraulic symmetrical rolling machine, Mechical 3-roller symmetrical, Manual rolling machine


Machine Application & Usege :

 -Boiler Tank , Air Conditioning Channels, Sheet Metal Cover.

 -Cone Making & other Aluminum & Steel Fabrication, Marine & Ship Building, Pressure Vassals, Wind Mills.



Technical Features :

-Bottom roll are fixed and driven by Gears and warm Reduction Gear Box. Top Roll rotates in fixed positions and can be adjusted up & down manually by adjustable screws.

-Housing are made from M.S. Plate of suitable strength and mounted on heavy base frame. Rolls are made from forged steel and perfectly machined for accurate result.

-For longer life and smooth working of machine, Gun Metal Bushes are provide and given sufficient lubrication system.


Performance:

The construction of this machine is in the form of three roller symmetry. The top roller, in the centrl vsymmetry position over the two bottom rollers, doesvertical motion up and down through screw, nut and worm transmission. Decelerator gears bottom rollers providing torsion moment for coiling sheet metal. The construction of the machine is compact and the operation and maintenance is convenient.





Specification Max thickness of coiled plate Max width of coiled plate Yielding limit of sheet metal Coiling speed Min full loading diameter of coiled plate Diameter of top shaft Diameter of Bottom shaft Central distance between bottom shafts Motor power Hydraulic power
mm mm mm m/min mm mm mm mm KW KW
W11Y-25*2500 25 2500 245 4 1200 370 300 480 22 7.5
W11Y-25*3000 25 3000 245 4 1200 430 370 550 30 11
W11Y-30*2000 30 2000 245 4 1200 360 290 480 22 7.5
W11Y-30*2500 30 2500 245 4 1200 420 360 550 30 11
W11Y-30*3000 30 3000 245 4 1200 450 390 600 30 11
W11Y-40*2500 40 2500 245 3.5 1400 500 400 600 37 15
W11Y-40*3000 40 3000 245 3.5 1600 540 440 600 45 18.5
W11Y-50*3000 50 3000 245 3.5 2000 580 480 750 55 22
W11Y-60*3000 60 3000 245 3.5 2400 660 560 800 75 30
W11Y-70*3000 70 3000 245 3.5 2800 710 620 850 90 37
W11Y-80*3000 80 3000 245 3.5 3200 770 680 900 90 37
W11Y-90*3000 90 3000 245 3.5 3600 820 730 950 110 45
W11Y-100*3000 100 3000 245 3.5 4000 860 770 1000 110 45
W11Y-110*3000 110 3000 245 3.5 4400 900 810 1080 132 55
W11Y-120*3000 120 3000 245 3.5 4800 950 860 1160 132 55

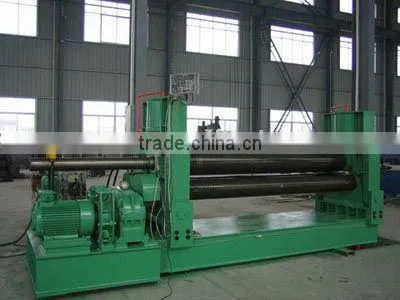

                                     Series W11Y hydraulic 3-roller symmetrical plate rolling machine, W11Y-40x3000
