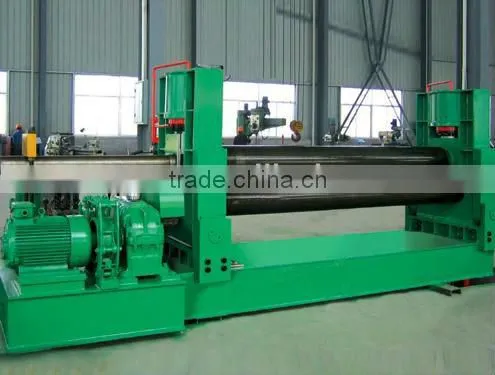

Symmetrical W11Y Series Three Roller Hydraulic Rolling Machine
US$ 2,000 - 68,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mechanical Three-roller Symmetrical Rolling Machine, W11-12x3200US$ 1,000 - 248,000MOQ: 1 Set -
Mechanical 3-roller Plate Rolling Machine,3-roller Symmetrical Rolling MachineUS$ 10,000 - 99,999MOQ: 1 Set
-
Three Roller Roll Forming Machine/W11Y Series 3 Roller Symmetrical Hydraulic Rolling MachineUS$ 20,000 - 35,000MOQ: 1 Set
-
W12NC 4-roller Plate Rolling Machine,W12NC-10*2000 Rolling Machines With 4-RollerUS$ 2,000 - 80,000MOQ: 1 Set
-
CNC 4-roller Bending Machine,W12NC 4-roller Plate Rolling Machine, Rolling MachineUS$ 1,000 - 59,999MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
WENAO
Model Number
W11Y-50X3000
Machine Type
Roll Forming Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Other, Hydraulic, 45 kw
Automation
Automatic
Extra Services
Machining
Certification
Other, ISO 9001:2000 CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
W11Y Hydraulic three rollerCone device
Up driver roller
Pre-bending function
ISO&CE,convenient maintenance
Symmetrical W11Y Series three Roller Hydraulic Rolling Machine, W11Y Hydraulic three roller, Specification plate bending machine, Plate rolling machine
Performance:
The construction of this machine is in the form of three roller symmetry. The top roller, in the central symmetry position over the two bottom rollers, does vertical motion up and down through screw, nut and worm transmission. Decelerator gears bottom rollers providing torsion moment for coiling sheet metal. The construction of the machine is compact and the operation and maintenance is convenient.
| Specification | Max thickness of coiled plate | Max width of coiled plate | Yielding limit of sheet metal | Coiling speed | Min full loading diameter of coiled plate | Diameter of top shaft | Diameter of Bottom shaft | Central distance between bottom shafts | Motor power | Hydraulic power |
| mm | mm | mm | m/min | mm | mm | mm | mm | KW | KW | |
| W11Y-25*2500 | 25 | 2500 | 245 | 4 | 1200 | 370 | 300 | 480 | 22 | 7.5 |
| W11Y-25*3000 | 25 | 3000 | 245 | 4 | 1200 | 430 | 370 | 550 | 30 | 11 |
| W11Y-30*2000 | 30 | 2000 | 245 | 4 | 1200 | 360 | 290 | 480 | 22 | 7.5 |
| W11Y-30*2500 | 30 | 2500 | 245 | 4 | 1200 | 420 | 360 | 550 | 30 | 11 |
| W11Y-30*3000 | 30 | 3000 | 245 | 4 | 1200 | 450 | 390 | 600 | 30 | 11 |
| W11Y-40*2500 | 40 | 2500 | 245 | 3.5 | 1400 | 500 | 400 | 600 | 37 | 15 |
| W11Y-40*3000 | 40 | 3000 | 245 | 3.5 | 1600 | 540 | 440 | 600 | 45 | 18.5 |
| W11Y-50*3000 | 50 | 3000 | 245 | 3.5 | 2000 | 580 | 480 | 750 | 55 | 22 |
| W11Y-60*3000 | 60 | 3000 | 245 | 3.5 | 2400 | 660 | 560 | 800 | 75 | 30 |
| W11Y-70*3000 | 70 | 3000 | 245 | 3.5 | 2800 | 710 | 620 | 850 | 90 | 37 |
| W11Y-80*3000 | 80 | 3000 | 245 | 3.5 | 3200 | 770 | 680 | 900 | 90 | 37 |
| W11Y-90*3000 | 90 | 3000 | 245 | 3.5 | 3600 | 820 | 730 | 950 | 110 | 45 |
| W11Y-100*3000 | 100 | 3000 | 245 | 3.5 | 4000 | 860 | 770 | 1000 | 110 | 45 |
| W11Y-110*3000 | 110 | 3000 | 245 | 3.5 | 4400 | 900 | 810 | 1080 | 132 | 55 |
| W11Y-120*3000 | 120 | 3000 | 245 | 3.5 | 4800 | 950 | 860 | 1160 | 132 | 55 |
