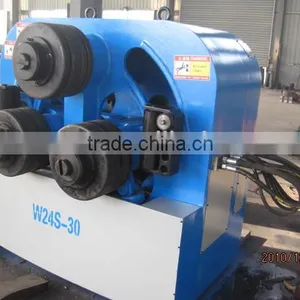

Section Stell Bending Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tube Rolling MachineNegotiableMOQ: 1 Unit -
Pipe Bending MachineUS$ 1 - 99,999MOQ: 1 Set
-
W24S-30 Hydraulic Pipe Bending Machine,section Bending MachineUS$ 100 - 10,000MOQ: 1 Set
-
Metal Sheet Profile Bending Machine/aluminium Profile Cutting Machine/profile Press BrakeUS$ 1 - 99,999MOQ: 1 Set
-
Hydraulic Profile Bending Machine/aluminium Profile Machine/aluminium Profile Making Machine/metal Profile MachineUS$ 1 - 99,999MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
WENAO
Model Number
W24S-16
Machine Type
Roll Forming Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Other, metal
Power
Hydraulic
Automation
Automatic
Extra Services
Machining
Certification
Other, ISO 9001:2000 CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

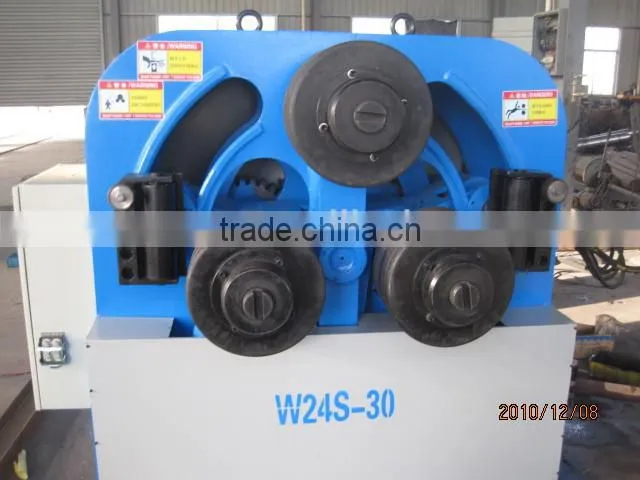

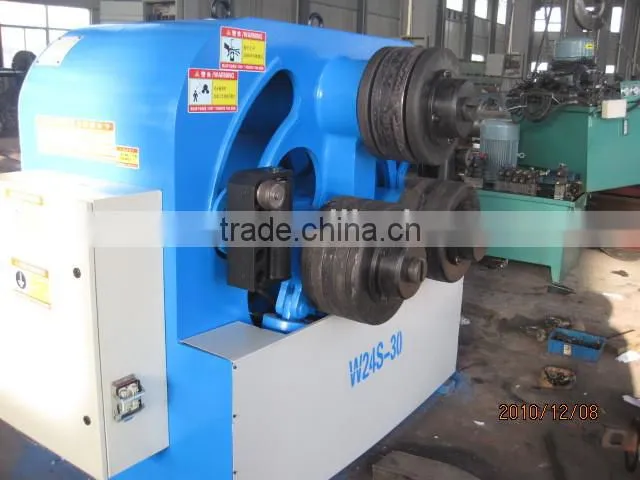

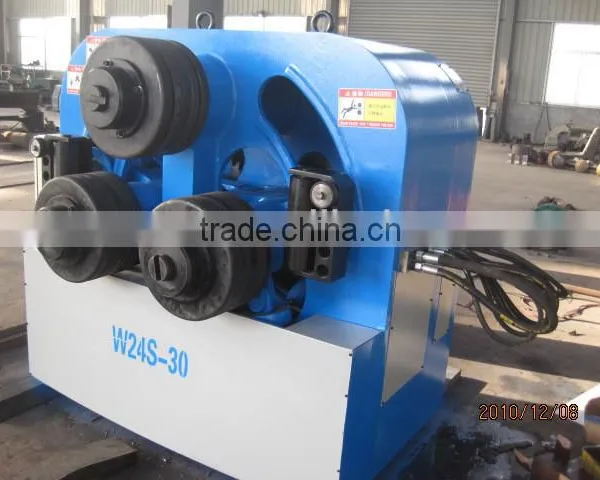

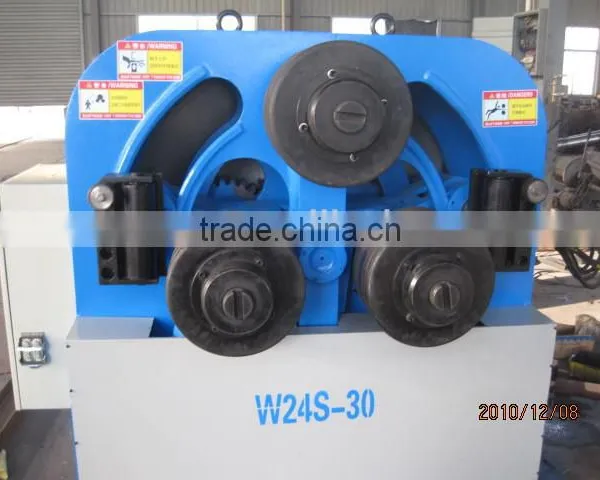

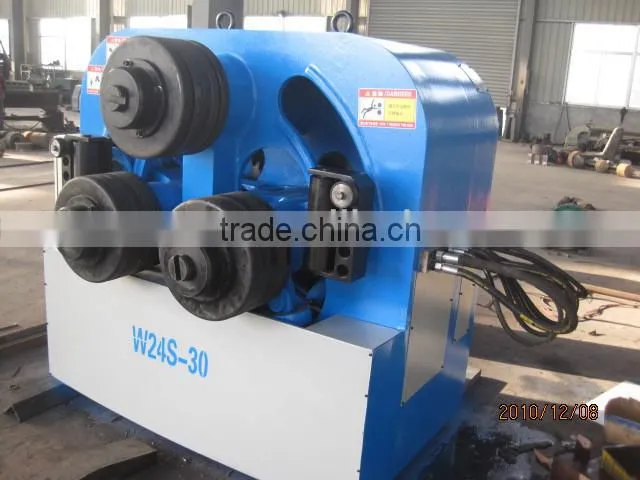

Section bending machineMotorized Drive of both Bottom Rolls.
Standard Roll Set.
Hardened Precision Threaded Shaft.
Section bending machine, Steel bending machine, Bending machines, Aluminum bending machine
FEATURES OF THE MACHINE
Motorized Drive of both Bottom Rolls.
Standard Roll Set.
Hardened Precision Threaded Shaft.
Adjustable Lateral Guides.
Emergency Stop.
Foot Pedal for Right and Left Rotation, Option of Reverse-Forward Starter.
Manual Adjustment of Upper Roll.

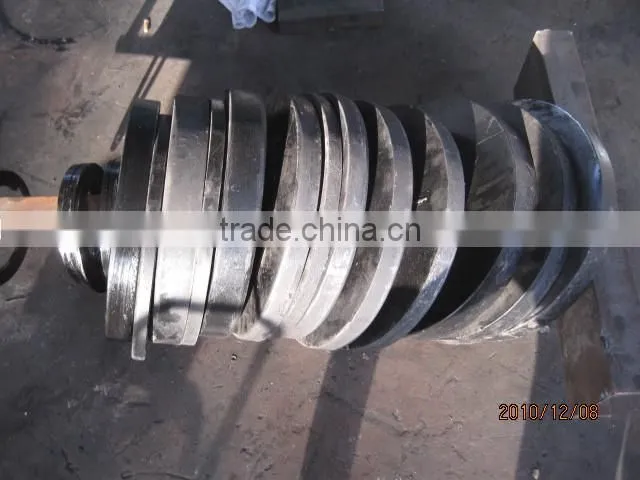

Hardened Rolls for Standard Profile.
Easy and Quick Roll Change.
Scale for Clear Adjustment of Top Roll.
All Shafts Run in Roller Bearings.
The Machine Frame is Welded Steel Construction.
Heavy Duty and Rigid Construction
Machine can be Operated by Semi-Skilled or Unskilled Operator.
These machines can bend wide range of structural steel section,Flat bars, Solid Square or Round, Angle Iron (Leg In or Out), Round Tube, Square Tube, Rectangular Tubing.
| Technical parameters | W24S | |||||
| 6 | 16 | 30 | 45 | 75 | 100 | |
| Flexural modulus of the largest cross-section profiles | 6 | 16 | 30 | 45 | 75 | 100 |
| Coiling speed(m/min) | 6 | 5 | ||||
| Yielding Limit of Sheet Metal(mpa) |
S=250 | |||||
| Maximum cross section(mm) | 40×5 | 70×8 | 80×8 | 90×10 | 100×10 | 120×12 |
| Minimum bending diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 |
| Minimum cross section(mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 40×5 |
| Minimum bending diameter(mm) | 400 | 550 | 560 | 600 | 600 | 720 |
| Maximum cross section(mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 |
| Minimum bending diameter(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 |
| Minimum cross section(mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 45×5 |
| Minimum bending diameter(mm) | 400 | 550 | 500 | 600 | 700 | 760 |
| Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 |
| Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 |
| Maximum cross section(mm) | 100×18 | 150×25 | 180×25 | 200×30 | 220×40 | 250×40 |
| Minimum bending diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 |
| Maximum cross section(mm) | 50×12 | 75×16 | 90×20 | 100×25 | 110×40 | 120×40 |
| Minimum bending diameter(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 |
| Maximum cross section(mm) | 42×4 | 76×4.5 | 89×5 | 89×8 | 114×5 | 159×5 |
| Minimum bending diameter(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 |
| Maximum cross section(mm) | 38 | 52 | 62 | 75 | 85 | 90 |
| Minimum bending diameter(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 |
| Maximum cross section(mm) | 45×3 | 60×4 | 70×4 | 80×6 | 90×8 | 100×10 |
| Minimum bending diameter(mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 |
