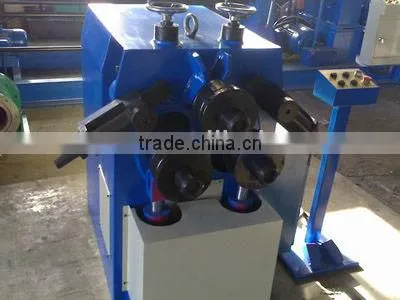

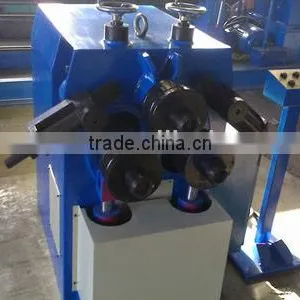

W24S-30 Hydraulic Pipe Bending Machine,section Bending Machine
US$ 100 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Sheet Profile Bending Machine/aluminium Profile Cutting Machine/profile Press BrakeUS$ 1 - 99,999MOQ: 1 Set -
Hydraulic Profile Bending Machine/aluminium Profile Machine/aluminium Profile Making Machine/metal Profile MachineUS$ 1 - 99,999MOQ: 1 Set
-
Mechanical Three-roller Asymmetrical Plate Rolling Machine,W11-2x1000 Asymetrical Rolling MachineUS$ 10,000 - 85,000MOQ: 1 Set
-
Hydraulic Three-roller Symmetrical Plate Rolling Machine,hydraulic Roller-bending Machine,roller Forming MachneUS$ 4,000 - 90,000MOQ: 1 Set
-
W11-30x3000 Hydraulic 3-roller Symmetrical Forming MachineUS$ 10,000 - 89,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
WENAO
Model Number
W24-30
Machine Type
Beading Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Other, metal
Power
Hydraulic
Automation
Automatic
Extra Services
Machining
Certification
Other, ISO 9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
W24S series Section bending machineMotorized Drive of both Bottom Rolls.
Hardened rollers
full hydraulic type
W24S-100 hydraulic pipe bending machine,section bending machine, W24s series Section bending machine, Hydraulic bending machine, Hydraulic press brake
FEATURES OF THE MACHINE
Motorized Drive of both Bottom Rolls.
Standard Roll Set.
Hardened Precision Threaded Shaft.
Adjustable Lateral Guides.
Emergency Stop.
Foot Pedal for Right and Left Rotation, Option of Reverse-Forward Starter.
Manual Adjustment of Upper Roll.
Hardened Rolls for Standard Profile.
Easy and Quick Roll Change.
Scale for Clear Adjustment of Top Roll.
All Shafts Run in Roller Bearings.
The Machine Frame is Welded Steel Construction.
Heavy Duty and Rigid Construction
Machine can be Operated by Semi-Skilled or Unskilled Operator.

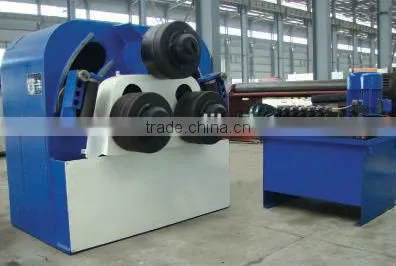

· The large diameter profile bending machine is produced by adopting Swedish company technology. The structure features two fixed lower rolls. The mechanical transmission and the upper roll going up and down belong to hydraulic transmission. This three roller symmetrical bending machinery possesses mechanical rollers on the both sides of the work rolls.
· The large diameter profile bending machine has sufficient strength and stiffness to finish bending profiles within the bending machine capacity.
· It can bend angle steel, flat steel, square steel, channel steel, round steel, steel pipe and other profiles.
· This three roller symmetrical bending machinery is equipped with an independent operation bench providing convenient operation. Its bed adopts steel plate welded structure and eliminates internal stress through annealing.
· The large diameter profile bending machine adopts advanced structure and features reliable operation, small size and multiple function.
· It is a kind of advanced profile molding equipment both at home and abroad.
| Technical parameters | Model & Type | Model & Type | |||||||||||
| W24-6 | W24-16 | W24-30 | W24-45 | W24-75 | W24-100 | W24-140 | W24-180 | W24-260 | W24-320 | W24-400 | W24-500 | ||
| Max.bending resistance of section modulus(cm3) | 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 | |
| Bending speed(m/min) | 6 | 5 | 5 | 5 | 5 | 5 | 5 | 4 | 4 | 4 | 4 | 4 | |
| Material yield limit(Mpa) | δs=250 | δs=250 | |||||||||||
| Angle-steel in-turn | Max.Section(mm) | 40x5 | 70x8 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 | 160x16 | 180x14 | 200x18 | 200x20 |
| Min.bending DIA(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 2400 | 2600 | 2600 | 3600 | 3600 | 4000 | |
| Angle-steel out-turn | Max.Section(mm) | 50x5 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 | 160x16 | 250x25 | 200x18 | 200x24 | 250x25 |
| Min.bending DIA(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | 2200 | 2000 | 2500 | 3600 | 3600 | 4000 | |
| Channel steel out-turn | Max.Section(mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
| Min.bending DIA(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 | 1200 | 1500 | 1800 | 2000 | 2000 | 2400 | |
| Channel steel in-turn | Max.Section(mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
| Min.bending DIA(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | 1700 | 1800 | 1800 | 2000 | 2000 | 2400 | |
| Channel steel side-turn | Max.Section(mm) | — | — | 8 | 10 | 12.6 | 14.6 | 16 | 18 | 20 | 22 | 25a | 25c |
| Min.bending DIA(mm) | — | — | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 8000 | 10000 | |
| Flat steel horizontal turn | Max.Section(mm) | 100x18 | 150x25 | 180x25 | 200x30 | 220x40 | 250x40 | 280x50 | 300x50 | 330x50 | 360x60 | 400x75 | 500x76 |
| Min.bending DIA(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1500 | 1900 | 2000 | 2400 | 2400 | |
| Flat steel vertical turn | Max.Section(mm) | 50x8 | 75x16 | 90x20 | 100x25 | 110x40 | 120x40 | 150x40 | 180x30 | 190x40 | 190x50 | 200x50 | 200x60 |
| Min.bending DIA(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | 1500 | 2000 | 2000 | 2400 | 2200 | 2500 | |
| Round steel bending | Max.Section(mm) | 38 | 52 | 62 | 75 | 85 | 90 | 100 | 110 | 120 | 135 | 150 | 160 |
| Min.bending DIA(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 | 1200 | 1300 | 1350 | 1800 | 2000 | 2000 | |
| Round tube bending | Max.Section(mm) | 42x4 | 76x4.5 | 89x5 | 89x8 | 114x5 | 159x5 | 168x6 | 168x8 | 219x8 | 245x8 | 273x8 | 323x10 |
| Min.bending DIA(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | 2000 | 2000 | 3500 | 3000 | 3500 | 4200 | |
| Square tube bending | Max.Section(mm) | 45x3 | 60x4 | 70x4 | 80x6 | 90x8 | 100x10 | 125x10 | 140x10 | 150x10 | 165x10 | 180x12 | 200x12 |
| Min.bending DIA(mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 | 2500 | 3000 | 3000 | 3500 | 3500 | 5000 | |
| I steel vertical bending | Max.Section(mm) | — | — | — | — | 10 | 12.6 | 14 | 16 | 18 | 20b | 22b | 25b |
| Min.bending DIA(mm) | — | — | — | — | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 | 8000 | 10000 | |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2013
Factory Size
10,000-30,000 square meters
Total Employees
11 - 50 People
