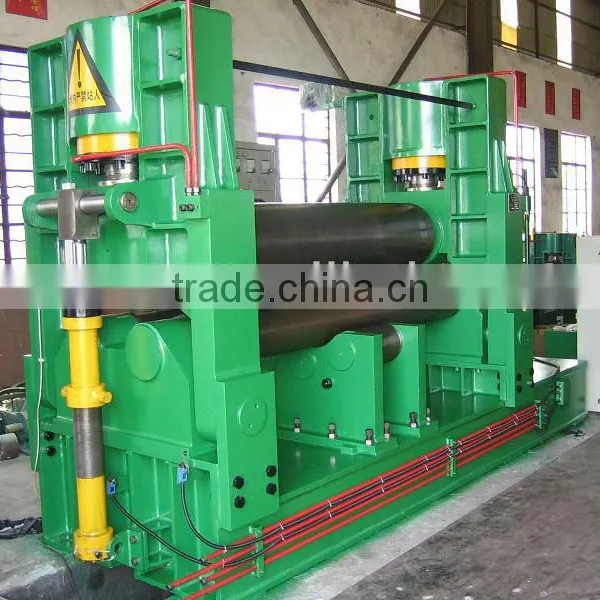

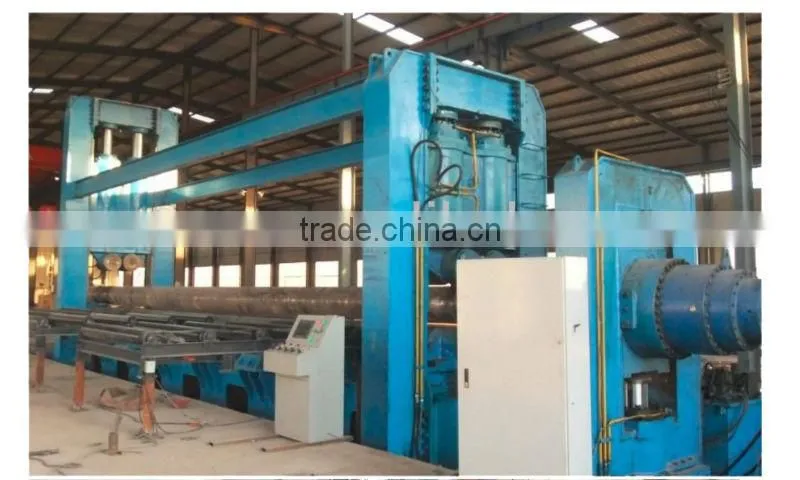

Hydraulic Universal plate bending rolls machine

Specifications

Hydraulic Universal plate bending machine
Cone device
Up driver roller
Pre-bending function
ISO&CE certification

Hydraulic Universal plate bending rolls machine, Hydraulic Universal plate bending machine, Specification plate bending machine, Plate rolling machine



The machine’s use

1. High productivity and good precision for metal sheets bending, different up-die and bottom-die, working for multifarious pieces. One-off bending shaped by one time stroke. Can make complex shapes by repetitious bending work. Can punch with corresponding die.

2. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation,good synchronizing performance ,and high repeated positioning precision of gliding block.



Model	Pressure on the upperoller	Max.plate thickness		Plate width	Diameter of upper roller	Diameter of lower roller	Central distance	Moter
		End bending	Central					Driving	Hydraulic	Shift
	tons	mm	mm	mm	mm	mm	mm	kw
W11S-20*3000	160	16	20	3000	375	200	330	18.5	7.5	2.2
W11S-18*3500	160	14	18	3500	390	200	330	18.5	7.5	2.2
W11S-24*2500	190	20	24	2500	380	220	360	22	7.5	4
W11S-22*3000	190	19	22	3000	400	220	360	22	7.5	4
W11S-19*3500	190	16	19	3500	415	220	360	22	7.5	4
W11S-29*2500	230	25	29	2500	410	235	380	30	11	4
W11S-27*3000	230	22	27	3000	425	235	380	30	11	4
W11S-25*3500	230	21	25	3500	440	235	380	30	11	4
W11S-33*2500	270	28	33	2500	430	250	400	30	11	4
W11S-30*3000	270	25	30	3000	450	250	400	30	11	4
W11S-28*3500	270	23	28	3500	470	250	400	30	11	4
