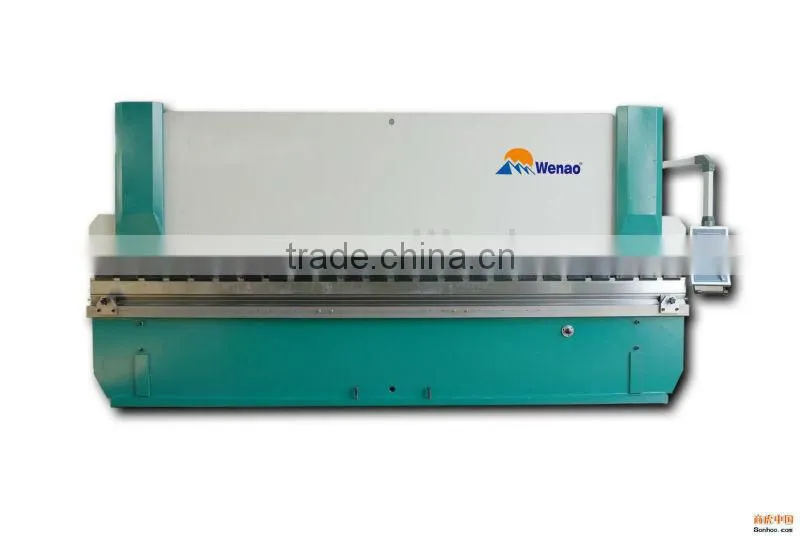

WC67Y Hydraulic Press Machine / Press Brake/WC67Y 63/3200 Bending Machine

WC67Y Hydraulic Press Machine / Press Brake/WC67Y 63/3200 Bending Machine thumbnail-1
WC67Y Hydraulic Press Machine / Press Brake/WC67Y 63/3200 Bending Machine photo-1
US$ 15,000 - 65,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name WENAO
Model Number WC67Y(K)-63X3200
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services Machining
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

WC67Y hydraulic press machine(63/3200)
1.Stable performance
2.E200,DA52,CNC are optional
3.high quality & perfect structure

WC67Y hydraulic press machine / press brake/WC67Y 63/3200 bending machine

Steel-welded construction,vibration to eliminate stress,with high stre-ngth and good rigidith.
Hydraulic top-drive,steadiness and reliablity.
Mechanical stop,steel torsion bar to maintain synchronization,with high precision
Motorized-adjusting device for backgauge and ram's stroke,fine adjusting by handwheel,DRO for backgauge and ram stroke.
Deflection compensation unit installed on the top die.Manual crowned botton die holder is adopted for the machine above 250tons. DRO to dispay the values of backguage and ram stroke.



 MAIN TECHNICAL DATA



Specification Nominal pressure Length of working table Distance between uprights Throat dephts Ram stroke Motor power
KN mm mm mm mm KW
100/2500 1000 2500 1900 320 120 7.5
100/3200 1000 3200 2460 320 120 7.5
100/4000 1000 4000 2950 320 120 7.5
125/2500 1250 2500 1900 320 120 7.5
125/3200 1250 3200 2450 320 120 7.5
125/4000 1250 4000 2960 320 120 7.5
160/2500 1600 2500 1900 400 200 11
160/3200 1600 3200 2445 400 200 11
160/4000 1600 4000 2940 400 200 11
160/6000 1600 6000 4600 400 200 11
200/2500 2000 2500 1900 400 200 15
200/3200 2000 3200 2540 400 200 15
200/4000 2000 4000 2930 400 200 15
200/6000 2000 6000 4600 400 200 15
250/2500 2500 2500 1900 400 250 18.5
250/3200 2500 3200 2530 400 250 18.5
250/4000 2500 4000 2930 400 250 18.5
250/6000 2500 6000 4600 400 250 18.5
300/3200 3000 3200 2530 400 250 22
300/4000 3000 4000 2930 400 250 22
300/6000 3000 6000 4600 400 250 22





WC67Y hydraulic press machine / press brake/WC67Y 63/3200 bending machine





 WC67Y hydraulic press machine / press brake/WC67Y 63/3200 bending machineWC67Y hydraulic press machine / press brake/WC67Y 63/3200 bending machineWC67Y hydraulic press machine / press brake/WC67Y 63/3200 bending machineWC67Y hydraulic press machine / press brake/WC67Y 63/3200 bending machine
