Specifications
HN-152 Hand notcher stroke 19mm1. Good and stable quality
2. Over ten years experience
3. easy to operate

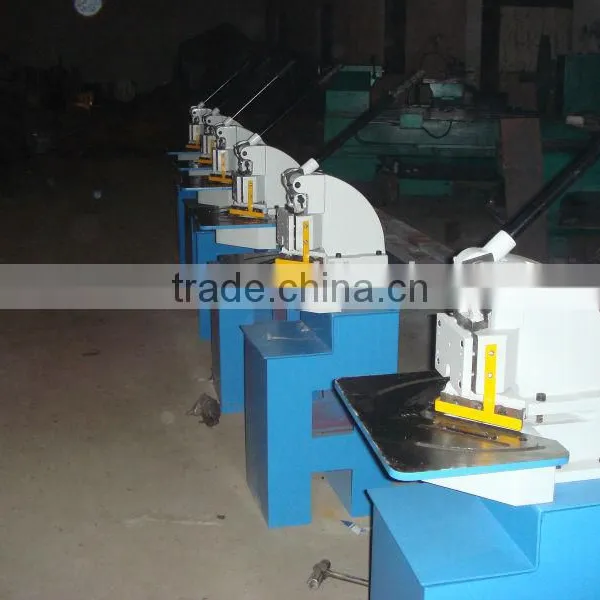

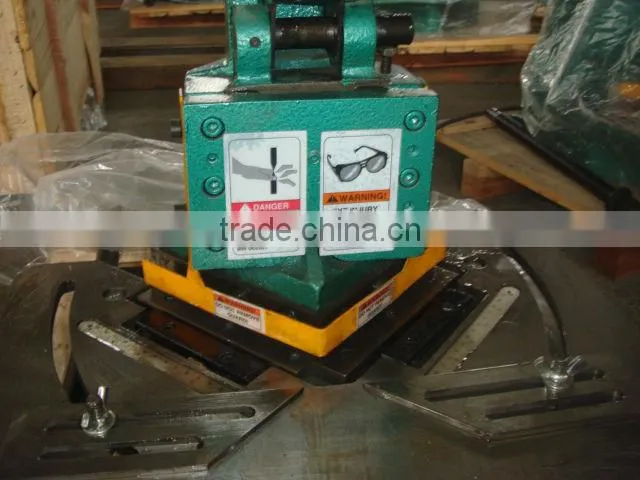

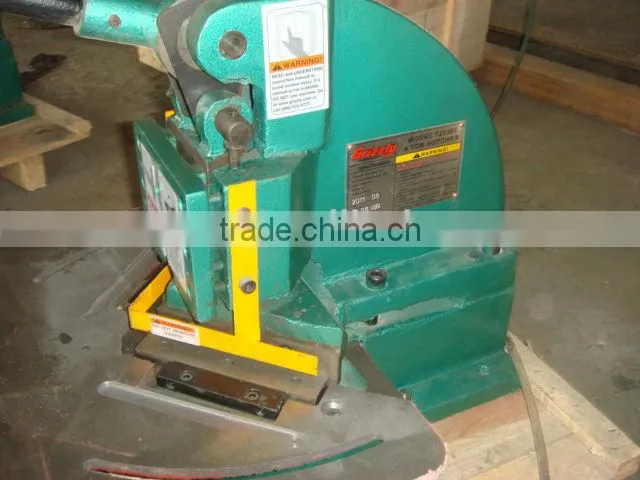

HN-152 Hand notcher stroke 19mm
STANDARD FEATURES:
1.Strip cutting device with scale with fast adjustment for Max strip size of 200 x 200 mm (optional)
2.Two selfocking stops with moveable and exchangeable stop bar 350 mm in length
3.One set upper blades14° 30′ and 29° 30′ and 1 set bottom blades for stamfes steel.
4.Triplex scales on the working table for fast adjustment of the stops
5.Plexiglass guard for easy vision
6.Moveable foot switch
7.Single and set up stroke
8. Slug box
9.Adjust able stroke
10.Two sheet holders, gas type (VN 2006 only)
Notching machine Function and Characteristics:

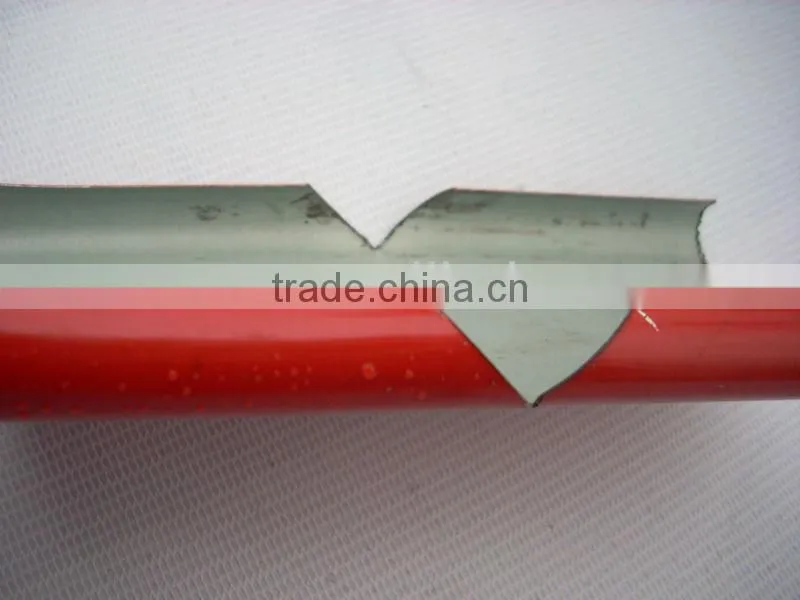

This machine is a kind of thin-plate notching machinery. The user can notch angles of more than 90°, through a two step process. and have heavy duty cutting blade. and easy to read front gauges. The equipment is suitable for use in the field of motor-car, shipbuilding, air conditioning, duct, cooker and stainless products.
The machine frame is structured with steel welded plate. The worktable and spin table are structured with casting steel. This machine is reliable control with easy adjustment and maintenance.

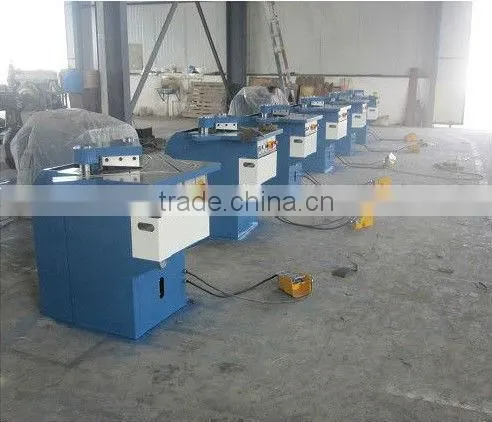

Model |
HHN-200A |
HHN-2004 |
HN-152 |
Cutting thickness |
4mm |
4mm |
1.6mm |
Cutting length |
200*200mm |
200*200mm |
152*152mm |
Cutting angle |
45°~135° |
90° |
90° |
Power |
3KW |
3KW |
Manual |
Net weight |
1450KGS |
520KGS |
83KGS |
ADVANTAGES:
1. Strong and simple construction
2.NO maintenance
3.Fixed blades clearance for any thickness and material
4.Corrosion-resistant components
5.High quality components
6.Eco-friendly materials
7.Manufactured according to european safety rules,CE
8. Fast and easily adjustable angles by hand wheels.
