Home > Products > Other machines > QF28Y-4*200 hydraulic hose crimping machine, v-notch machine, angle notching machine
QF28Y-4*200 hydraulic hose crimping machine, v-notch machine, angle notching machine
- 38 Set / Sets per Month
- any port of china
- T/T L/C D/P D/A Credit Card PayPal
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | WENAO |
Model Number: | QF28Y-4*200 hydraulic hose crimping machine | Voltage: | 220V, 380 V | Rated Power: | 3~4 KW |
Dimension(L*W*H): | 1000*1000*1200 mm | Weight: | 520 KG | Certification: | CE and ISO |
Warranty: | 14 months warranty period | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QF28Y-4*200 hydraulic hose crimping machine, v-notch machine, angle notching machine
STANDARD FEATURES:
1.Strip cutting device with scale with fast adjustment for Max strip size of 200 x 200 mm (optional)
2.Two selfocking stops with moveable and exchangeable stop bar 350 mm in length
3.One set upper blades14° 30′ and 29° 30′ and 1 set bottom blades for stamfes steel.
4.Triplex scales on the working table for fast adjustment of the stops
5.Plexiglass guard for easy vision
6.Moveable foot switch
7.Single and set up stroke
8. Slug box
9.Adjust able stroke
10.Two sheet holders, gas type (VN 2006 only)
Notching machine Function and Characteristics:
This machine is a kind of thin-plate notching machinery. The user can notch angles of more than 90°, through a two step process. and have heavy duty cutting blade. and easy to read front gauges. The equipment is suitable for use in the field of motor-car, shipbuilding, air conditioning, duct, cooker and stainless products.
The machine frame is structured with steel welded plate. The worktable and spin table are structured with casting steel. This machine is reliable control with easy adjustment and maintenance.
Specifications
QF28Y-4*200 angle cutting machine
1. Good and stable quality
2. Over ten years experience
3. 14 months warranty
Aluminium sheet angle making machine
Model | QX28Y-4*200 | QF28Y-4*200 |
Cutting thickness | 4-6 mm | 4-6 mm |
Cutting length | 200 mm | 200 mm |
Cutting angle range | 30°~135° | 90° |
Power | 4.0-5.5 KW | 3.0-4.0 KW |
Dimension | 1050*1020*1320 mm | 1000*1000*1200 mm |
Net weight | 900 KG | 520 KG |
STANDARD FEATURES:
1.Strip cutting device with scale with fast adjustment for Max strip size of 200 x 200 mm (optional)
2.Two selfocking stops with moveable and exchangeable stop bar 350 mm in length
3.One set upper blades14° 30′ and 29° 30′ and 1 set bottom blades for stamfes steel.
4.Triplex scales on the working table for fast adjustment of the stops
5.Plexiglass guard for easy vision
6.Moveable foot switch
7.Single and set up stroke
8. Slug box
9.Adjust able stroke
10.Two sheet holders, gas type (VN 2006 only)
Notching machine Function and Characteristics:
This machine is a kind of thin-plate notching machinery. The user can notch angles of more than 90°, through a two step process. and have heavy duty cutting blade. and easy to read front gauges. The equipment is suitable for use in the field of motor-car, shipbuilding, air conditioning, duct, cooker and stainless products.
The machine frame is structured with steel welded plate. The worktable and spin table are structured with casting steel. This machine is reliable control with easy adjustment and maintenance.
ADVANTAGES:
1. Strong and simple construction
2.NO maintenance
3.Fixed blades clearance for any thickness and material
4.Corrosion-resistant components
5.High quality components
6.Eco-friendly materials
7.Manufactured according to european safety rules,CE
8. Fast and easily adjustable angles by hand wheels.
Aluminium sheet angle making machine
Specifications
QF28Y-4*200 angle cutting machine
1. Good and stable quality
2. Over ten years experience
3. 14 months warranty
High quality Corner Notching Machine for 6mm sheet parts
Model | QX28Y-6*200 | QF28Y-6*200 |
Cutting thickness | 4-6 mm | 4-6 mm |
Cutting length | 200 mm | 200 mm |
Cutting angle range | 60°~135° | 90° |
Power | 5.5 KW | 4.0 KW |
Dimension | 1500*1000*1400 mm | 1000*1000*1200 mm |
Net weight | 1470 KG | 580 KG |
STANDARD FEATURES:
1.Strip cutting device with scale with fast adjustment for Max strip size of 200 x 200 mm (optional)
2.Two selfocking stops with moveable and exchangeable stop bar 350 mm in length
3.One set upper blades14° 30′ and 29° 30′ and 1 set bottom blades for stamfes steel.
4.Triplex scales on the working table for fast adjustment of the stops
5.Plexiglass guard for easy vision
6.Moveable foot switch
7.Single and set up stroke
8. Slug box
9.Adjust able stroke
10.Two sheet holders, gas type (VN 2006 only)
Notching machine Function and Characteristics:
This machine is a kind of thin-plate notching machinery. The user can notch angles of more than 90°, through a two step process. and have heavy duty cutting blade. and easy to read front gauges. The equipment is suitable for use in the field of motor-car, shipbuilding, air conditioning, duct, cooker and stainless products.
The machine frame is structured with steel welded plate. The worktable and spin table are structured with casting steel. This machine is reliable control with easy adjustment and maintenance.
ADVANTAGES:
1. Strong and simple construction
2.NO maintenance
3.Fixed blades clearance for any thickness and material
4.Corrosion-resistant components
5.High quality components
6.Eco-friendly materials
7.Manufactured according to european safety rules,CE
8. Fast and easily adjustable angles by hand wheels.
High quality Corner Notching Machine for 6mm sheet parts
Product Description
Leading Hrui 30 to 140 Degree Q28YB Hydraulic metal plate sheets Variable Angle Corner Notching Machine, Cutter machine , Adjustable angle notching machine notching machine notching machine
ventilation equipment, kitchen equipment, decorative materials, such as sheet metal processing field. The hydraulic system on our machine is reliable,
professional manufacturer of custom tanks, the use of domestic brandname long source pumps, and Rexroth valve. Professional tools, long life, suitable for
cutting carbon steel and stainless steel plate.
Fixed Hydraulic & Adjustable Angle Notching Machine Corner Notching
Machine
ADVANTAGES:
1.Strong and simple construction
2.NO maintenance
3.Fixed blades clearance for any thickness and material
4.Corrosion-resistant components
5.High quality components
6.Eco-friendly materials
7.Manufactured according to european safety rules, CE
8.Fast and easily adjustable angles by hand wheels.

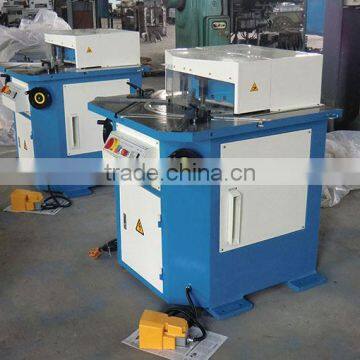

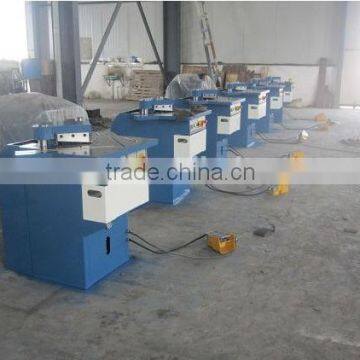

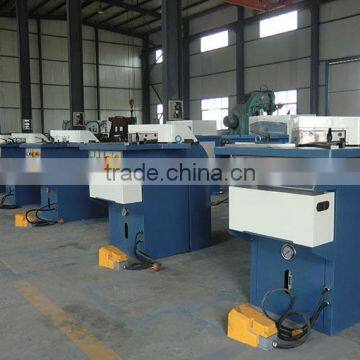

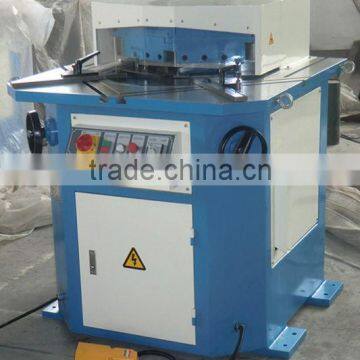

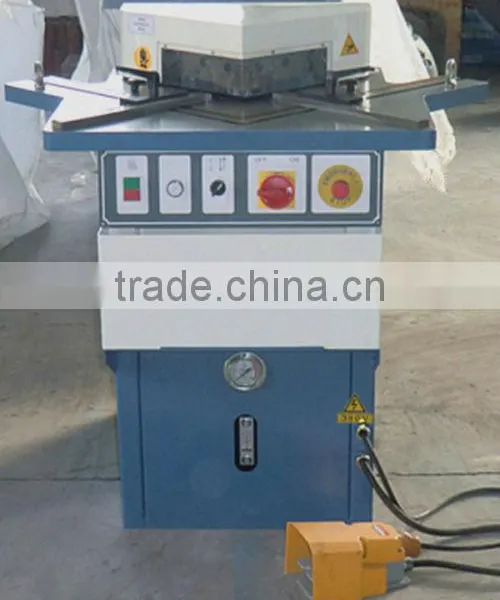

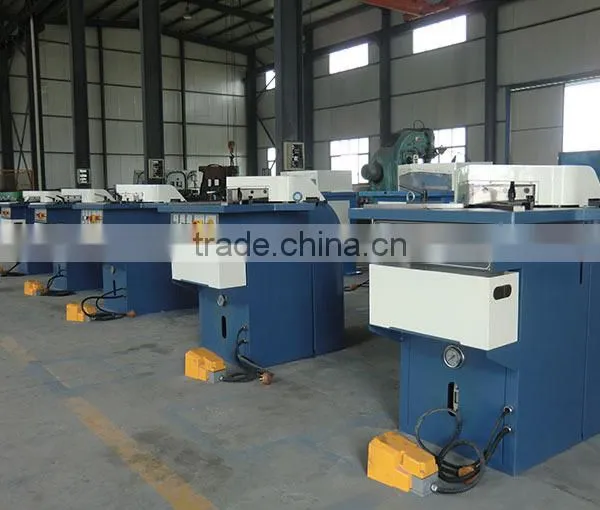

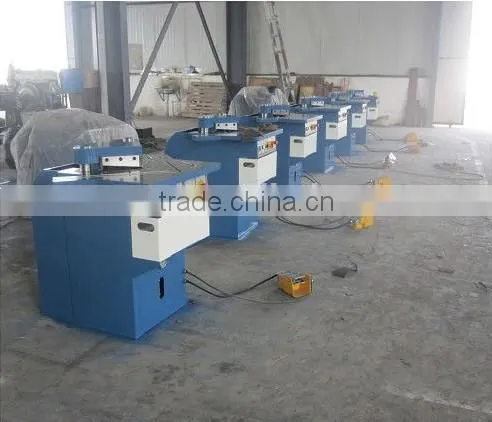

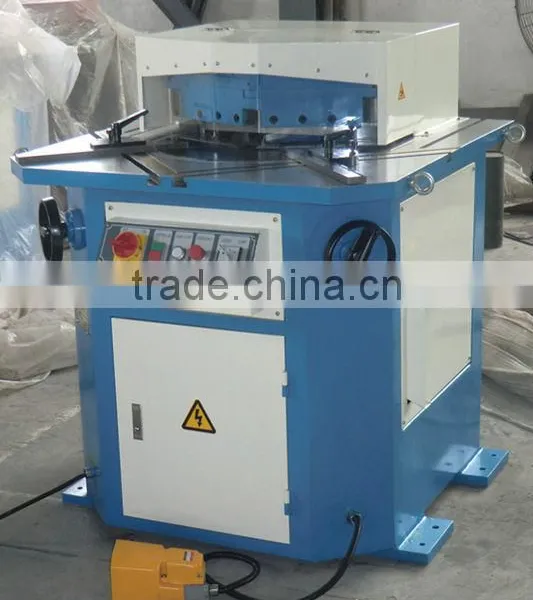

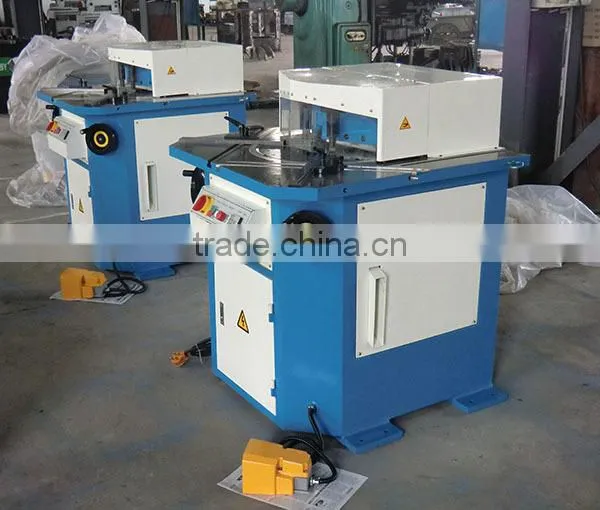

Real Life Photos of angle notching machine, cnc angle notching machine , v notch cutting machine , metal corner notching machine :
1) How about your machine quality?We are worry about the quality.
RE: Wenao is a mature brand in CHINA,through our 11 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
At present, our products are widely used in ship and vehicles, aerospace, power industry, petrochemicals, iron and
steel metallurgy, engineering machinery, military, container, bridge building, construction materials and other industries.
2) Whether the machine price can be more discount?
RE: 1.Wenao always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
3) Where is your factory located? How can I visit there?
RE: Wenao company is located in the nothern gate of Nantong, provincial capital of the Jiangsu,250 km away from Shanghai Pudong International Airport, 225 km away from the Nanjing high-speed railway station. The traffic is very convenient.All our clients, from home or abroad, are warmly welcome to visit us!
We always provide convenient services for customers. Adhering to the "market-oriented, customer-centric, technology as the core, quality fundamental “ principle, we bring maximum economic benefits with the qualified products and sincerely services.
All friends, let’s join together and work hard to create brilliant future !
