Specifications
hydraulic iron worker machine1.Shearing machine
2.Cutting machine
3.The ironworker adopts mechanical driving

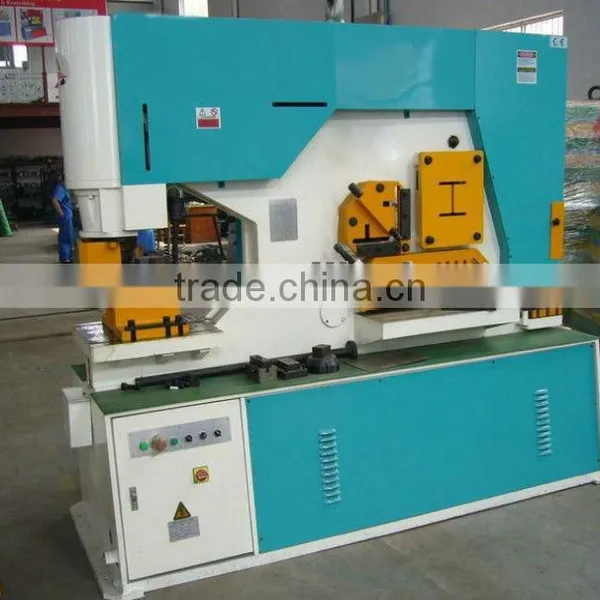

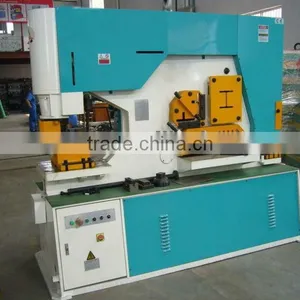

hydraulic iron worker machine
Nantong Wenao Import & Export Co., LTD which is a medium-size national secondary enterprise. Our company specializes in manufacturing all kinds of metal forming machines, such as mechnical/hydraulic puching and shearing machine, hydraulic (CNC) swing shearing machine, gate shearing machine, hydraulic/CNC plate bending machine, etc.
Detailed Product Description :
1.Robust and accurate steel frame
2.Removable bolster for punching flanges and channel and beam
3.Large punch table with scales
4.2 independent hydraulic cylinders
5.2 shielded foot controls
6.2 separate die openings for oversizes punching
7.5 working stations for wide applications
8.Power inching on all 5 works stations
9.Plate shear support/table and notching table
10.Adjustable stroke controls with indicators on both cylinders
11.Movable work light as standard
12.Overload protection on hydraulic system
13.Electric backgauge
14.Optional bending attachment
Model |
H-66 |
H-90 |
H-120 |
H-165 |
H-200 |
Pressure |
66 |
90 |
120 |
165 |
200 |
Max. cutting thickness (mm) |
16 |
20 |
25 |
30 |
35 |
Max. Plate strength (N/mm2) |
450 |
450 |
450 |
450 |
450 |
Shearing size of one stroke (mm) |
16*250 8*400 |
20*330 10*480 |
25*330 10*600 |
30*335 20*600 |
35*550 15*700 |
Ram stroke (mm) |
80 |
80 |
80 |
80 |
80 |
Cycles/min (20mm stroke) |
28 |
28 |
28 |
27 |
25 |
Throat depth (mm) |
300 |
355 |
400 |
600 |
600 |
Punching capacity |
22*20 |
26*22 |
31*27 |
36*32 |
40*35 |
Max. round bar shear |
45 |
50 |
60 |
65 |
65 |
Max. square bar shear |
40*40 |
50*50 |
50*50 |
55*55 |
60*60 |
Max. channel shear |
126*53 |
160*60 |
200*75 |
280*86 |
320*88 |
Max. I beam shear |
126*74 |
160*88 |
200*102 |
280*124 |
320*130 |
At 90 degree shearing |
125*12 |
140*12 |
160*14 |
180*16 |
200*20 |
At 45 degree shearing |
60*6 |
50*5 |
70*7 |
50*5 |
60*8 |
Power of main motor (kw) |
4 |
5.5 |
7.5 |
11 |
15 |
Overall dimension (L*W*H)mm |
1640*730*1770 |
1860*800*1900 |
2355*960*2090 |
2680*1040*2300 |
2795*1040*2300 |
Weight of machine |
1800 |
2300 |
4800 |
6800 |
7500 |
