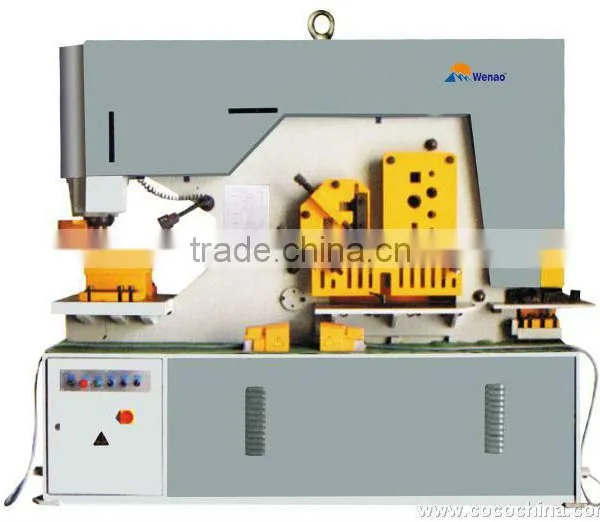

hydraulic iron worker machine

Name: hydraulic iron worker machine
Brand: Wenao
Availability: InStock

FOB Price

USD $2,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port any port of China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Hydraulic	Place of Origin	Jiangsu, China
Brand Name	Wenao	Model Number	H-200
Voltage	380V	Power(W)	15
Weight	7500 kg, 7500 kgs	Dimension(LWH)	279510402300
Certification	ISO9001:2008	Warranty	one year
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

hydraulic iron worker machine
1.Shearing machine
2.Cutting machine
3.The ironworker adopts mechanical driving

hydraulic iron worker machine

Nantong Wenao Import & Export Co., LTD which is a medium-size national secondary enterprise. Our company specializes in manufacturing all kinds of metal forming machines, such as mechnical/hydraulic puching and shearing machine, hydraulic (CNC) swing shearing machine, gate shearing machine, hydraulic/CNC plate bending machine, etc.

Detailed Product Description :

1.Robust and accurate steel frame

2.Removable bolster for punching flanges and channel and beam

3.Large punch table with scales

4.2 independent hydraulic cylinders

5.2 shielded foot controls

6.2 separate die openings for oversizes punching

7.5 working stations for wide applications

8.Power inching on all 5 works stations

9.Plate shear support/table and notching table

10.Adjustable stroke controls with indicators on both cylinders

11.Movable work light as standard

12.Overload protection on hydraulic system

13.Electric backgauge

14.Optional bending attachment

Model	H-66	H-90	H-120	H-165	H-200
Pressure	66	90	120	165	200
Max. cutting thickness (mm)	16	20	25	30	35
Max. Plate strength (N/mm2)	450	450	450	450	450
Shearing size of one stroke (mm)	16250 8400	20330 10480	25330 10600	30335 20600	35550 15700
Ram stroke (mm)	80	80	80	80	80
Cycles/min (20mm stroke)	28	28	28	27	25
Throat depth (mm)	300	355	400	600	600
Punching capacity	22*20	26*22	31*27	36*32	40*35
Max. round bar shear	45	50	60	65	65
Max. square bar shear	40*40	50*50	50*50	55*55	60*60
Max. channel shear	126*53	160*60	200*75	280*86	320*88
Max. I beam shear	126*74	160*88	200*102	280*124	320*130
At 90 degree shearing	125*12	140*12	160*14	180*16	200*20
At 45 degree shearing	60*6	50*5	70*7	50*5	60*8
Power of main motor (kw)	4	5.5	7.5	11	15
Overall dimension (LWH)mm	16407301770	18608001900	23559602090	268010402300	279510402300
Weight of machine	1800	2300	4800	6800	7500
