Specifications
1,protect environment2,high efficient
3,good in sealing
4,high level in automation

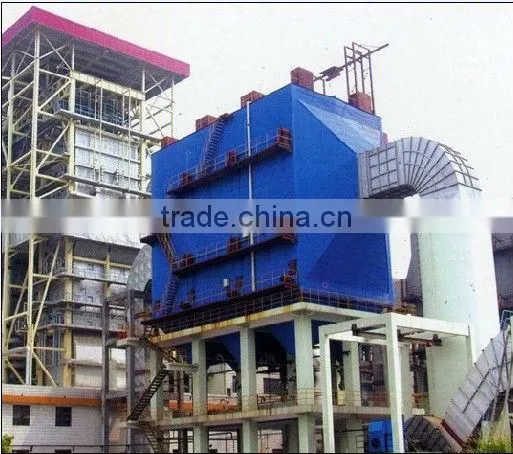

industrial dust collector/High effective air box pulse filter dust collector machine price
"Protect environment,pay close attention to the health and together set uo green world" is the idea to develop environmental industry."Successively we have developed tens of types and hundreds of specifications of dust collection equipment, which are high efficient in dust collection, good in sealing, high level in automatic and have reached up to international advanced standard, for cement, metallurgical, chemicl, coal power supply and other industries.
Main Feature:
1. By use of impulse technology, the dust collector has a strong ability of cleaning dust, high efficiency, and is with low leakage ate, less energy and steel consumption, small areas. The equipment works stably, and wins good economic returns, which isapplied for cleaning dust in several industries, such as metallurgy, building materials, machine, chemistry, electricity, light
industries and so on.
2. The box is designed in a good seal. Excellent seal materials are used in making the inspected door. During its process, check it by using diesel and with low leakage.
3. At the opening of outlet is with compact layout and low resistance.
4. Adopt blowing pulse cleaning dust so as to make the cycle extended and the energy reduced. It can improve twice service life of filtering bags and valves.
5. Change the filtering bags without stopping the machine and overhaul has no effect on operating the equipments.
6. By putting bags on the upper part, checking level is improved
Parameters:
Model |
SLDM168-5 |
SLDM168-6 |
SLDM168-7 |
SLDM168-8 |
SLDM168-9 |
SLDM168-2*5 |
SLDM168-2*6 |
SLDM168-2*7 |
SLDM168-2*8 |
SLDM168-2*9 |
|
|
Air volume (m3/h) |
9.6~12.0 |
11.52~14.4 |
13.44~16.8 |
15.36~19.2 |
17.28~21.6 |
19.2~24.0 |
23.04~28.8 |
26.88~33.6 |
30.72~38.4 |
34.56~43.2 |
|
Total filter area(m2) |
2000 |
2400 |
2800 |
3200 |
3600 |
4000 |
4800 |
5600 |
6400 |
7200 |
|
G.W. (t) |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
140 |
160 |
180 |
|
Chamber |
5 |
6 |
7 |
8 |
9 |
10 |
12 |
14 |
16 |
18 |
|
Filter bag |
Qty. |
840
|
1008
|
1176
|
1344
|
1512
|
1680
|
2016
|
2352
|
2688
|
3024
|
Specification |
130(D. meter)×6000 |
||||||||||
Pulse valve |
Qty. |
60 |
72 |
84 |
96 |
108 |
120 |
144 |
168 |
192 |
216 |
Specification |
3″ |
||||||||||
|
Resistance (Pa) |
1200~1600 |
||||||||||
Air consumption(m3/min) |
2~4 |
||||||||||
Discharge Density(mg/N m3) |
less than 50 |
||||||||||
Air leakage (%) |
less than 3 |
||||||||||
Pressure |
0.2~0.4 |
||||||||||
