Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill

Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill thumbnail-1
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill thumbnail-2
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill thumbnail-3
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill thumbnail-4
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill thumbnail-5
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill thumbnail-6
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill photo-1
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill photo-2
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill photo-3
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill photo-4
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill photo-5
Dry Ball Mill/energy Saving Ball Mill/industrial Ball Mill/wet Grinding Ball Mill photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Wenao
Model Number:
1500*4500, 1500*4500
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nantong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Wenao
Model Number 1500*4500, 1500*4500
Condition New
After-sales Service Provided Overseas third-party support available

dry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball mill

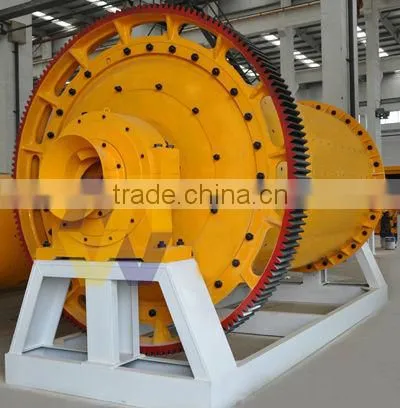

Ball mill description:



The ball mill is the key equipment for re-crushing, it is widely used for dry or wet powder grinding



operation of ore grinding before dressing ferrous and non-ferrous metal, raw material or finished product of cement,



chemical industry, novel construction material, refractory material, etc.   The machine is composed by feeding part,



discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).The

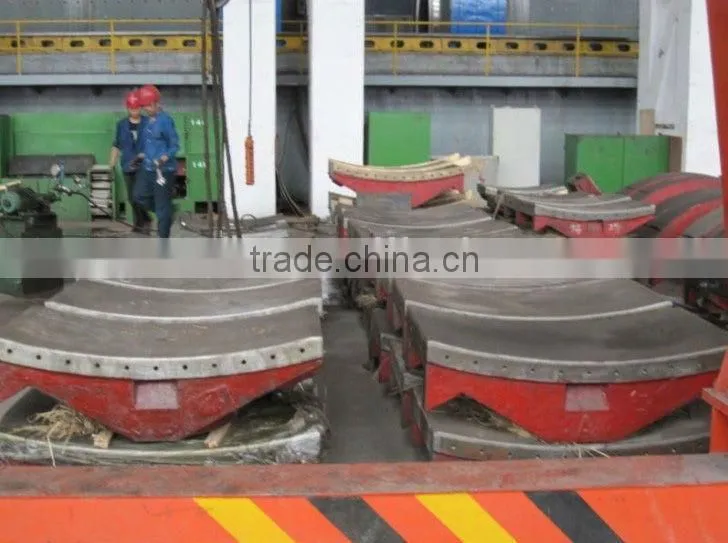

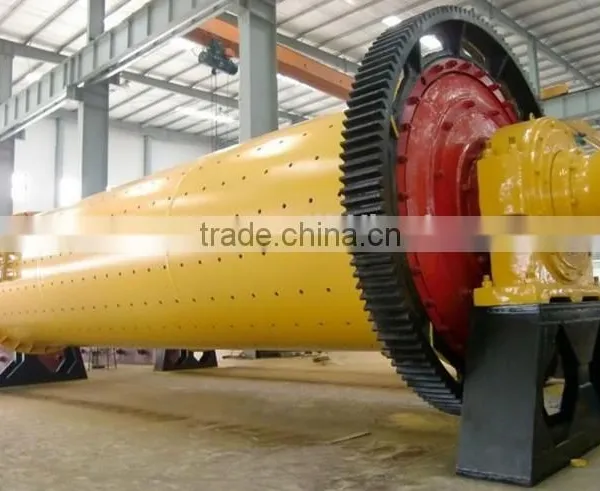

quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process



and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and



reliable working condition.




Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for



choice. our company owns the leading technology and rich practical experience, and we can offer 360 º service,



and leave you from any worry.







Application ball mill:





Ball Mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of



 mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There



are two ways of grinding: The dry way and the wet way.





dry Ball mill Series Main Technical parameters



Model

Shell rotation speed(r/min)

Ball load(t)

Feeding size(mm)

Discharging size(mm)

Capacity

Motor power(kw)

Weight(t)

(t/h)

Ø900*1800

36-38

1.5

<=20

0.075-0.89

0.65-2

18.5

4.6

Ø900*3000

36

2.7

<=20

0.075-0.89

1.1-3.5

22

5.6

Ø1200*2400

36

3

<=25

0.075-0.6

1.5-4.8

30

12

Ø1200*3000

36

3.5

<=25

0.074-0.4

1.6-5

37

12.8

Ø1200*4500

32.4

5

<=25

0.074-0.4

1.6-5.8

55

13.8

Ø1500*3000

29.7

7.5

<=25

0.074-0.4

2-5

75

15.6

Ø1500*4500

27

11

<=25

0.074-0.4

3-6

110

21

Ø1830*3000

25.4

11

<=25

0.074-0.4

4-10

130

28

Ø1830*4500

25.4

15

<=25

0.074-0.4

4.5-12

155

32

Ø2100*3000

23.7

15

<=25

0.074-0.4

6.5-36

155

34

Ø2100*4500

23.7

24

<=25

0.074-0.4

8-43

245

42

Ø2100*7000

23.7

26

<=25

0.074-0.4

8-48

280

50

Ø2200*4500

21.5

27

<=25

0.074-0.4

9-45

280

48.5

Ø2200*6500

21.7

35

<=25

0.074-0.4

14-26

380

52.8

Ø2200*7000

21.7

35

<=25

0.074-0.4

15-28

380

54

Ø2400*3000

21

23

<=25

0.074-0.4

7-50

245

54

Ø2400*4500

21

30

<=25

0.074-0.4

8.5-60

320

65

Ø2700*4000

20.7

40

<=25

0.074-0.4

12-80

400

94

Ø2700*4500

20.7

48

<=25

0.074-0.4

12-90

430

102

Ø3200*4500

18

65

<=25

0.074-0.4

-----

800











dry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball mill



More infomation, pls let us know .



dry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball milldry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball mill
