Specifications
dry type silicate ball mill(advanced in same industry)1 Simple process
2 Low investment
3 High efficient grinding ure.
dry ball mill/energy saving ball mill/industrial ball mill/wet grinding ball mill
Our company has designed a new single-drive and double slide-shoe tube mill sliding shoe with bearing support structure which is used new and slide shoe support device, It is characterized by good lubrication, light weigh, easy to replace and easy to maintain.
Type Y update sealing between slide-shoe housing and slide ring which is simple structure, better sealing performance. The mill gate of the cylinder is used outside cover and excellent structure, New type mill door, can make internal cylinder use the same specification lining plate. Specially equip with manhole lining plate like traditional way.
Only use new classification lining plate and standard step lining plate. Increase the grinding surface and have better classified efficiency. It is easy to maintenance and replace. New diaphragm structure is used adjustable lifting plate and fixed lifting plate, equip with one material spoon which can increase feeding capability effectively, and the new structure is easy to install and maintain.

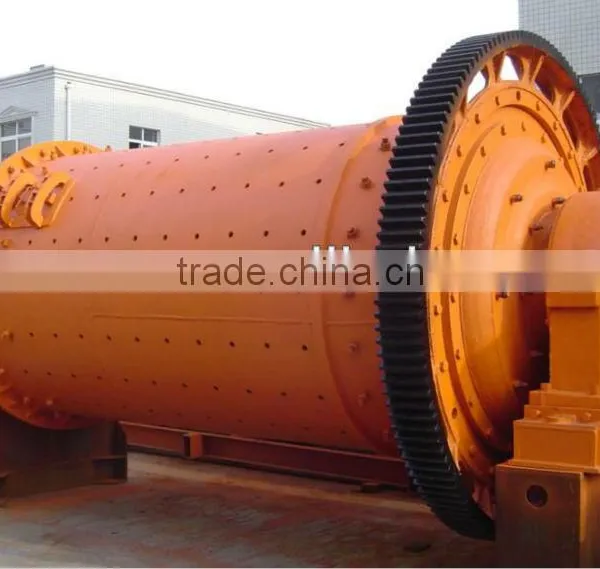

Ball mill description:
The ball mill is the key equipment for re-crushing, it is widely used for dry or wet powder grinding
operation of ore grinding before dressing ferrous and non-ferrous metal, raw material or finished product of cement,
chemical industry, novel construction material, refractory material, etc. The machine is composed by feeding part,
discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).The
quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process
and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and
reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for
choice. our company owns the leading technology and rich practical experience, and we can offer 360 º service,
and leave you from any worry.
Application ball mill:
Ball Mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of
mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There
are two ways of grinding: The dry way and the wet way.
Scope of business:
The company has the great comprehensive ability to provide best quality services on turn-key basis with technology design, complete plant, erection and debugging,commissioning for the 300t /d-6000t/d rotary kiln cement production enterprise.
It can also undertake various projects abroad international bidding projects. It supplies complete equipments and technical services of grinding, calcination, crushing, dust collecting, conveying and lifting for the metallurgy, the chemical industry, the electrical power, the mine, the environmental protection enterprises, etc.
The company has won the titles of Chinese leading enterprise in cement machinery industry, Jiangsu Credible and Trustworthy Enterprise and Jiangsu AAA grade credit enterprise. Its leading products have got Chinese famous brand products titles and "Pengfei" trademark also has been awarded "China Famous Trademark". The company covers an area of 350,000m2 and it has 0.82 billion RMB of total assets. There are 450 engineers and technicians. The company has the six subsidiary companies such as the mechanical plant, electronic plant, casting plant, installation plant, the new type building materials plant, etc.
The company has the mechanical processing capacity of 300,000t/y; its rotary diameter and gear hobbing diameter are 10m as well as the diameter of the annealing furnace is 6.5m; the maximum hoisting capacity is 400t, so the company can meet the manufacturing requirements of the rotary kiln and ball mill below f6m. The large-sized pre-heater, rotary kiln, tube mill, vertical mill, cooler and other main machinery is completely researched, developed and manufactured by Nantong Wenao itself.
dry Ball mill Series Main Technical parameters
Model |
Shell rotation speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity |
Motor power(kw) |
Weight(t) |
(t/h) | |||||||
Ø900*1800 |
36-38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
Ø1200*3000 |
36 |
3.5 |
<=25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
28 |
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
Ø2100*3000 |
23.7 |
15 |
<=25 |
0.074-0.4 |
6.5-36 |
155 |
34 |
Ø2100*4500 |
23.7 |
24 |
<=25 |
0.074-0.4 |
8-43 |
245 |
42 |
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-0.4 |
8-48 |
280 |
50 |
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
Ø2200*6500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
Ø2200*7000 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-28 |
380 |
54 |
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
Ø2400*4500 |
21 |
30 |
<=25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
Ø2700*4000 |
20.7 |
40 |
<=25 |
0.074-0.4 |
12-80 |
400 |
94 |
Ø2700*4500 |
20.7 |
48 |
<=25 |
0.074-0.4 |
12-90 |
430 |
102 |
Ø3200*4500 |
18 |
65 |
<=25 |
0.074-0.4 |
----- |
800 |
1.Moto
1.Grid plate 2.bearing inner sleeve 3.Hollow trunnion 4.dustpan type lining
5.Center plate 6.Fillet 7.adjusting wedge 8.Ball mill ore end cover and the gratin
1.waffle slab 2.Discharge screw blade 3.trommel screen
4.Discharging cover 5.transmission connecting shaft
More infomation, pls let us know .
