recycle plastic granules making machine/ PE PP film pelletizing machine / film granulating machine
Introduction:
This machine is designed for recycling all kinds of plastic such as plastic bags, woven bags, drinking bottles, used plastic basin, shooping plastic bags and so on. The waste is cheap, but the plastic granule is valuable. That is a good way to protect enviornment as you creat wealth.
We can supply single machine or the hole line.
This pelletizing line,recycling PP PE PET PVC, film ,bags, flakes, make them into pellets.
Process flow of plastic pelletizer/plastic granulator/plastic recycling granulator :
Conveyor→ raw material compactor(feeder)→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing system/noodle type pelletizing system→ dewatering machine→ vibrating sieve→ Air Blower → Storage hopper

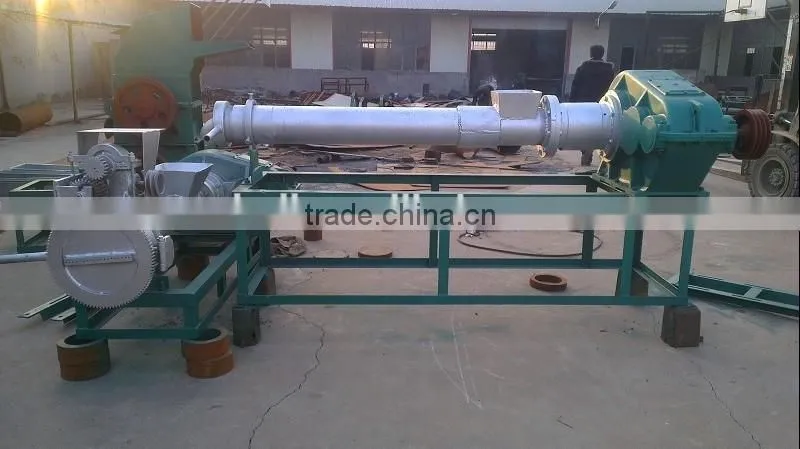

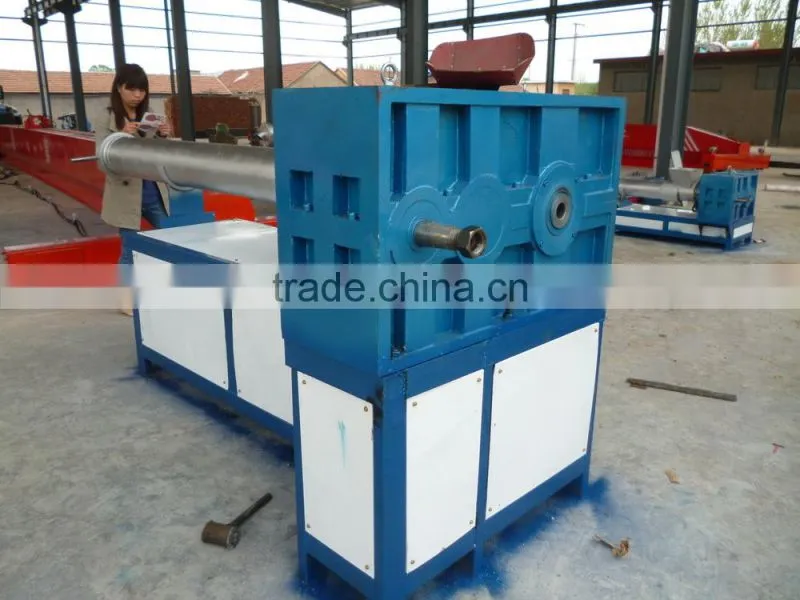

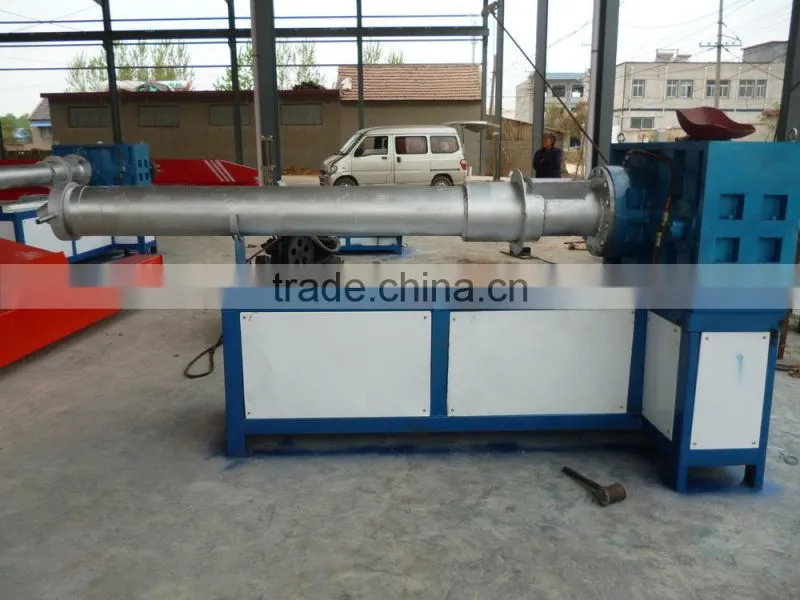

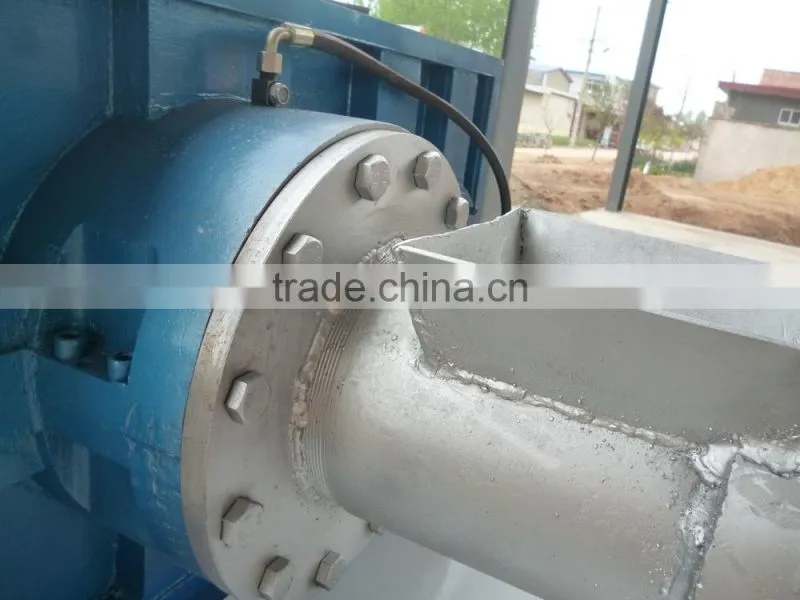

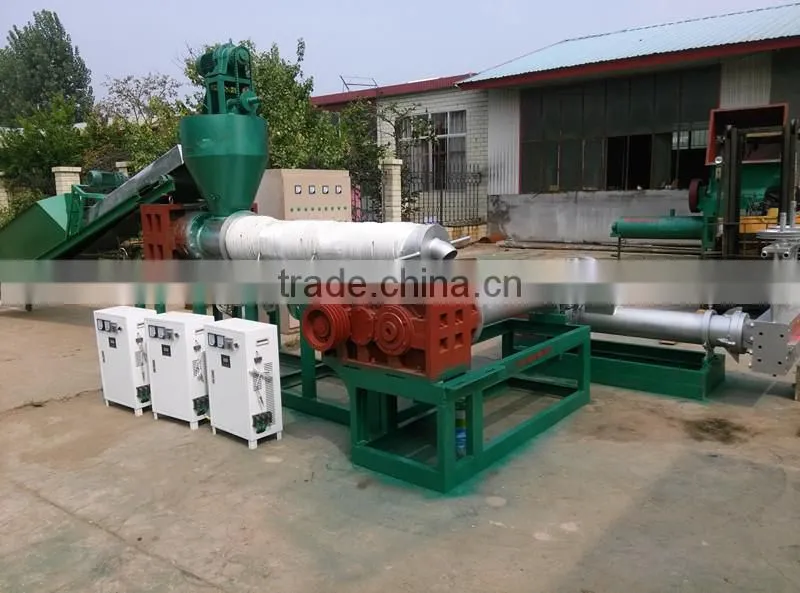

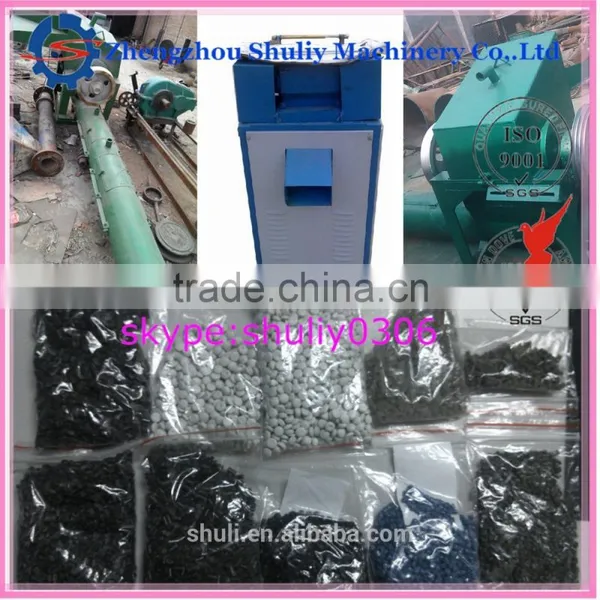

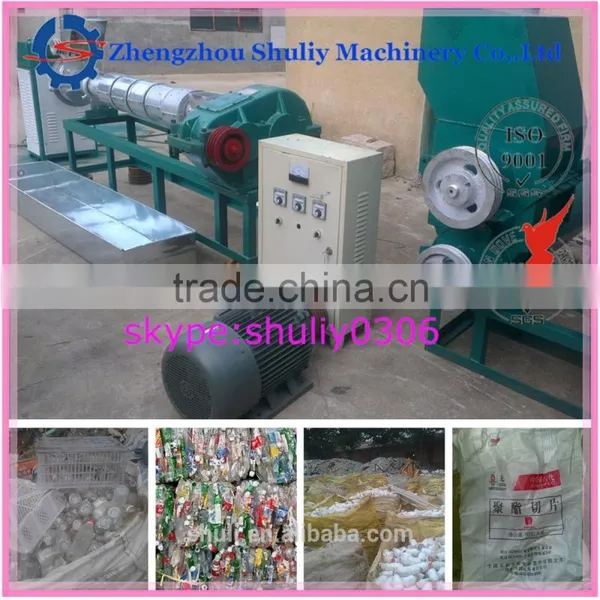

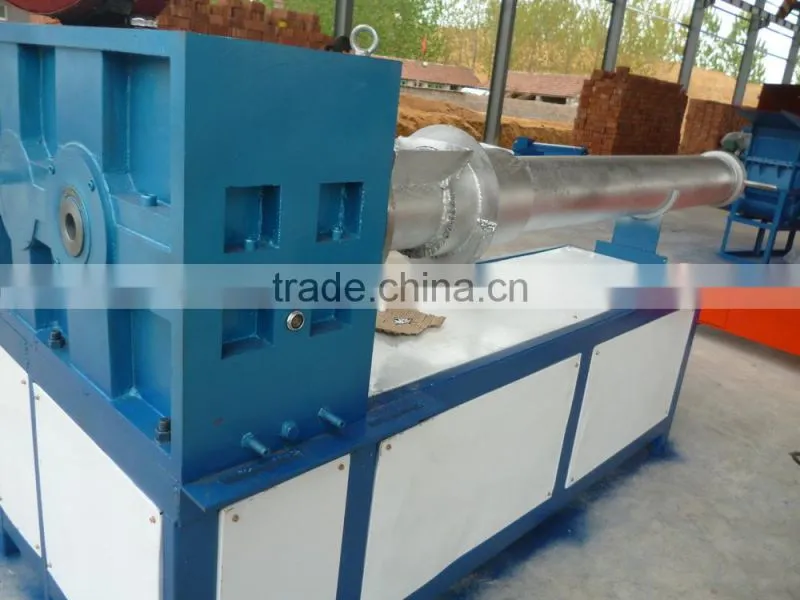

Photos:
Parameters:
Model |
Screw diameter |
Main shaft speed |
Main Motor |
Machine Weight |
Outsize(m) |
Capacity |
SL95 |
95mm |
50-70/min |
11kw |
0.8T |
2.0*0.6*0.7 |
50-60kg/h |
SL105 |
105mm |
50-70/min |
15kw |
1.3T |
2.4*0.7*0.7 |
60-80kg/h |
SL110 |
110mm |
50-70/min |
18.5kw |
1.6T |
2.4*0.7*0.7 |
70-100kg/h |
SL125 |
125mm |
50-70/min |
22kw |
1.8T |
2.6*0.7*0.7 |
90-120kg/h |
SL150 |
145mm |
40-60/min |
30kw |
2.0T |
3.0*0.7*0.8 |
100-150kg/h |
SL180 |
175mm |
40-50/min |
37kw |
2.2T |
3.2*0.7*0.8 |
150-200kg/h |
Model |
L/D |
Output |
Screw Rotation |
Power |
Center Height |
KLJ-50/33 |
33:1 |
20-80 kg/h |
12.5-130 r/min |
37kw |
1000 mm |
KLJ-65/33 |
33:1 |
80-150 kg/h |
33-130 r/min |
45kw |
1000 mm |
KLJ-75/33 |
33:1 |
120-280 kg/h |
20-120 r/min |
55kw |
1000 mm |
KLJ-90/33 |
33:1 |
150-450 kg/h |
33.3-110 r/min |
75kw |
1000 mm |
KLJ-120/33 |
33:1 |
300-600 kg/h |
20-100 r/min |
90kw |
1200 mm |
KLJ-150/33 |
33:1 |
450-700 kg/h |
7-80 r/min |
110kw |
1200 mm |
KLJ-180/33 |
33:1 |
600-800kg/h |
7-80 r/min |
185kw |
1200 mm |
KLJ-200/33 |
33:1 |
800-1000kg/h |
7-80 r/min |
260kw |
1200 mm |
certificate
If you are interested in this plastic machine, please email me:
