Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine

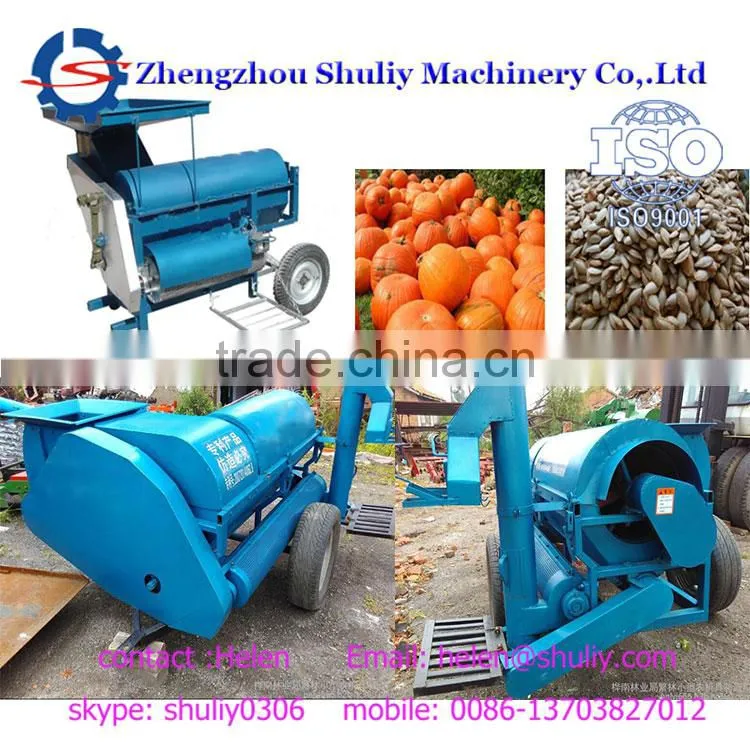

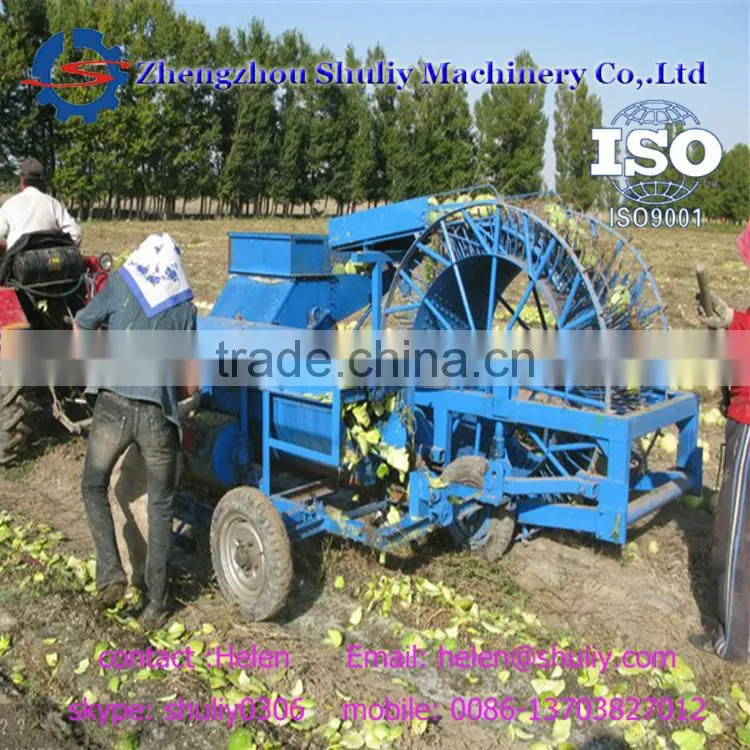

Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine photo-1

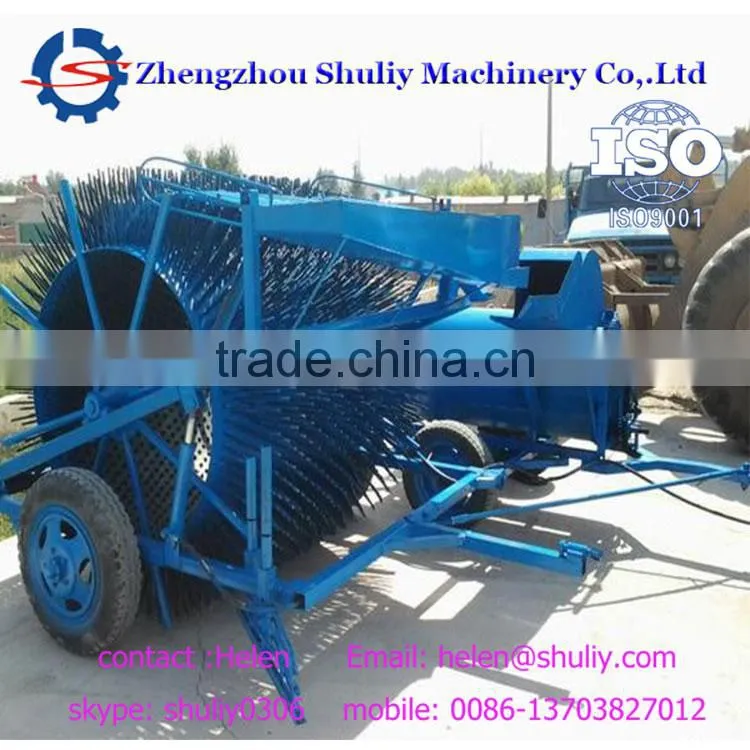

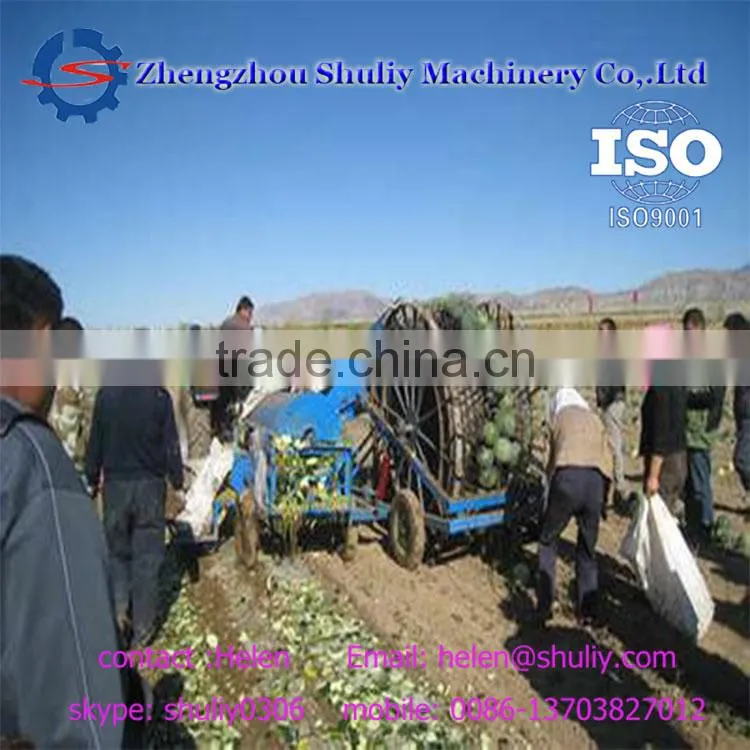

Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine photo-2

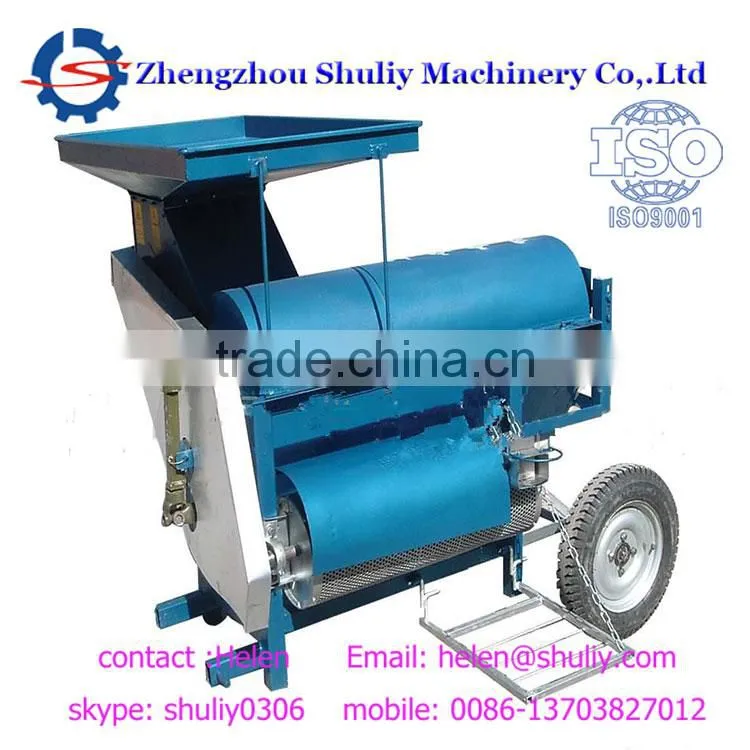

Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine photo-3

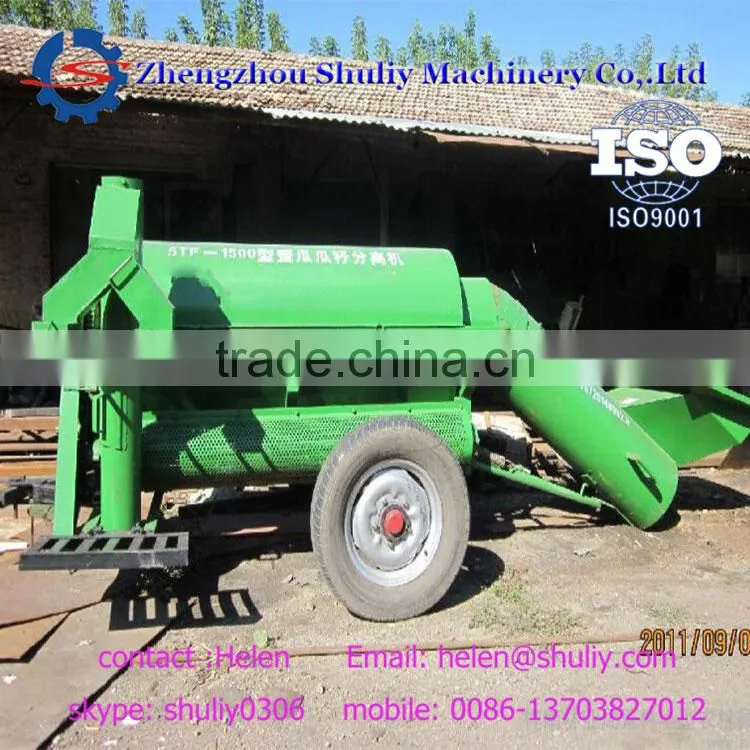

Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine photo-4

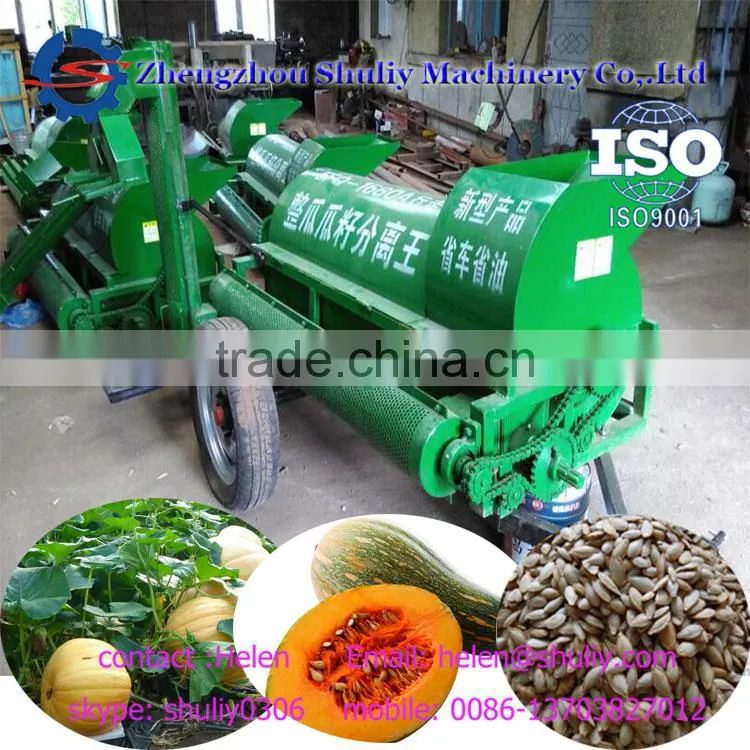

Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine photo-5

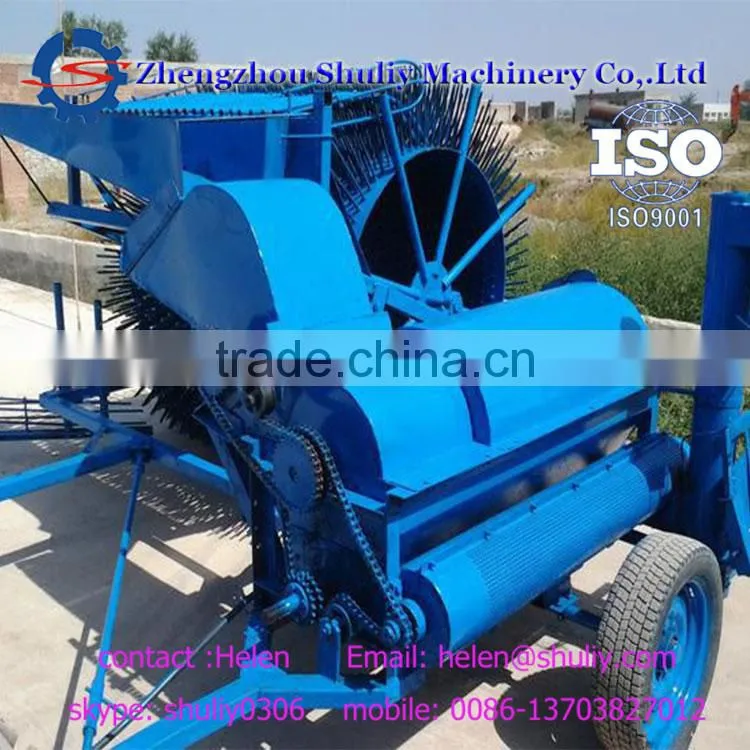

Watermelon Seeds Removing Machine/pumpkin Seeds Extracting Machine/seeds Harvesting Machine photo-6
US$ 1 - 2,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Farm Machinery
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Farm Machinery
Type Combine Harvester
Drive Type Gear Drive
Usage Other, seeds harvester
Place of Origin Henan, China
Brand Name shuliy
Model Number NGDG
Dimension(L*W*H) 2800*2200*2200mm
Weight 400kg
Certificate Other, ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

    watermelon seeds removing machine/pumpkin seeds extracting machine/seeds harvesting machine

Contact Helen:

mobile/whatsapp/wechat: 008613703827012

skype: shuliy0306



Working process of pumpkin seeds extracter

Raw material--- feeding to the tank--- decontaminate

( clearing the rock, soil block and other impurities our)

----Sorting ( classify the pumpkin seed to 6-7grades) ----

mixing ---- shell pumpkin seeds according to grade ----

drying the final product ---- finished product storage ---- packing ---selling



The detail information of pumpkin seeds extract

This machine is specially used to extract the seeds from the ripe pumpkin. It can crush the pumpkin,

 press and separate the seeds from the pumpkin skin and flesh , cleaning the seeds.

The machine is connected with a small tractor through handing body. Tractor powered by propeller

shaft passed to the stirring axle of the machine, through the sprocket and chain under the action of the

 power chain, assigned to separate consecutive axes, broken shaft, cleaning wheel shafts, the machine

 works

Remark:

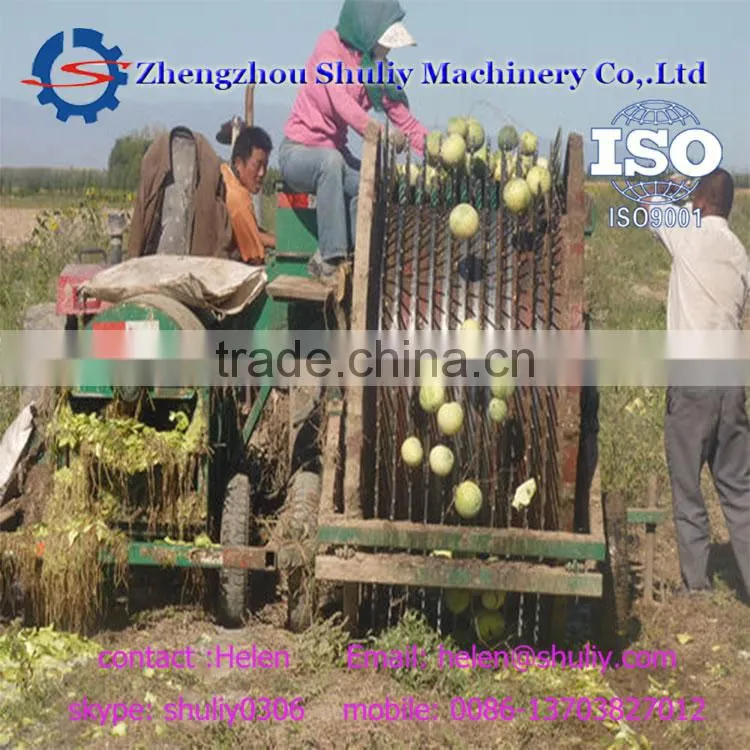

1.Before working, the watermelons should be gathered to 1 row by labor for working in order to improve the working speed. More watermelons, higher working efficiency

2.    This watermelon seeds extractor should be work in the flat field, but not ridge field.



The flow of pumpkin seeds extract

Feeding funnel--- Bucket hoisting machine---shelling----hulling machine by wind---seed sorting----Electrical Cabinets

Main technical parameter

Model

NGDG-500

Power

30-50HP

Capacity

300-500kg/h (seeds)

Seeds Breaking rate

1-2%

Weight

480kg

Dimension

2800*2200*2200mm

More detailed information, please contact Helen

Mobile/whatsapp/wechat: 008613703827012
