Wood pallet making machine,wood block machine

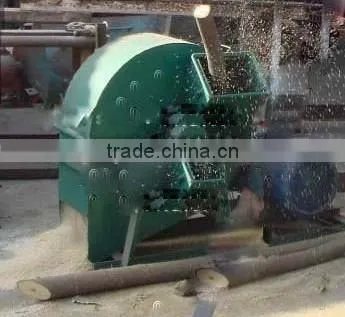

1. Wood Crusher for Log
For the crusher machine, no matter what size the material is, it can become as large as the sawdust .based on material. If the material is bigger than 5*5mm (e.g. branch), smaller than 200mm, there is necessary to crush the material into 5*5mm for further processing.
Crusher is suitable for crushing raw wood with size less than 200mm (diameter). After milled, the output size can reach diameter 3-5mm, which is suitable for further processing.
Model |
Power(kw) |
Capacity (t/d) |
|
SLW 420 |
11 |
3-4 |
|

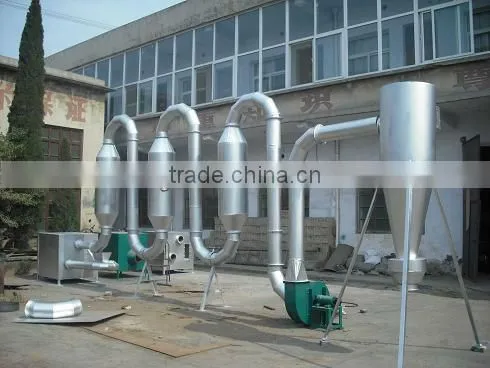

Wood sawdust dryer machine
If the material’s moisture is above 12%, the drying machine is needed to dry the moisture from 12% to 6%-8% before the material ( e.g. sawdust ) is put into Briquette Extruder machine. The productivity can be designed as the requirements from customers.
Dryer machine, also called pipeline type drier, adopting twice circulate heating system, is our newly developed advanced drying equipments, and show the features of automatic feeding, high hot airflow speed, fully mixing of airflow and materials, big drying strength, lower dust and bigger drying capacity. Moisture in the raw materials of less than 40% can be drying one time to meet the requirement for coal bar production, which greatly reduced the labor intensity compared with commonly used dryer machine.
Model No. |
SLD-2 |
Productivity (Kg/hour) |
600-800kg |
The diameter of the materials |
< 3mm& < 5mm |
Motor power |
5.5kw |
Weight |
1600kg |
Size of the machine |
15*1.0*2.0m |
Fob price |
|

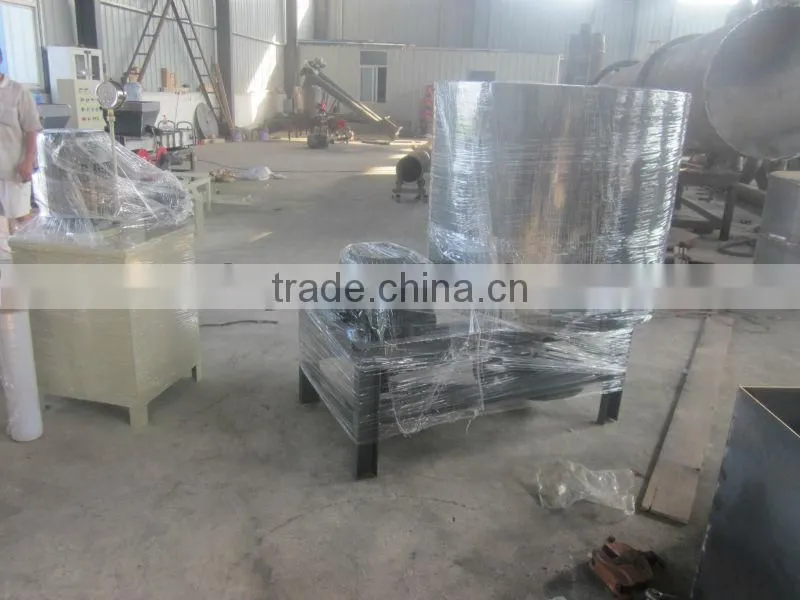

Glue mixer machine
Model |
Power(kw) |
Capacity |
Fob price |
SLMB-1 |
7.5 |
1800KG/H |
|

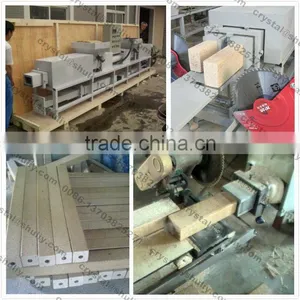

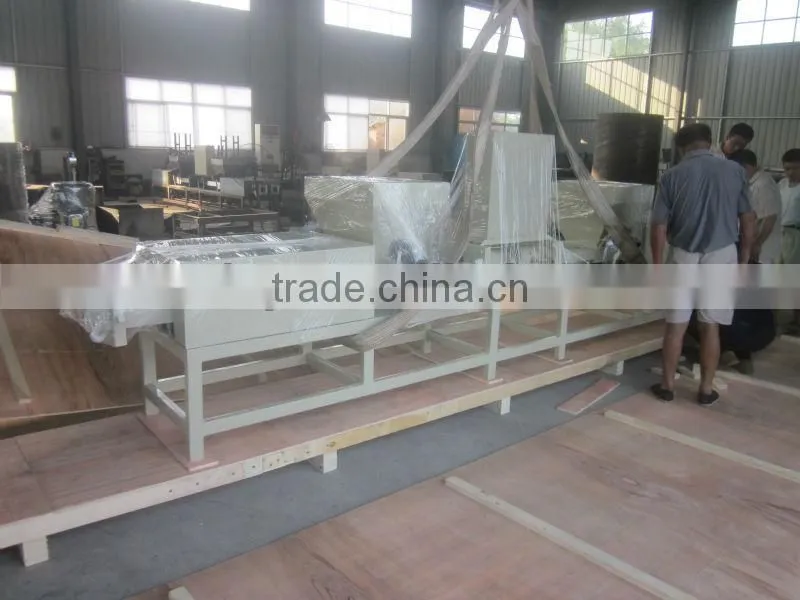

HOT PRESS wood block press machine
The material must be wood sawdust,the size must be 3-5 mm,the moisture must less than 12%.
diameter of pallet hole: 18-28mm
Inside combination Power: 1.76Mpa
vertical bear power: 1950N
horizontal bear power: 1600N
parameter
Model No. |
Power (kw) |
Size (mm) |
Capacity (m3/24h) |
Glue water amount(kg/m3) |
Density (kg/m3) |
Warm prosecution |
weight (kg) |
SLWB |
12-15 |
5000*760*1300 |
4-5 |
80-100 |
550-600 |
PID adjusts the merit accent to press the control |
1200 |
Block diameter |
75-140mm,make as customer request. |
||||||
